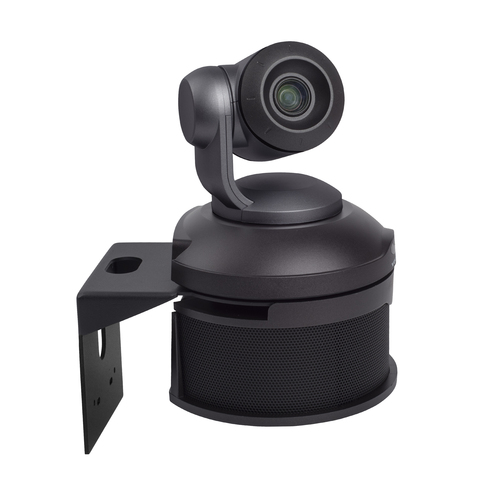

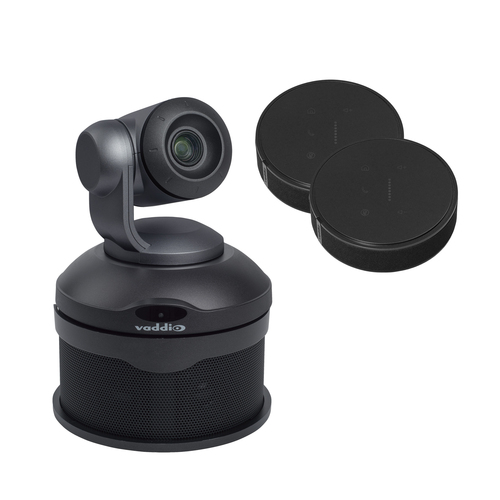

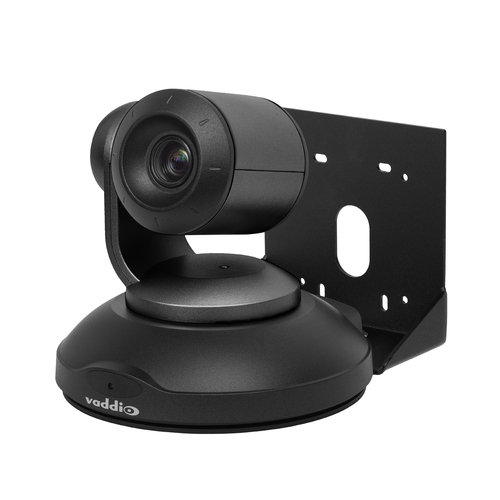

ConferenceSHOT AV HD Conference Room System
Model 999-99950-400BEAN 840077506414
43 specifications
- TypeConferencing system set
- Weight2.51 kg
- ColourBlack
- HD typeFull HD
- Megapixel (approx.)2.14 MP
- Number of microphones2
Overview
- Type
- Conferencing system set
- Weight
- 2.51 kg
- Colour
- Black
- HD type
- Full HD
- Megapixel (approx.)
- 2.14 MP
- Number of microphones
- 2
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- 999-99950-400B
- Part number
- 999-99950-400B
- EAN / UPC
- 840077506414
- Also known as
- Vaddio ConferenceSHOT AV HD Conference Room System
Specifications
43 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Product type | Conferencing system set |
| Product colour | Black |
| Pan range | -162 - 162° |
| Pan speed range | 0.35 - 90 °/sec |
| Tilt angle range | -30 - 90° |
| Tilt speed range | 0.35 - 90 °/sec |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Supported video modes | 1080p |
| Maximum frame rate | 60 fps |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.14 MP |
| Zoom capability | Yes |
| Optical zoom | 10x |
| Sensor type | CMOS |
| Image sensor size | 1/2.8" |
| Field of view (FOV) angle | 70° |
| Field of view (tele) | 7.6° |
| Field of view (wide) | 74° |
| Focus adjustment | Auto/Manual |
| Number of camera presets | 16 |
| PTZ motors | Stepper Motors |
| Minimum illumination | 0.4 lx |
| White balance | Auto, Manual, One push |
| Gain control type | Auto/Manual |
Microphone
| Specification | Value |
|---|---|
| Number of microphones | 2 |
Features
| Specification | Value |
|---|---|
| Control method | IR remote, Joystick, RS-232, Telnet, Web UI |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -5 - 60 °C |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, TAA |
| Certification | CE,FCC,TAA |
Weight & dimensions
| Specification | Value |
|---|---|
| Speaker dimensions (WxDxH) | 184 x 171 x 92 mm |
| Camera dimensions (WxDxH) | 155 x 145 x 163 mm |
| Weight | 2.51 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 711.2 mm |
| Package depth | 330.2 mm |
| Package height | 457.2 mm |
| Package weight | 7.71 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of microphones included | 2 |
| Speaker included | Yes |
| Microphone included | Yes |
