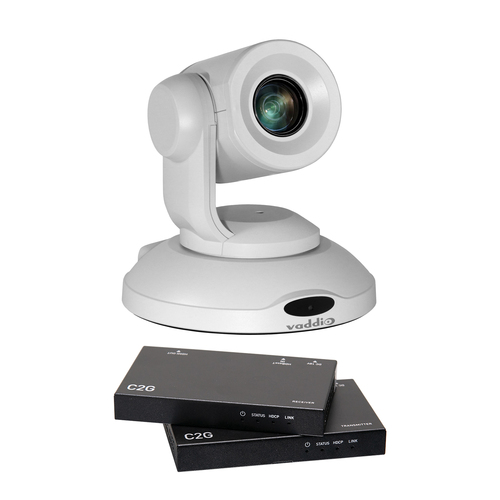

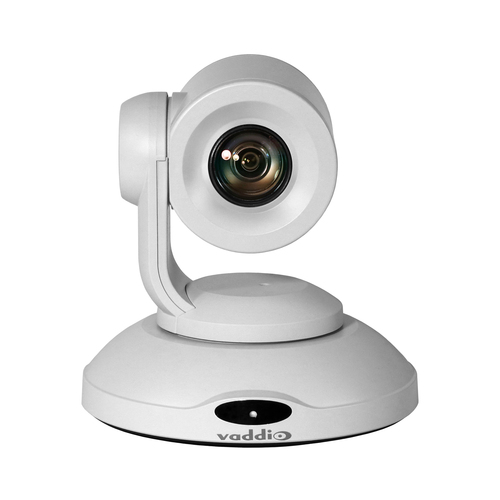

PrimeSHOT 20 HDMI with HDMI Extender
Model 999-30420-801WEAN 840077508647
58 specifications
- Weight1.54 kg
- ColourWhite
- HD typeFull HD
- Noise reductionYes
- HDMI ports quantity1
- Megapixel (approx.)2.38 MP
Overview
- Weight
- 1.54 kg
- Colour
- White
- HD type
- Full HD
- Noise reduction
- Yes
- HDMI ports quantity
- 1
- Megapixel (approx.)
- 2.38 MP
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- 999-30420-801W
- Part number
- 999-30420-801W
- EAN / UPC
- 840077508647
- Also known as
- Vaddio PrimeSHOT 20 HDMI with HDMI Extender
Specifications
58 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Product type | Personal video conferencing system |
| Product colour | White |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Pan range | -160 - 160° |
| Tilt angle range | -30 - 90° |
| Analog signal format system | NTSC, PAL |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Supported video modes | 360p, 480i, 480p, 576i, 720p, 1080i, 1080p |
| Maximum frame rate | 60 fps |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |

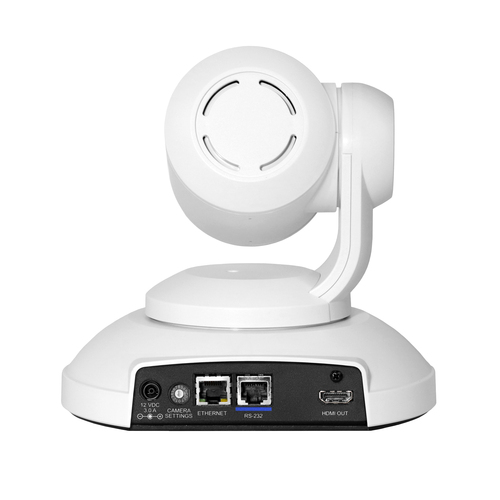

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| S-Video outputs quantity | 1 |
Interface module
| Specification | Value |
|---|---|
| Interface module HDMI ports quantity | 1 |
| Interface module HDMI input ports quantity | 1 |
| Interface module Ethernet LAN (RJ-45) ports | 2 |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Web-based management | Yes |
| Management protocols | Telnet |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.38 MP |
| Optical zoom | 20x |
| Effective sensor resolution | 2.12 MP |
| Sensor type | CMOS |
| Image sensor size | 1/3" |
| Wide end viewing angle (normal mode) | 55.4° |
| Tele end viewing angle (normal mode) | 2.9° |
| Focus adjustment | Auto/Manual |
| Remote control interface | IR Wireless |
| Aperture range (F-F) | 1.6 - 3.5 |
| Minimum illumination | 0.5 lx |
| White balance | Auto, Manual |
| Closest focusing distance (wide) | 0.5 m |
| Closest focusing distance (tele) | 1.5 m |
| Back Light Compensation (BLC) | Yes |
| Gain control type | Auto/Manual |
| Sync system | Internal |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC output voltage | 12 V |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, TAA |
| Certification | CE,FCC,TAA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180.3 mm |
| Depth | 165.1 mm |
| Height | 184.2 mm |
| Weight | 1.54 kg |
Packaging content
| Specification | Value |
|---|---|
| External interface module included | Yes |
| Cables included | AC |

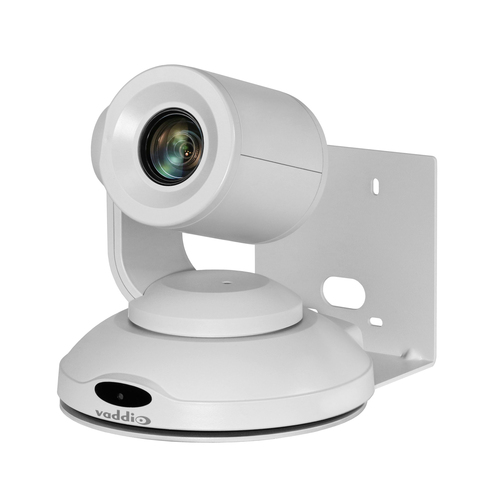

| Wall mounting kit | Yes |
| Camera included | Yes |
| Remote control included | Yes |
| User guide | Yes |
