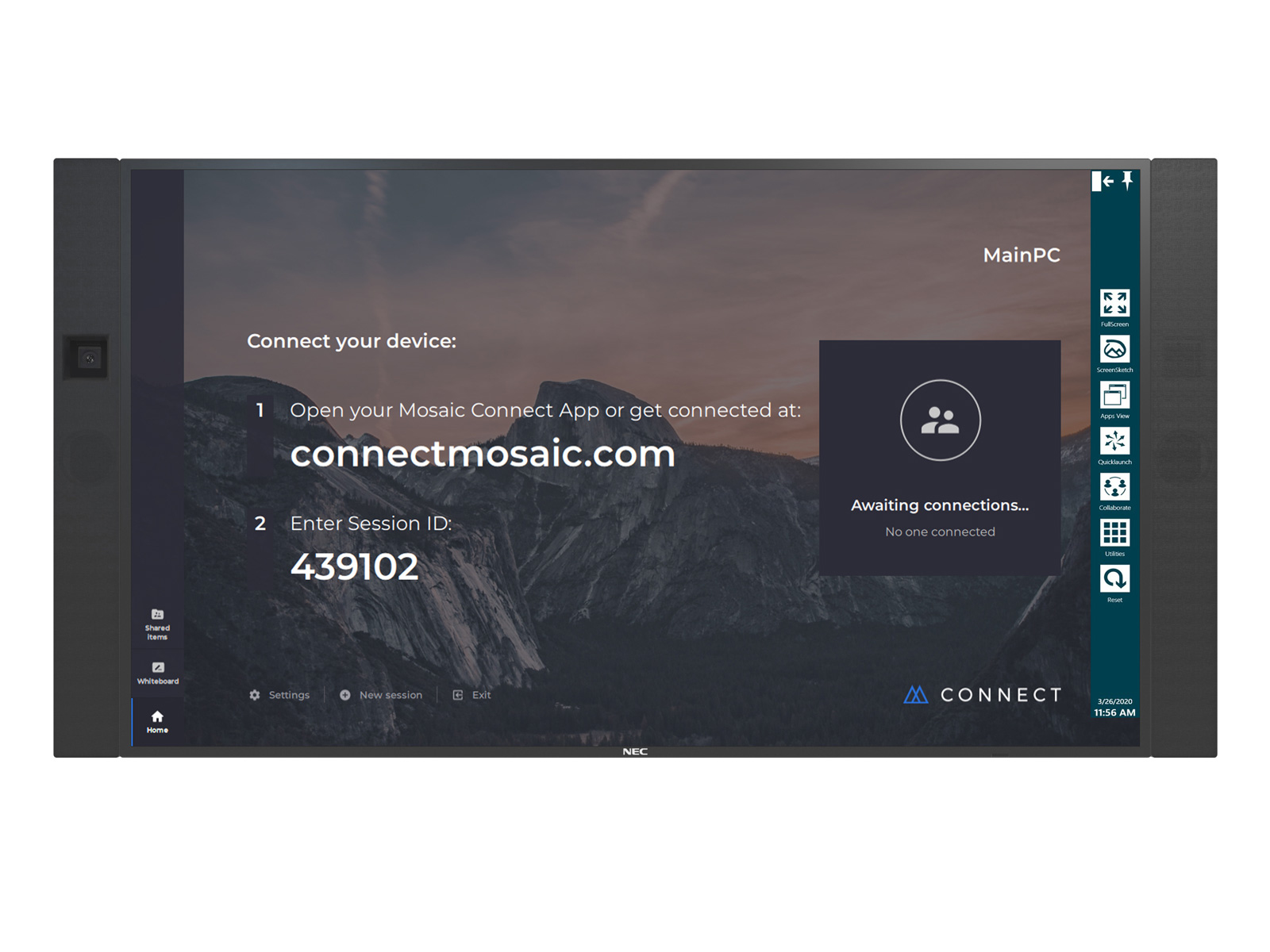

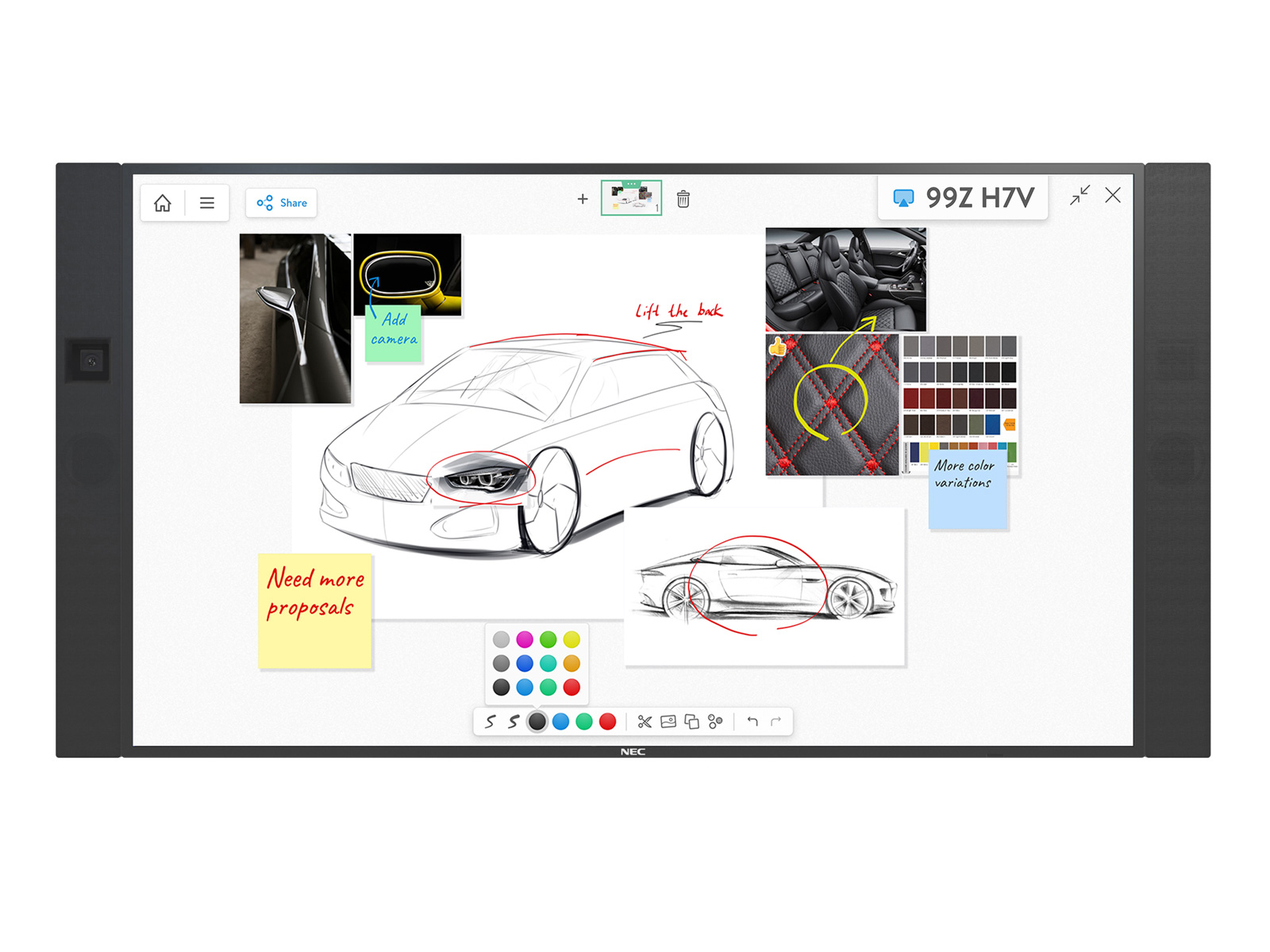

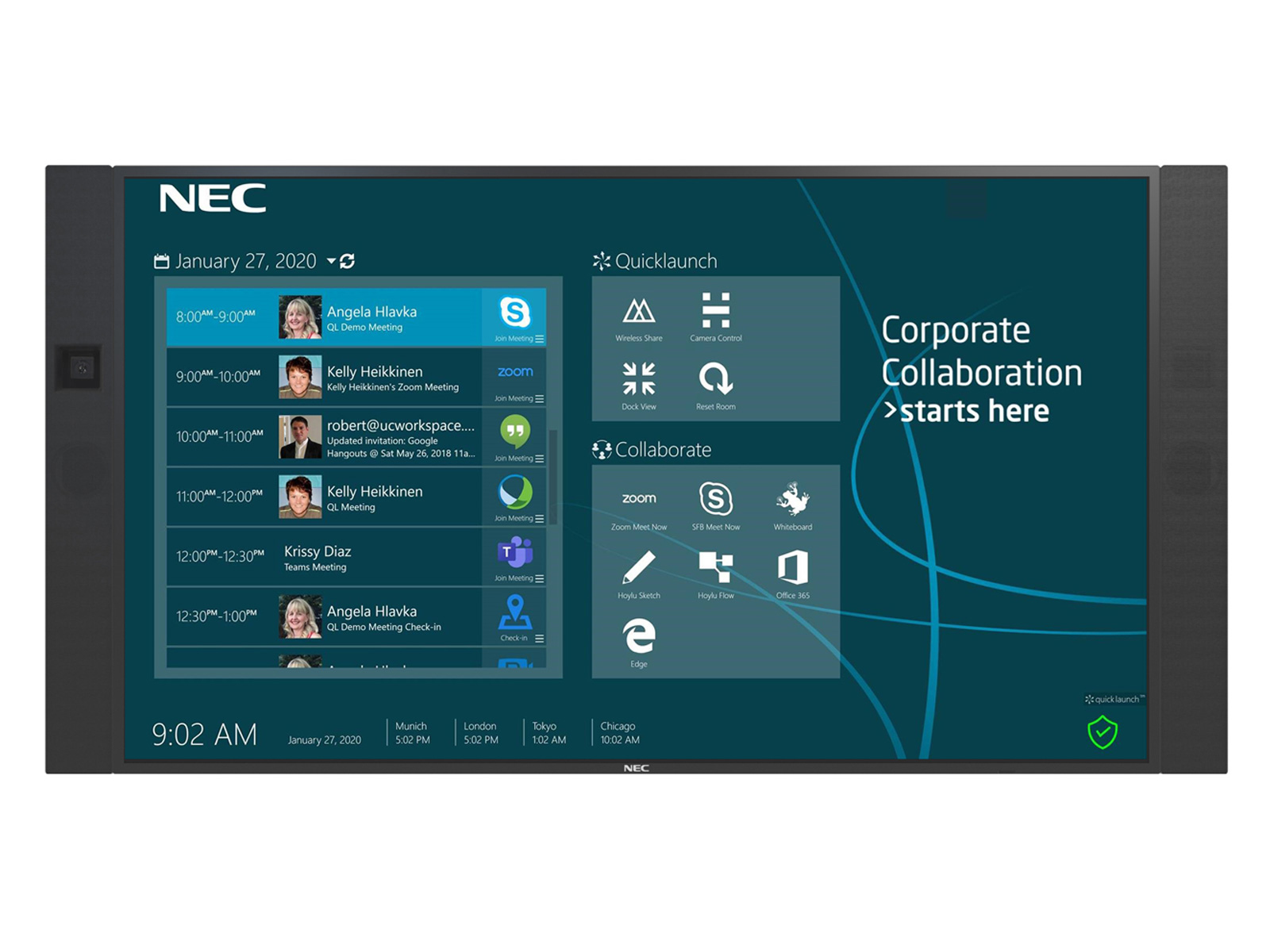

InfinityBoard 2.1 QL
Model InfinityBoard 2.1 QLPart no. 40001443EAN 5028695119918
53 specifications
- Display165.1 cm (65")
- Resolution3840 x 2160 pixels
- ProcessorIntel® Core™ i7
- Memory16 MB
- Storage256 GB
- TypeGroup video conferencing system
Overview
- Display
- 165.1 cm (65")
- Resolution
- 3840 x 2160 pixels
- Processor
- Intel® Core™ i7
- Memory
- 16 MB
- Storage
- 256 GB
- Type
- Group video conferencing system
- Brand
- NEC
- Category
- Video Conferencing System
- Model
- InfinityBoard 2.1 QL
- Part numbers
- 40001443, 40001445
- EAN / UPC
- 5028695119918, 5028695119932
- Also known as
- NEC InfinityBoard 2.1 QL video conferencing system Ethernet LAN Group video conferencing system
Specifications
53 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Product colour | Black |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 2160, 3840 x 2160, 4096 x 2160 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Frequency range | 70 - 15000 Hz |
| Line-out impedance | 8 Ω |
| RMS rated power | 40 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 MB |
| Internal memory type | DDR4 |
| Storage media type | SSD |
| Total storage capacity | 256 GB |
| Memory card slot(s) | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Line-out (speaker) | Yes |
| PC Audio in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Wi-Fi | Yes |
Camera
| Specification | Value |
|---|---|
| Digital zoom | 3x |
| Horizontal field of view | 120° |
| Vertical field of view | 90° |
| Diagonal field of view | 150° |
| 3D NR (Noise Reduction) | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 165.1 cm (65") |
| Display resolution | 3840 x 2160 pixels |
| Contrast ratio (typical) | 4000:1 |
| Touchscreen | Yes |
| Colour depth | 10 bit |
| Display brightness | 500 cd/m² |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Computer system
| Specification | Value |
|---|---|
| Processor family | Intel® Core™ i7 |
| VESA mounting | Yes |
| Operating system installed | Windows 10 Pro |
Features
| Specification | Value |
|---|---|
| Motion sensor | Yes |
| Motion sensor distance | 5 m |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 35 °C |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 199 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1721.3 mm |
| Depth | 86 mm |
| Height | 897 mm |
| Weight | 64.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1736 mm |
| Package depth | 1033 mm |
| Package height | 280 mm |
| Package weight | 71 kg |
