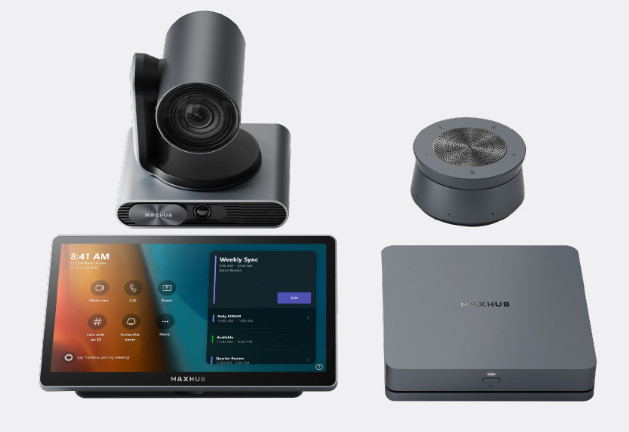

XT20-PS Kit
Model XT20-PS KitPart no. XT20-PS KITEAN 6927433607436
55 specifications
- Display29.5 cm (11.6")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i5
- Memory16000 MB
- Storage256 GB
- TypeGroup video conferencing system
Overview
- Display
- 29.5 cm (11.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
- Memory
- 16000 MB
- Storage
- 256 GB
- Type
- Group video conferencing system
- Brand
- MAXHUB
- Category
- Video Conferencing System
- Model
- XT20-PS Kit
- Part number
- XT20-PS KIT
- EAN / UPC
- 6927433607436
- Also known as
- MAXHUB XT20-PS Kit Microsoft Teams Rooms on Windows with PTZ Camera and Speakerphone Bundle
Specifications
55 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Product colour | Grey |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
Audio
| Specification | Value |
|---|---|
| Microphone pick-up range | 8 m |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16000 MB |
| Internal memory type | DDR4 |
| Total storage capacity | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 3 |
| USB 2.0 Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| AC (power) in | Yes |
Interface module
| Specification | Value |
|---|---|
| Interface module Ethernet LAN (RJ-45) ports | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8.42 MP |
| Camera type | Dual camera |
| Zoom capability | Yes |
| Optical zoom | 12x |
| Digital zoom | 16x |
| Horizontal field of view | 80° |
| Vertical field of view | 49.2° |
| Diagonal field of view | 90° |
Display
| Specification | Value |
|---|---|
| Display | LED |
| Display diagonal | 29.5 cm (11.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display brightness | 300 cd/m² |
| Anti-glare screen | Yes |
Microphone
| Specification | Value |
|---|---|
| Microphone frequency | 100 - 10000 Hz |
| Number of microphones | 8 |
Computer system
| Specification | Value |
|---|---|
| Computer system type | Mini PC |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-1240P |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power consumption (typical) | 120 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Microphone dimensions (WxHxD) | 122 x 65 x 122 mm |
| Microphone weight | 472 g |
| Interface module dimensions (W x D x H) | 196 x 40 x 196 mm |
| Interface module weight | 1.12 kg |
| Width | 278 mm |
| Depth | 82 mm |
| Height | 164 mm |
| Weight | 1.16 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 660 mm |
| Package depth | 325 mm |
| Package height | 360 mm |
| Package weight | 10.8 kg |
