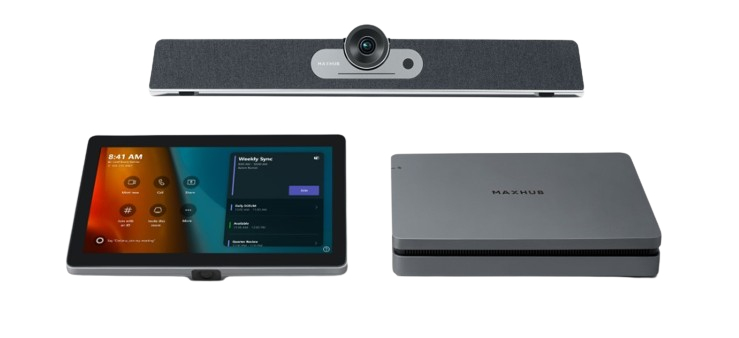

XT10-VB KIT
Model XT10-VB KITEAN 6927433605173
59 specifications
- Display25.6 cm (10.1")
- Resolution1920 x 1200 pixels
- ProcessorIntel® Core™ i3
- Memory8 MB
- Storage128 GB
- TypeGroup video conferencing system
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1920 x 1200 pixels
- Processor
- Intel® Core™ i3
- Memory
- 8 MB
- Storage
- 128 GB
- Type
- Group video conferencing system
- Brand
- MAXHUB
- Category
- Video Conferencing System
- Model
- XT10-VB KIT
- Part number
- XT10-VB KIT
- EAN / UPC
- 6927433605173
- Also known as
- MAXHUB XT10-VB KIT video conferencing system 12 MP Ethernet LAN Group video conferencing system
Specifications
59 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Number of cameras | 1 |
| Product colour | Black, Grey |
| Signal-to-Noise Ratio (SNR) | 75 dB |
Video
| Specification | Value |
|---|---|
| HD type | WUXGA |
| Video formats supported | H.264, MJPG, YUY2 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Frequency range | 150 - 18000 Hz |
| Noise reduction | Yes |
| RMS rated power | 11 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 MB |
| Internal memory type | DDR4 |
| Flash memory | 3200 MB |
| Storage media type | SSD |
| Total storage capacity | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |

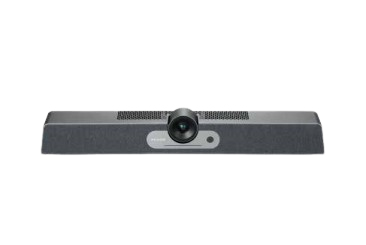

Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 12 MP |
| Zoom capability | Yes |
| Digital zoom | 5x |
| Image sensor size | 1/2.3" |
| Field of view (FOV) angle | 120° |
| Auto Focus (AF) object detection | People |

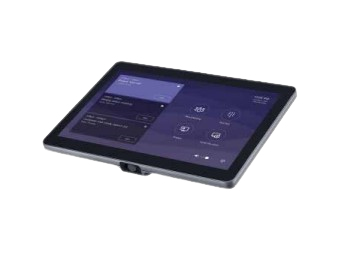

Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display brightness | 300 cd/m² |
| Anti-glare screen | Yes |
Microphone
| Specification | Value |
|---|---|
| Microphone frequency | 100 - 7500 Hz |
| Sound pressure level (max) | 80 dB |
| Number of microphone arrays | 6 |

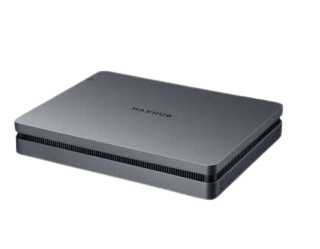

Computer system
| Specification | Value |
|---|---|
| Processor family | Intel® Core™ i3 |
| Processor model | i3-1220P |
| Operating system installed | Windows 11 IoT Enterprise SAC |
Features
| Specification | Value |
|---|---|
| Motion sensor | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 90 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 185 mm |
| Height | 41.5 mm |
| Weight | 1.36 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI, Power |
| HDMI cable length | 1.8 m |
| Quick start guide | Yes |
| Screws included | Yes |
