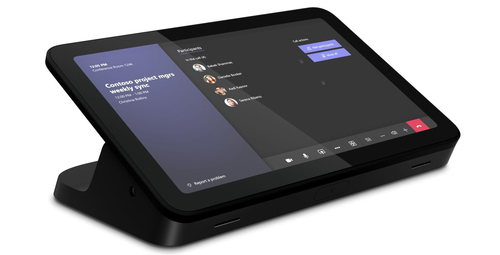

ThinkSmart Core + IP Controller Full Room Kit
Model ThinkSmart Core + IP Controller Full Room KitPart no. 12QN0004IXEAN 197528918235
63 specifications
- Display25.6 cm (10.1")
- ProcessorIntel® Core™ i5
- Memory16000 MB
- Storage256 GB
- OSWindows 11 IoT Enterprise GAC
- Weight1.1 kg
Overview
- Display
- 25.6 cm (10.1")
- Processor
- Intel® Core™ i5
- Memory
- 16000 MB
- Storage
- 256 GB
- OS
- Windows 11 IoT Enterprise GAC
- Weight
- 1.1 kg
- Brand
- Lenovo
- Category
- Video Conferencing System
- Model
- ThinkSmart Core + IP Controller Full Room Kit
- Part numbers
- 12QN0004IX, 12QR0004MB, 12QN0004UK, 12QN0004MB, 12QN0004GE, 12QN0004MT +1 more
- EAN / UPC
- 197528918235, 197528917016, 197528918075, 197528918082 +4 more
- Also known as
- Lenovo ThinkSmart Core + IP Controller Full Room Kit video conferencing system 8 MP Ethernet LAN
Specifications
63 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Product colour | Black |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| HD-Ready | Yes |
| Supported video modes | 1080p |
| Maximum frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 4 |
| Frequency range | 250 - 20000 Hz |
| Echo cancellation | Yes |
| Noise reduction | Yes |
| RMS rated power | 40 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16000 MB |
| Internal memory type | DDR4 |
| Storage media type | SSD |
| Total storage capacity | 256 GB |
| Memory card slot(s) | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wake-on-LAN ready | Yes |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8 MP |
| Effective sensor resolution | 8 MP |
| Sensor type | CMOS |
| Image sensor size | 1/1.8" |
| Horizontal field of view | 100° |
| Vertical field of view | 68° |
| Diagonal field of view | 125° |
Display
| Specification | Value |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Microphone
| Specification | Value |
|---|---|
| Number of microphones | 8 |
Computer system
| Specification | Value |
|---|---|
| Computer system type | Mini PC |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor model | i5-1145G7E |
| VESA mounting | Yes |
| Operating system installed | Windows 11 IoT Enterprise GAC |
| Windows operating systems supported | Yes |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 90 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Microphone weight | 220 g |
| Speaker dimensions (WxDxH) | 798 x 91.3 x 56.5 mm |
| Speaker weight | 3.6 kg |
| Camera dimensions (WxDxH) | 105 x 60.5 x 36 mm |
| Camera weight | 220 g |
| Width | 226 mm |
| Depth | 200 mm |
| Height | 37.5 mm |
| Weight | 1.1 kg |
