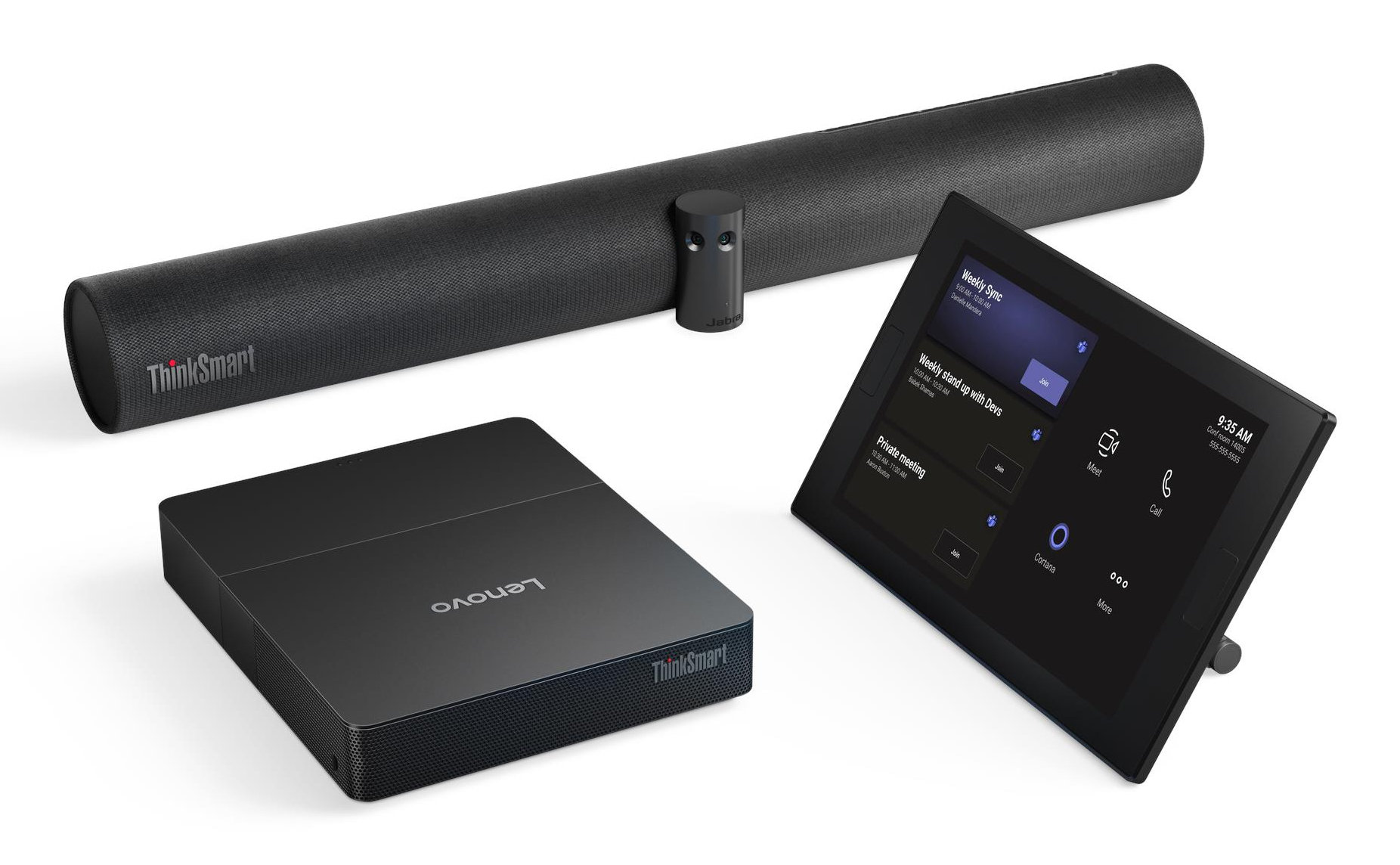

ThinkSmart Core Gen 2 FRK MTR
Model ThinkSmart Core Gen 2 FRK MTRPart no. 12WJ0008PBEAN 198155760389
50 specifications
- Display25.6 cm (10.1")
- Resolution1920 x 1200 pixels
- ProcessorIntel Core Ultra 5
- Memory16384 MB
- Storage256 GB
- OSWindows 11 IoT Enterprise GAC
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1920 x 1200 pixels
- Processor
- Intel Core Ultra 5
- Memory
- 16384 MB
- Storage
- 256 GB
- OS
- Windows 11 IoT Enterprise GAC
- Brand
- Lenovo
- Category
- Video Conferencing System
- Model
- ThinkSmart Core Gen 2 FRK MTR
- Part numbers
- 12WJ0008PB, 12WJ000KSP, 12WJ000LSP, 12WK0009LS, 12WJ000LMB, 12WJ000KMB
- EAN / UPC
- 198155760389, 199274184933, 199275871061, 198155689758 +2 more
- Also known as
- Lenovo ThinkSmart Core Gen 2 FRK MTR video conferencing system 13 MP Ethernet LAN
Specifications
50 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Product colour | Black |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 4 |
| Frequency range | 80 - 20000 Hz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16384 MB |
| Internal memory type | DDR5 |
| Storage media type | SSD |
| Total storage capacity | 256 GB |
| Memory card slot(s) | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| HDMI version | 2.1 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 13 MP |
| Camera type | Triple camera |
| Horizontal field of view | 180° |
| Vertical field of view | 54° |
Display
| Specification | Value |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1920 x 1200 pixels |
| Contrast ratio (typical) | 16:10 |
| Touchscreen | Yes |
| Display brightness | 340 cd/m² |
| Anti-glare screen | Yes |
Microphone
| Specification | Value |
|---|---|
| Microphone frequency | 100 - 8000 Hz |
| Number of microphones | 8 |
Computer system
| Specification | Value |
|---|---|
| Computer system type | Mini PC |
| Processor family | Intel Core Ultra 5 |
| Processor model | 135H |
| Operating system installed | Windows 11 IoT Enterprise GAC |
| Windows operating systems supported | Yes |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Power consumption (max) | 170 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 220 mm |
| Height | 38 mm |
| Weight | 1.01 kg |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | External Adapter Cage + Removable Cable Management Box + USB-C to USB-C 3M Active Optical Cable + VESA Mount Bracket |
