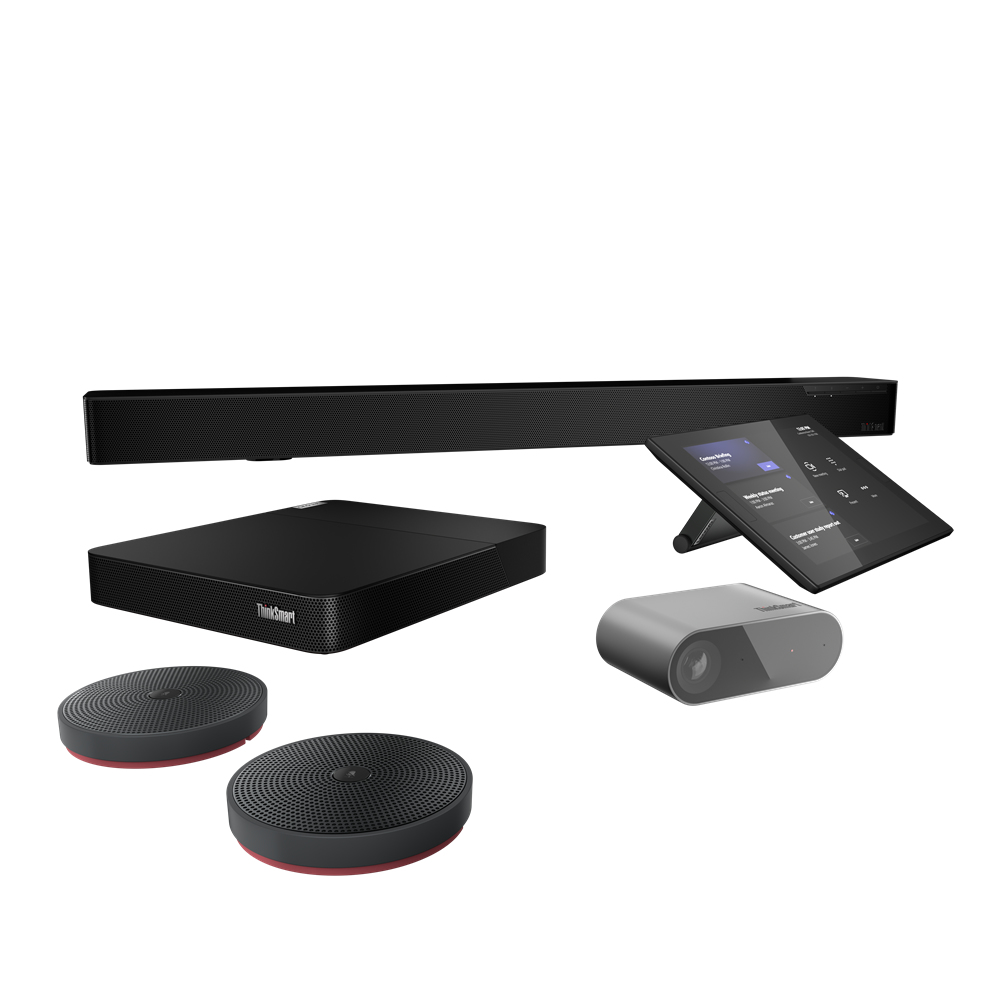

ThinkSmart Core Full Room Kit
Model ThinkSmart Core Full Room KitPart no. 11S30008ILEAN 196119605103
67 specifications
- Display25.6 cm (10.1")
- Resolution1280 x 800 pixels
- ProcessorIntel® Core™ i5
- Memory8192 MB
- Storage256 GB
- TypeGroup video conferencing system
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1280 x 800 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8192 MB
- Storage
- 256 GB
- Type
- Group video conferencing system
- Brand
- Lenovo
- Category
- Video Conferencing System
- Model
- ThinkSmart Core Full Room Kit
- Part numbers
- 11S30008IL, 11S30003MZ, 11S30003UK, 11S50003UK, 11S30003US, 11S30003MT +34 more
- EAN / UPC
- 196119605103, 195891704998, 195891705070, 195891706206 +46 more
- Also known as
- Lenovo ThinkSmart Core Full Room Kit video conferencing system 8 MP Ethernet LAN Group video conferencing system
Specifications
67 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Product colour | Black, Grey |
| Wall mountable | Yes |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| Supported video modes | 1080p |
| Maximum frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Frequency range | 250 - 20000 Hz |
| Microphone pick-up range | 1 m |
| RMS rated power | 40 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8192 MB |
| Internal memory type | DDR4 |
| Storage media type | SSD |
| Total storage capacity | 256 GB |
| Memory card slot(s) | No |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB4 Gen 2x2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wake-on-LAN ready | Yes |
| Password protection | Yes |
| Password protection type | Power on, Supervisor, HDD |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8 MP |
| Effective sensor resolution | 8 MP |
| Sensor type | CMOS |
| Image sensor size | 1/1.8" |
| Horizontal field of view | 100° |
| Vertical field of view | 68° |
| Diagonal field of view | 125° |
Display
| Specification | Value |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display brightness | 340 cd/m² |
| Anti-glare screen | Yes |
Microphone
| Specification | Value |
|---|---|
| Microphone colour | Black |
| Microphone direction type | Omnidirectional |
Computer system
| Specification | Value |
|---|---|
| Computer system type | Mini PC |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor model | i5-1145G7E |
| VESA mounting | Yes |
| Operating system installed | Windows 10 IoT Enterprise SAC |
| Windows operating systems supported | Yes |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Microphone dimensions (WxHxD) | 100 x 20 x 100 mm |
| Microphone weight | 220 g |
| Remote control dimensions (W x H x D) | 265.5 x 168.1 x 13 mm |
| Remote control weight | 753.8 g |
| Speaker dimensions (WxDxH) | 798 x 91.3 x 56.5 mm |
| Speaker weight | 3.6 kg |
| Camera dimensions (WxDxH) | 105 x 60.5 x 36 mm |
| Camera weight | 220 g |
| Width | 226 mm |
| Depth | 200 mm |
| Height | 37.5 mm |
| Weight | 1.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Speaker included | Yes |
