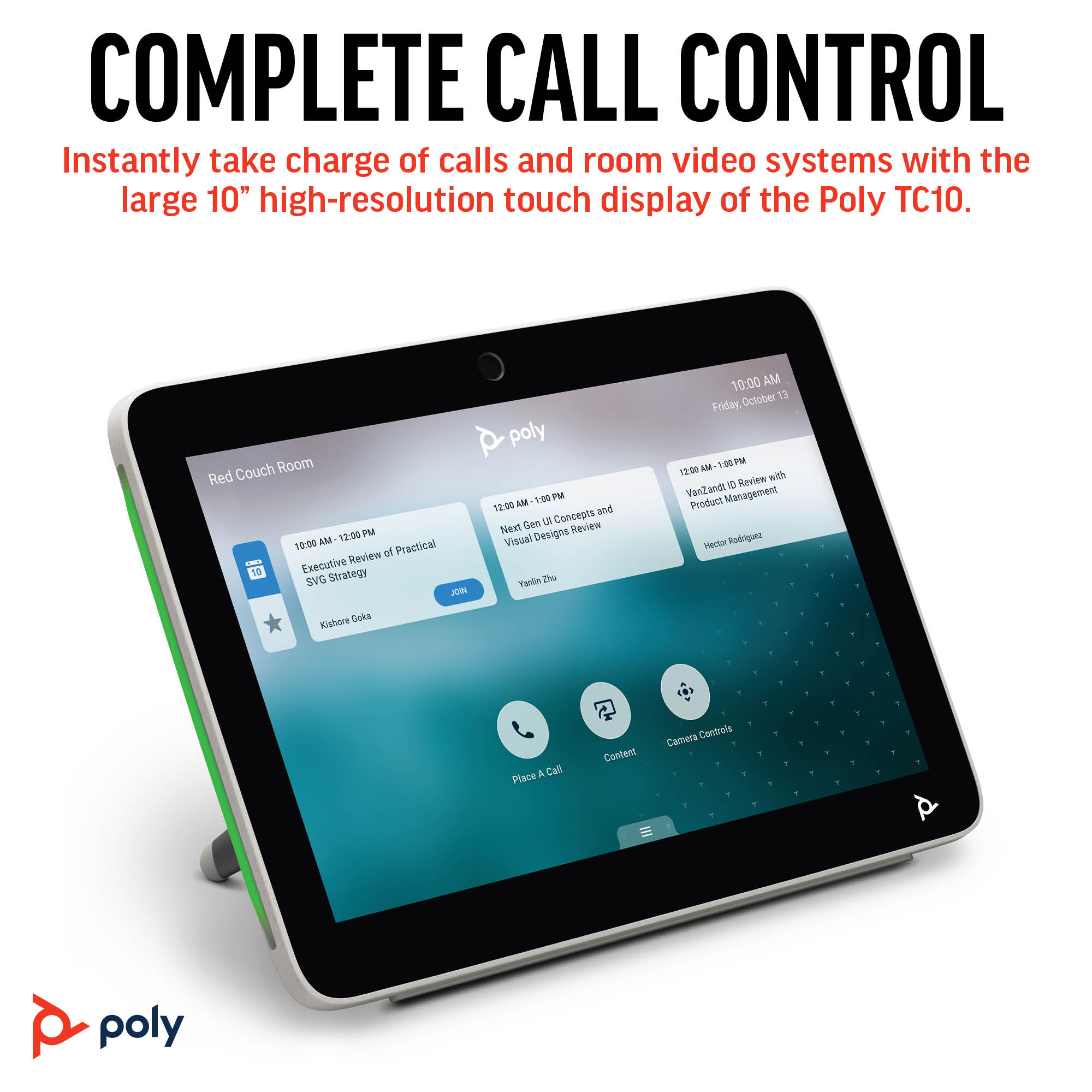

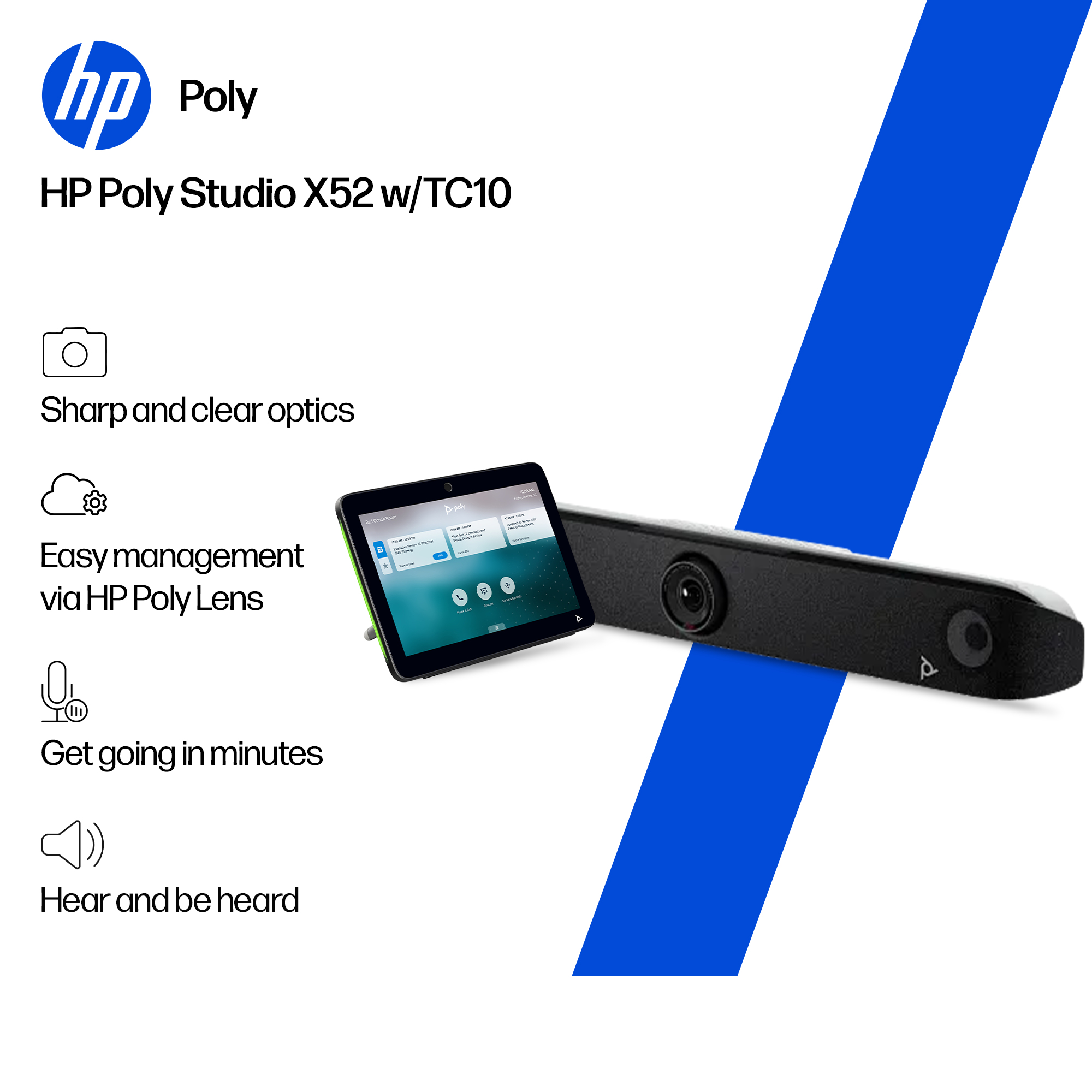

Studio X52 All-In-One Video Bar with TC10 Controller Kit
Model Studio X52 All-In-One Video Bar with TC10 Controller KitPart no. 8D8L1AAEAN 198122834556
51 specifications
- TypeGroup video conferencing system
- OSAndroid
- Weight2.54 kg
- ColourBlack
- HD type4K Ultra HD
- Built-in speaker(s)Yes
Overview
- Type
- Group video conferencing system
- OS
- Android
- Weight
- 2.54 kg
- Colour
- Black
- HD type
- 4K Ultra HD
- Built-in speaker(s)
- Yes
- Brand
- HP Poly
- Category
- Video Conferencing System
- Model
- Studio X52 All-In-One Video Bar with TC10 Controller Kit
- Part number
- 8D8L1AA
- EAN / UPC
- 198122834556, 196548564293, 196548564354, 196548564613 +10 more
- Also known as
- HP Poly Studio X52 All-In-One Video Bar with TC10 Controller Kit
Specifications
51 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Number of cameras | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Product colour | Black |
| Wall mountable | Yes |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| Video formats supported | AVC, H.239, H.264 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Audio system full duplex | Yes |
| Echo cancellation | Yes |
| RMS rated power | 20 W |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 20 MP |
| Zoom capability | Yes |
| Digital zoom | 5x |
| Field of view (FOV) angle | 95° |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Microphone
| Specification | Value |
|---|---|
| Microphone sensitivity | 79 dB |
Technical details
| Specification | Value |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://kaas.hpcloud.hp.com/pdf-public/pdf_11006260_en-US-1.pdf |
| Total carbon footprint (kg of CO2e) | 90 |
Features
| Specification | Value |
|---|---|
| Telepresence | Yes |
| Cable lock slot | Yes |
Computer system
| Specification | Value |
|---|---|
| Operating system installed | Android |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross weight | 357 kg |
| UNSPSC-code | 45111902 |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 65 BTU/h |
| Operating relative humidity (H-H) | 15 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
Power
| Specification | Value |
|---|---|
| AC input voltage | 120 V |
| AC input frequency | 60 Hz |
| Power consumption (max) | 25 W |
| Power consumption (typical) | 8 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 769.5 mm |
| Depth | 103 mm |
| Height | 115.2 mm |
| Weight | 2.54 kg |
