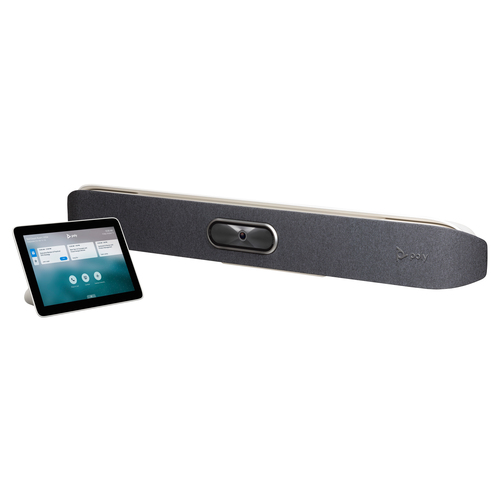

Studio X50 All-In-One Video Bar with TC8 Controller Kit
Model Studio X50 All-In-One Video Bar with TC8 Controller KitPart no. 83Z47AAEAN 198122404162
51 specifications
- TypeVideo collaboration bar
- ColourBlack, Grey
- HD type4K Ultra HD
- Built-in speaker(s)Yes
- HDMI ports quantity3
- Number of microphones2
Overview
- Type
- Video collaboration bar
- Colour
- Black, Grey
- HD type
- 4K Ultra HD
- Built-in speaker(s)
- Yes
- HDMI ports quantity
- 3
- Number of microphones
- 2
- Brand
- HP Poly
- Category
- Video Conferencing System
- Model
- Studio X50 All-In-One Video Bar with TC8 Controller Kit
- Part number
- 83Z47AA
- EAN / UPC
- 198122404162, 197497448870, 197497448887, 197497448894 +7 more
- Also known as
- HP Poly Studio X50 All-In-One Video Bar with TC8 Controller Kit
Specifications
51 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Product type | Video collaboration bar |
| Number of persons | 1 person(s) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Product colour | Black, Grey |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Supported video modes | 2160p |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1400 x 1050 (SXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160 |
| Maximum frame rate | 60 fps |
| Video formats supported | AVC, H.239, H.264, H.265 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Microphone pick-up range | 7.62 m |
| RMS rated power | 20 W |
| Voice codecs | G.711, G.722, G.722.1, G.728, G.729A |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| HDMI version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Line-in | Yes |
| Line-out | Yes |
| Microphone in | Yes |
| PC Audio in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Camera
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 5x |
| Horizontal field of view | 110° |
| Diagonal field of view | 121° |
Microphone
| Specification | Value |
|---|---|
| Number of microphones | 2 |
Technical details
| Specification | Value |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://kaas.hpcloud.hp.com/pdf-public/pdf_11006260_en-US-1.pdf |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China, Taiwan |
| Pallet gross weight | 357 kg |
| UNSPSC-code | 45111902 |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 65 BTU/h |
| Operating relative humidity (H-H) | 15 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
Packaging content
| Specification | Value |
|---|---|
| Camera control unit included | Yes |
| Cables included | HDMI, LAN (RJ-45) |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Camera included | Yes |
