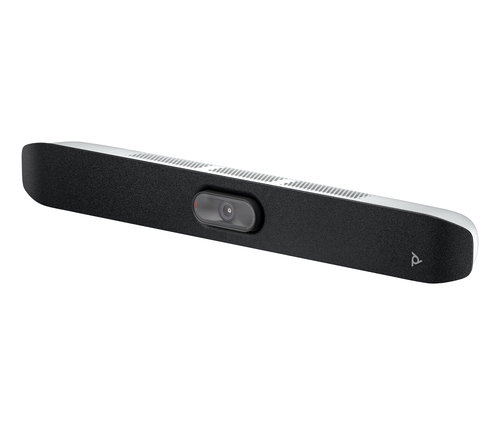

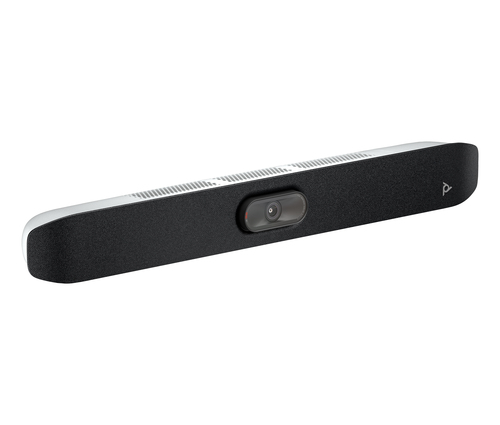

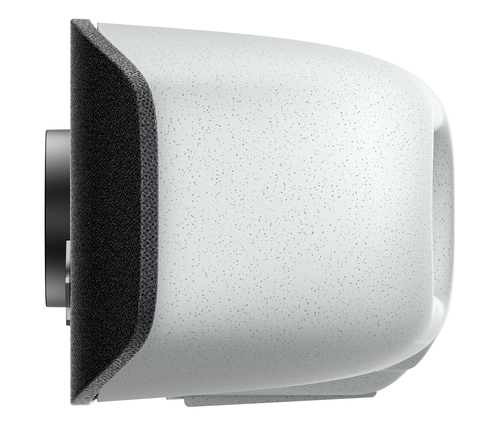

Studio X32 All-In-One Video Bar No Power Supply
Model A3SV5AA#KIT
60 specifications
- TypeVideo collaboration bar
- Weight1.14 kg
- ColourBlack
- HD type4K Ultra HD
- Built-in speaker(s)Yes
- HDMI input ports quantity1
Overview
- Type
- Video collaboration bar
- Weight
- 1.14 kg
- Colour
- Black
- HD type
- 4K Ultra HD
- Built-in speaker(s)
- Yes
- HDMI input ports quantity
- 1
- Brand
- HP Poly
- Category
- Video Conferencing System
- Model
- A3SV5AA#KIT
- Part number
- A3SV5AA#KIT
- Also known as
- HP Poly Studio X32 All-In-One Video Bar No Power Supply
Specifications
60 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Product type | Video collaboration bar |
| Number of cameras | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Product colour | Black |
| Signal-to-Noise Ratio (SNR) | 63 dB |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Total megapixels | 20 MP |
| Supported video modes | 720p, 1080p |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1600 x 1200, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Maximum frame rate | 30 fps |
| Video formats supported | AVC, H.264, H.265 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Automatic gain control | Yes |
| RMS rated power | 10 W |
| Voice codecs | G.711, G.719, G.722, G.722.1, G.728, G.729A |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| HDMI version | 1.4/2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Networking standards | IEEE 802.3bt |
| Security algorithms | 128-bit AES, 256-bit AES, TLS |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 20 MP |
| Zoom capability | Yes |
| Digital zoom | 5x |
| Horizontal field of view | 120° |
| Diagonal field of view | 132° |
Microphone
| Specification | Value |
|---|---|
| Microphone sensitivity | -26 dB |
| Number of microphones | 4 |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Mexico |
| Pallet gross weight | 370 kg |
| UNSPSC-code | 45111902 |
Operational conditions
| Specification | Value |
|---|---|
| Heat dissipation | 55 BTU/h |
| Operating relative humidity (H-H) | 15 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| DC input voltage | 42.5 - 57 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 576.8 mm |
| Depth | 66.1 mm |
| Height | 74.8 mm |
| Weight | 1.14 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 118 mm |
| Package depth | 194 mm |
| Package height | 667 mm |
| Package weight | 3 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI, LAN (RJ-45) |
| AC adapter included | Yes |
| Mounting kit | Yes |
