ClickShare Hub Pro
Model ClickShare Hub ProPart no. R9861710EUB2EAN 5415334054790
44 specifications
- Noise25 dB
- Weight720 g
- ColourBlack
- BluetoothYes
- HD type5K Ultra HD
- HDMI output ports quantity2
Overview
- Noise
- 25 dB
- Weight
- 720 g
- Colour
- Black
- Bluetooth
- Yes
- HD type
- 5K Ultra HD
- HDMI output ports quantity
- 2
- Brand
- Barco
- Category
- Video Conferencing System
- Model
- ClickShare Hub Pro
- Part numbers
- R9861710EUB2, R9861710USB2
- EAN / UPC
- 5415334054790, 8717472603074
- Also known as
- Barco ClickShare Hub Pro video conferencing system Ethernet LAN Video conferencing service management system
Specifications
44 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Product type | Video conferencing service management system |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Product colour | Black |
| Noise level | 25 dB |
Video
| Specification | Value |
|---|---|
| HD type | 5K Ultra HD |
| Maximum video resolution | 5120 x 2160 pixels |

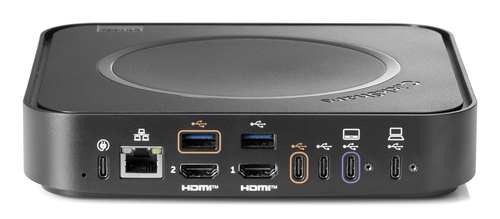

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI output ports quantity | 2 |
| HDMI version | 2.0 |
| USB 2.0 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPort version | 1.4 |
Buttons
| Specification | Value |
|---|---|
| Presentation button included | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Networking standards | IEEE 802.15.1 |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Maximum operating distance | 30 m |
Computer system
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Mac operating systems supported | Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power consumption (typical) | 160 W |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 180 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 180 mm |
| Height | 37 mm |
| Weight | 720 g |
| Receiver dimensions (WxDxH) | 63 x 161.3 x 16 mm |
Packaging content
| Specification | Value |
|---|---|
| Control panel included | No |

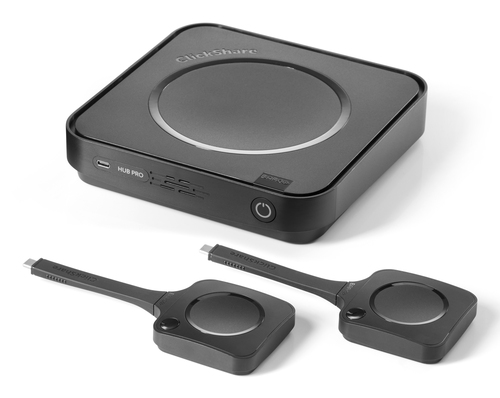

| Packaging content | ClickShare Hub Pro Base Unit, 2 ClickShare Hub Button 5th Gen, Mounting disc, Safety manual, Quick setup guide |
