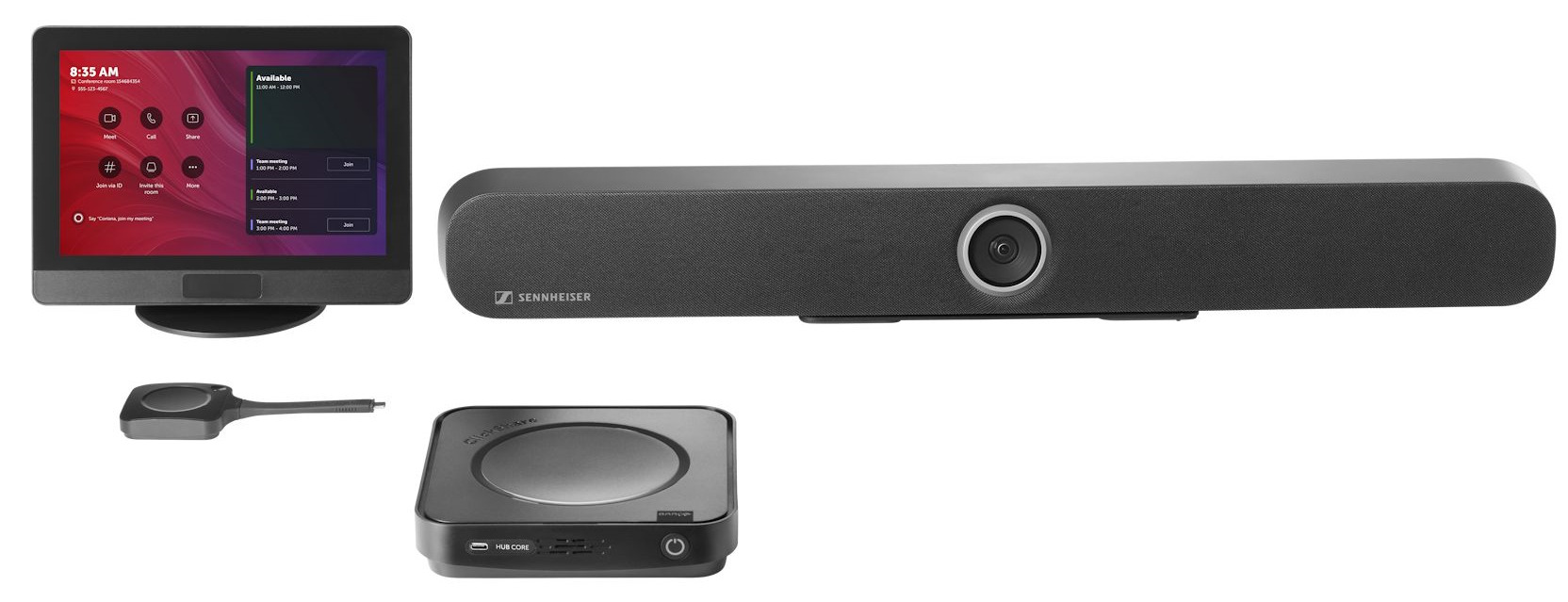

ClickShare Hub Core & TeamConnect Bar M
Model ClickShare Hub Core & TeamConnect Bar MPart no. BARSENMTRBUNCM
70 specifications
- Display25.6 cm (10.1")
- Resolution1280 x 800 pixels
- Noise25 dB
- TypeConferencing system set
- OSAndroid
- Weight720 g
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1280 x 800 pixels
- Noise
- 25 dB
- Type
- Conferencing system set
- OS
- Android
- Weight
- 720 g
- Brand
- Barco
- Category
- Video Conferencing System
- Model
- ClickShare Hub Core & TeamConnect Bar M
- Part number
- BARSENMTRBUNCM
- Also known as
- Barco ClickShare Hub Core & TeamConnect Bar M video conferencing system Ethernet LAN Conferencing system set
Specifications
70 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Product type | Conferencing system set |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Product colour | Black |
| Noise level | 25 dB |
Video
| Specification | Value |
|---|---|
| HD type | 5K Ultra HD |
| Maximum video resolution | 5120 x 2160 pixels |
| Supported graphics resolutions | 1280 x 800 (WXGA), 5120 x 2160 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Frequency range | 100 - 14500 Hz |

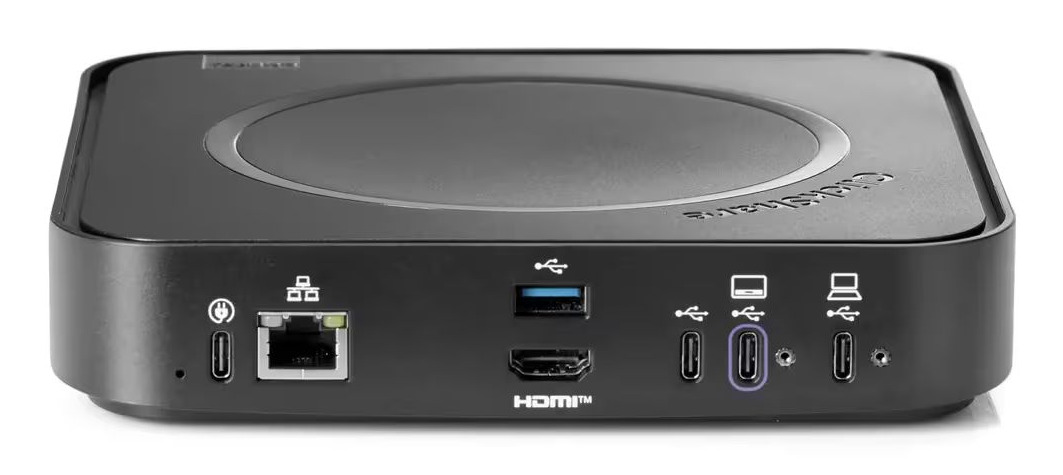

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI output ports quantity | 1 |
| HDMI version | 2.0 |
| USB 2.0 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPort version | 1.4 |
Buttons
| Specification | Value |
|---|---|
| Presentation button included | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Networking standards | IEEE 802.15.1 |
Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Zoom capability | Yes |
| Digital zoom | 1.5x |
| Camera resolution | 3840 x 2160 pixels |
| Horizontal field of view | 115° |
| Diagonal field of view | 120° |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | Yes |
| Touchscreen type | Projected Capacitive (PCAP) |
| Display brightness | 300 cd/m² |
| Viewing angle, horizontal | 80° |
| Viewing angle, vertical | 80° |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Maximum operating distance | 30 m |
Computer system
| Specification | Value |
|---|---|
| Operating system installed | Android |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterp |
| Mac operating systems supported | Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Current | 1.4 A |
| DC output voltage | 20 V |
| DC output current | 5 A |
| Power consumption (max) | 140 W |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 20 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Camera dimensions (WxDxH) | 750 x 71 x 95 mm |
| Camera weight | 2.5 kg |
| Monitor dimensions (WxDxH) | 187.9 x 76.9 x 254.5 mm |
| Monitor weight | 820 g |
| Width | 180 mm |
| Depth | 180 mm |
| Height | 37 mm |
| Weight | 720 g |
| Receiver dimensions (WxDxH) | 63 x 161.3 x 16 mm |
Packaging content
| Specification | Value |
|---|---|
| Monitor included | Yes |
| Camera included | Yes |
