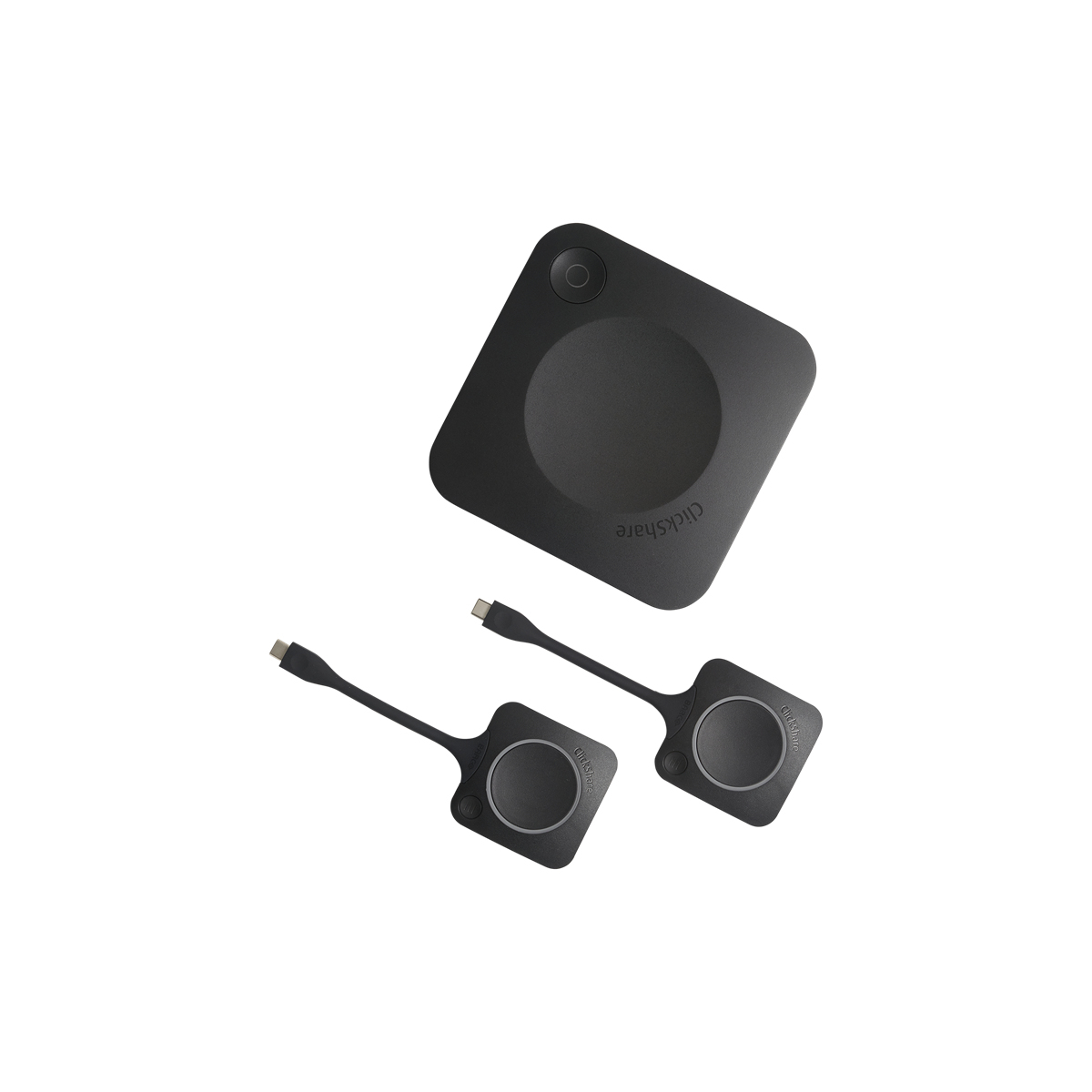

ClickShare CX-30
Model ClickShare CX-30Part no. CX-30STUDIO-KTOEAN 5056489755646
61 specifications
- Noise30 dB
- TypeGroup video conferencing system
- ColourBlack
- HD type4K Ultra HD
- Built-in speaker(s)Yes
- USB connector typeUSB Type-C
Overview
- Noise
- 30 dB
- Type
- Group video conferencing system
- Colour
- Black
- HD type
- 4K Ultra HD
- Built-in speaker(s)
- Yes
- USB connector type
- USB Type-C
- Brand
- Barco
- Category
- Video Conferencing System
- Model
- ClickShare CX-30
- Part number
- CX-30STUDIO-KTO
- EAN / UPC
- 5056489755646
- Also known as
- Barco ClickShare CX-30 video conferencing system 32 person(s) Ethernet LAN Group video conferencing system
Specifications
61 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Number of persons | 32 person(s) |
| Number of cameras | 1 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Product colour | Black |
| Noise level | 30 dB |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 3840 x 2160 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Frequency range | 120 - 16000 Hz |
| Microphone pick-up range | 15 m |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| DC-in jack | Yes |
| Line-in | Yes |
| Microphone in | Yes |
Interface module
| Specification | Value |
|---|---|
| Interface module HDMI ports quantity | 1 |
| Interface module HDMI output ports quantity | 1 |
| Interface module USB 2.0 ports quantity | 1 |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Networking standards | IEEE 802.1x |
| Security algorithms | WPA2-PSK |
Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Zoom capability | Yes |
| Optical zoom | 5x |
| Sensor type | CMOS |
| Field of view (FOV) angle | 120° |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Computer system
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Mobile operating systems supported | Android 11.0, Android 12.0, iOS 14, iOS 14.5, iOS 15 |
System requirements
| Specification | Value |
|---|---|
| Minimum system requirements | Intel i3 dual-core processor / 8GB RAM / OS: Windows 10 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50 - 60 Hz |
| DC output voltage | 12 V |
| DC output current | 5 A |
| Power consumption (max) | 24 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Interface module dimensions (W x D x H) | 135 x 135 x 34 mm |
| Interface module weight | 900 g |
| Remote control dimensions (W x H x D) | 40 x 19 x 183 mm |
| Camera dimensions (WxDxH) | 700 x 70 x 105 mm |
| Camera weight | 2.34 kg |
Packaging content
| Specification | Value |
|---|---|
| External interface module included | Yes |
| Cables included | USB |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Camera included | Yes |
| Manual | Yes |
| Microphone included | Yes |
