ClickShare Control Panel
Model ClickShare Control PanelPart no. R9861720US
33 specifications
- Display25.6 cm (10.1")
- Resolution1280 x 800 pixels
- Weight820 g
- ColourBlack
- HD typeWXGA
- USB 2.0 Type-C ports quantity1
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1280 x 800 pixels
- Weight
- 820 g
- Colour
- Black
- HD type
- WXGA
- USB 2.0 Type-C ports quantity
- 1
- Brand
- Barco
- Category
- Video Conferencing System
- Model
- ClickShare Control Panel
- Part number
- R9861720US
- Also known as
- Barco ClickShare Control Panel video conferencing system Video conferencing service management system
Specifications
33 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Product type | Video conferencing service management system |
| Product colour | Black |
Video
| Specification | Value |
|---|---|
| HD type | WXGA |
| Maximum video resolution | 1280 x 800 pixels |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display brightness | 300 cd/m² |
| Viewing angle, horizontal | 80° |
| Viewing angle, vertical | 80° |
| Anti-glare screen | Yes |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Power
| Specification | Value |
|---|---|
| Power source type | USB |
| Power consumption (typical) | 7.3 W |
| USB Power Delivery (USB PD) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 187.9 mm |
| Depth | 76.9 mm |
| Height | 254.5 mm |
| Weight | 820 g |
Packaging content
| Specification | Value |
|---|---|
| Control panel included | Yes |

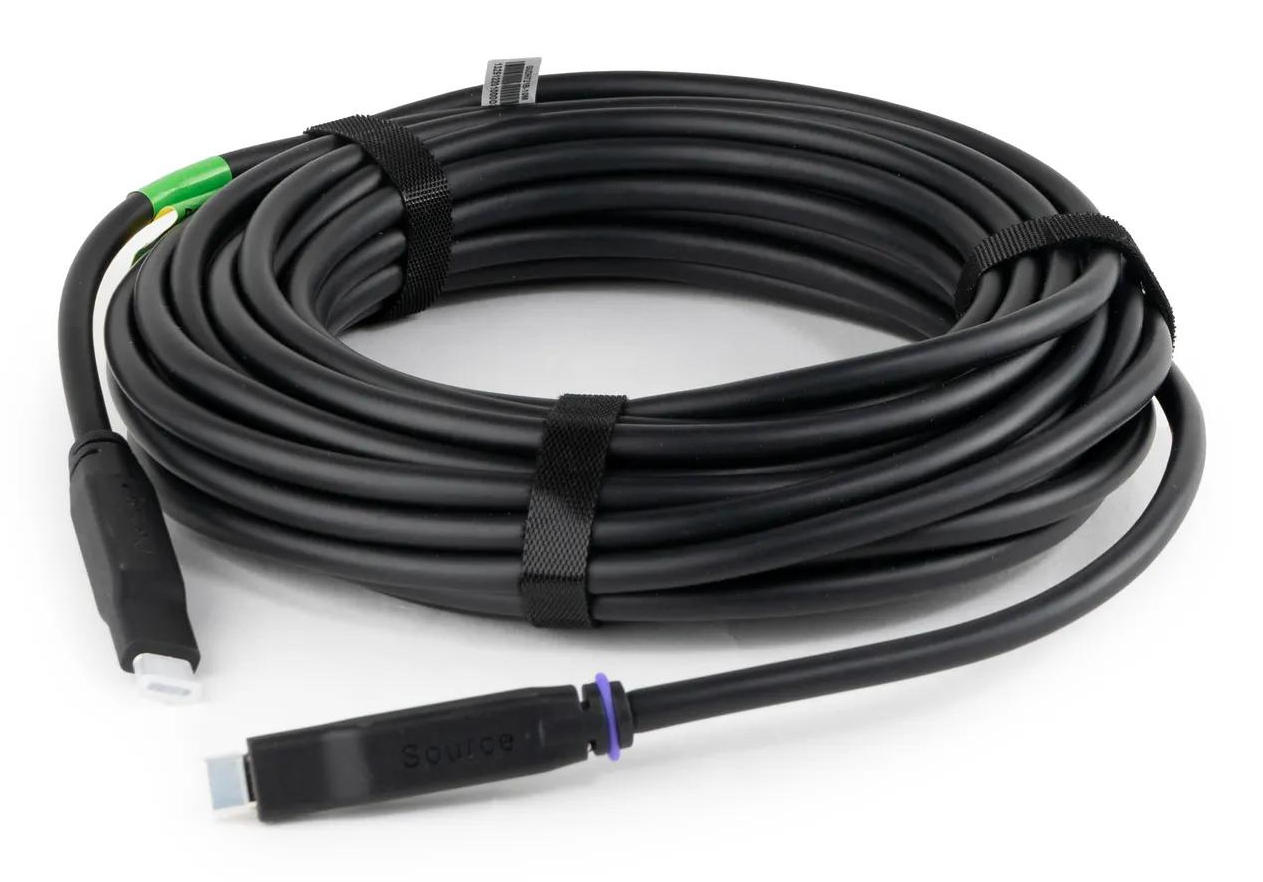

| Packaging content | ClickShare 10M 20W USB-C AOC cable, USB-C cable lock kit |
