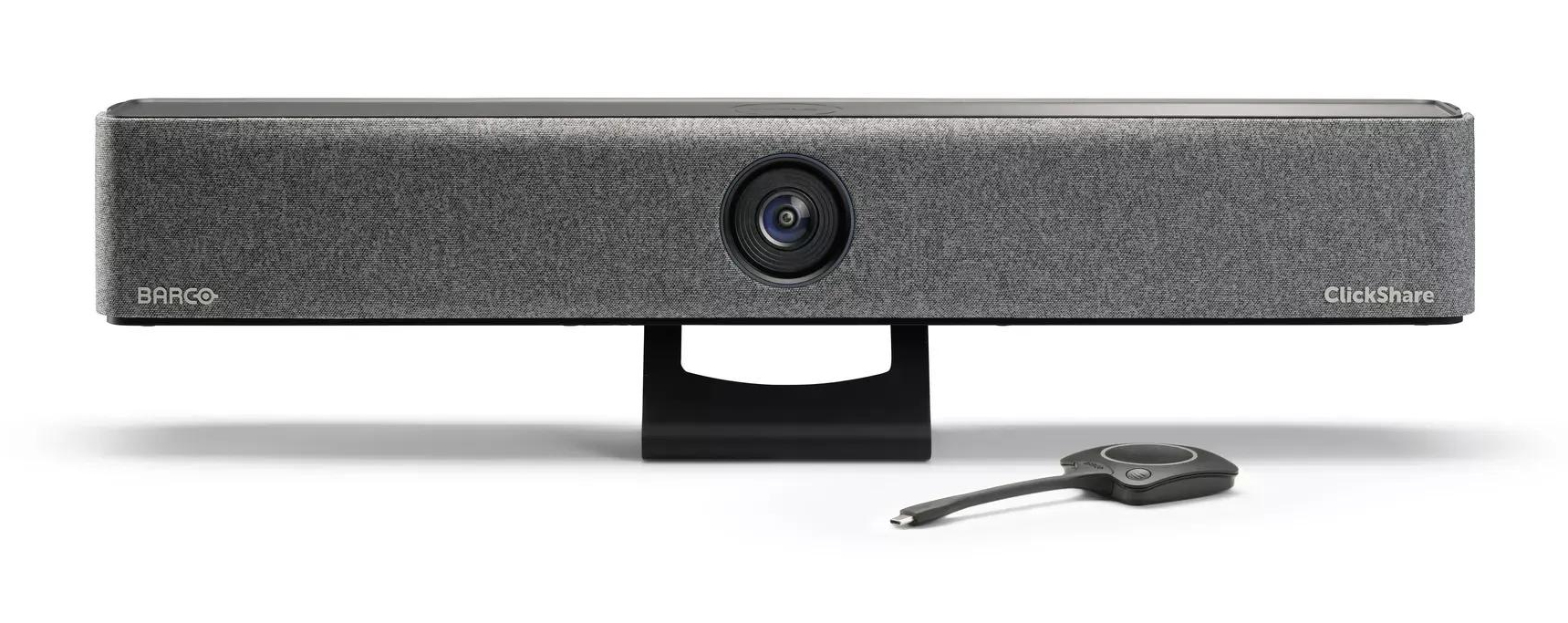

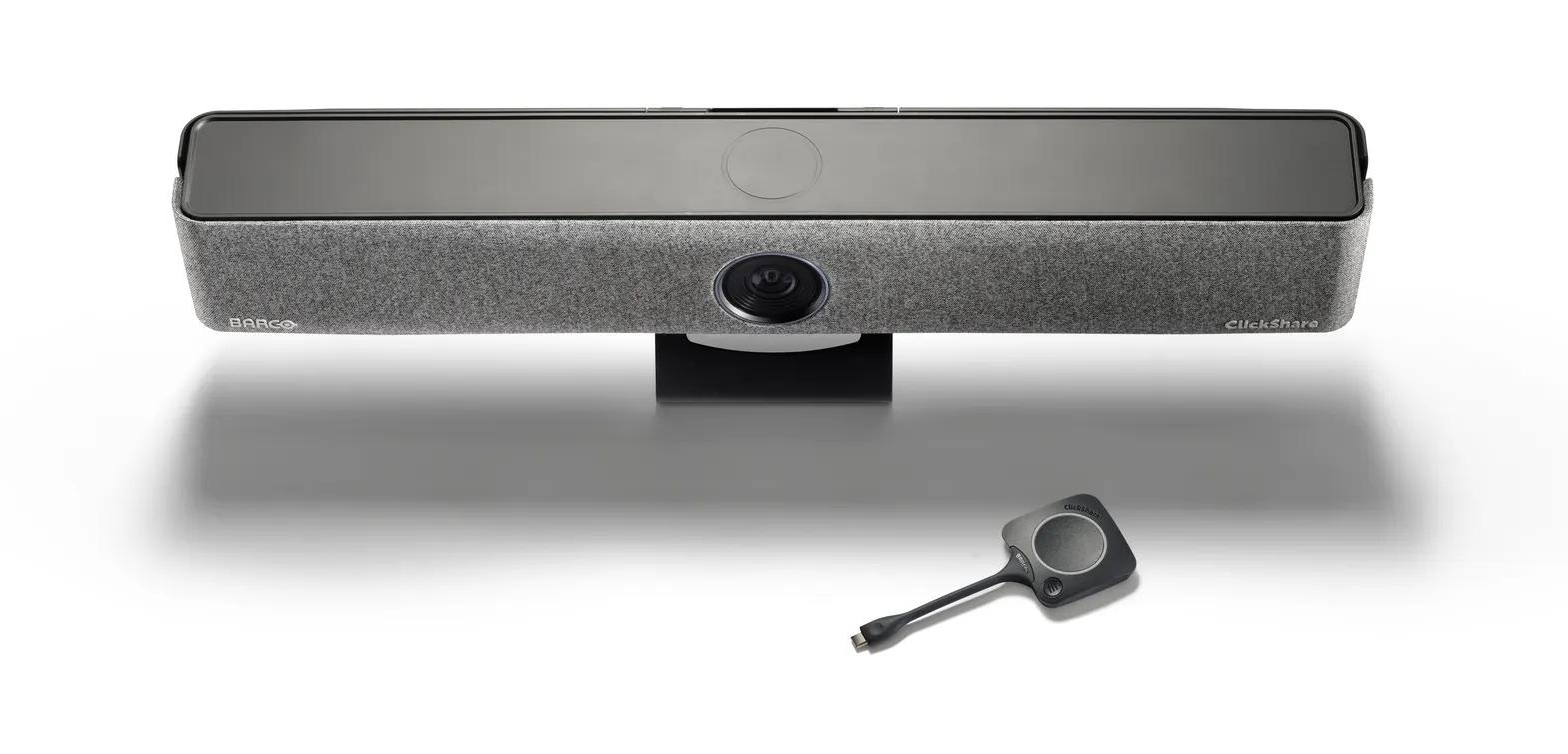

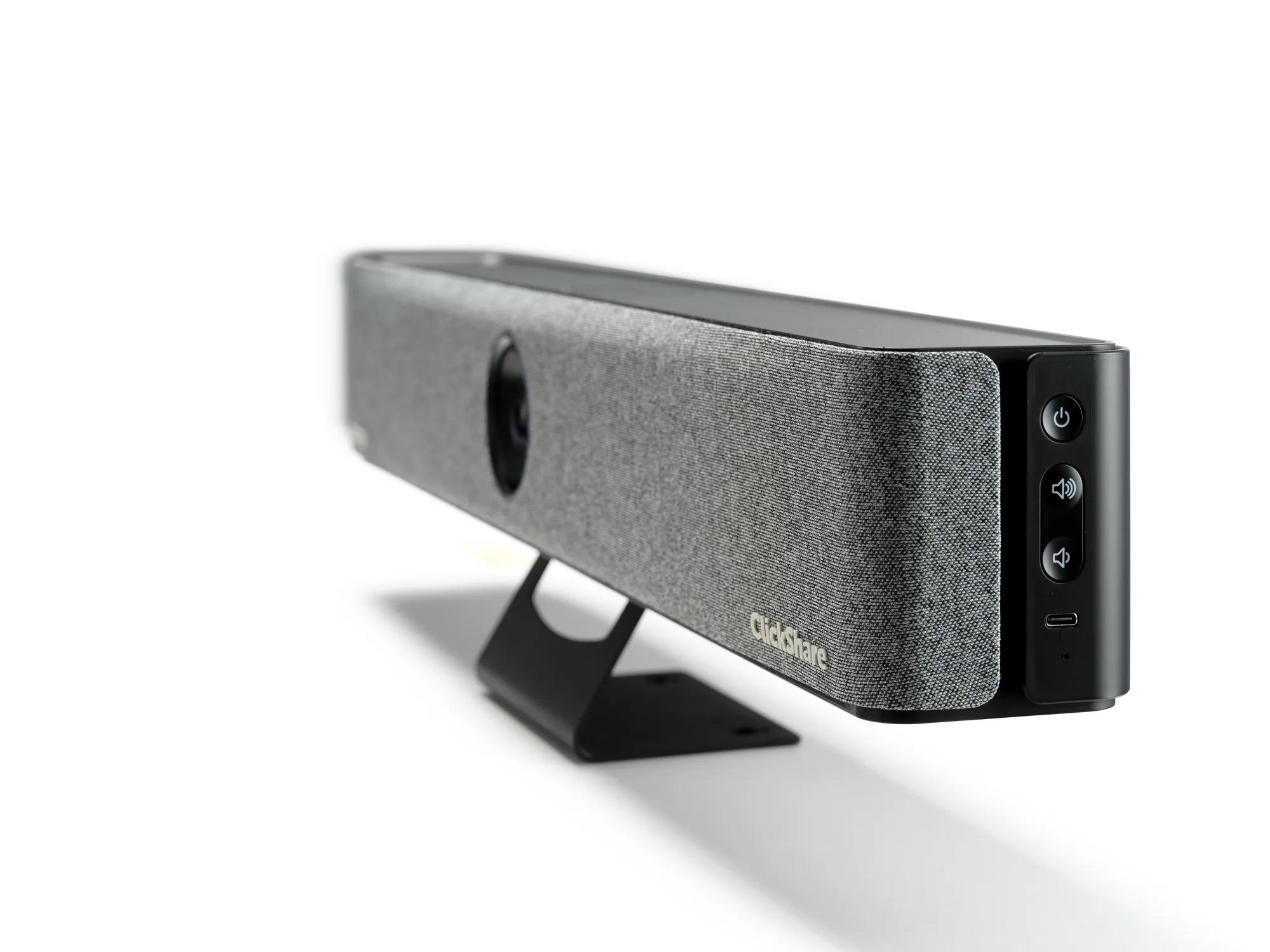

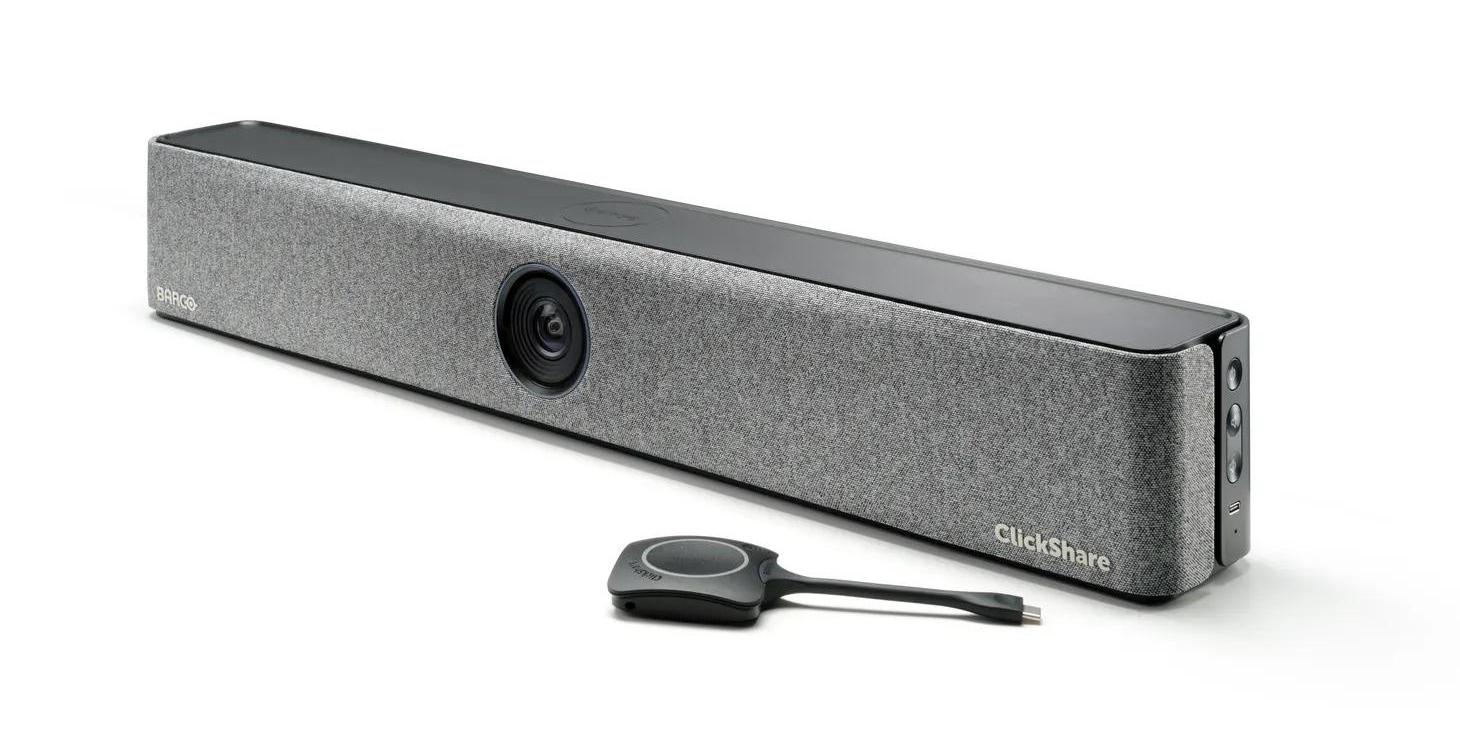

ClickShare Bar Core
Model ClickShare Bar CorePart no. R9861632USB1EAN 5415334048249
44 specifications
- TypeVideo collaboration bar
- ColourGrey
- HD type4K Ultra HD
- Built-in speaker(s)Yes
- USB 2.0 ports quantity1
- Windows operating systems supportedWindows 11
Overview
- Type
- Video collaboration bar
- Colour
- Grey
- HD type
- 4K Ultra HD
- Built-in speaker(s)
- Yes
- USB 2.0 ports quantity
- 1
- Windows operating systems supported
- Windows 11
- Brand
- Barco
- Category
- Video Conferencing System
- Model
- ClickShare Bar Core
- Part number
- R9861632USB1
- EAN / UPC
- 5415334048249
- Also known as
- Barco ClickShare Bar Core video conferencing system 4 person(s) Ethernet LAN Video collaboration bar
Specifications
44 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Product type | Video collaboration bar |
| Number of persons | 4 person(s) |
| Number of cameras | 1 |
| Product colour | Grey |
| PTZ control | Yes |
| Wireless range | 30 m |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system full duplex | Yes |
| Line-out impedance | 8 Ω |
| Audio beamforming | Yes |
| Echo cancellation | Yes |
| Microphone pick-up range | 4.5 m |
| Noise reduction | Yes |
| RMS rated power | 10 W |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms | 802.1x RADIUS, WPA2-PSK |
Camera
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 3x |
| Sensor type | CMOS |
| Field of view (FOV) angle | 120° |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Computer system
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 11 |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android 13.0, iOS 16 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 110 - 220 V |
| Power consumption (max) | 65 W |
| Power consumption (typical) | 20 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Speaker dimensions (WxDxH) | 640 x 101 x 98 mm |
| Speaker weight | 2.5 kg |
