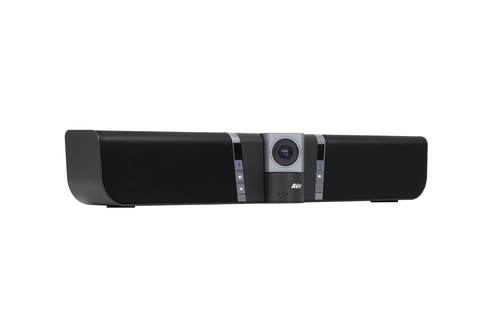

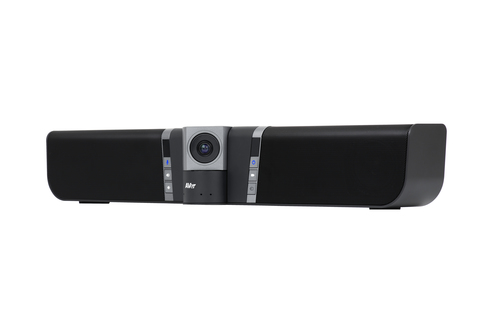

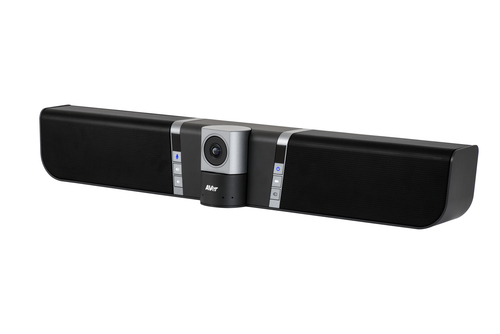

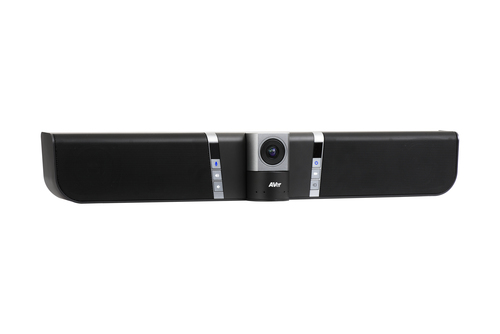

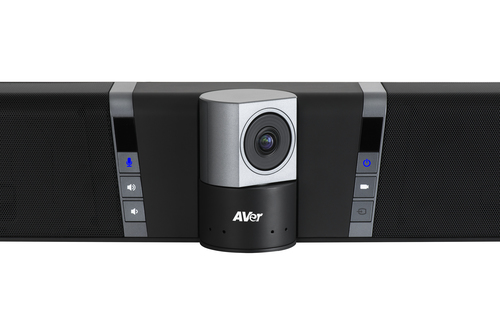

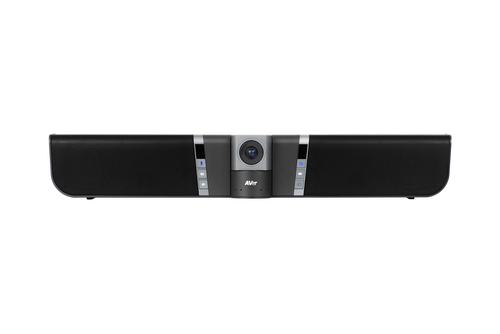

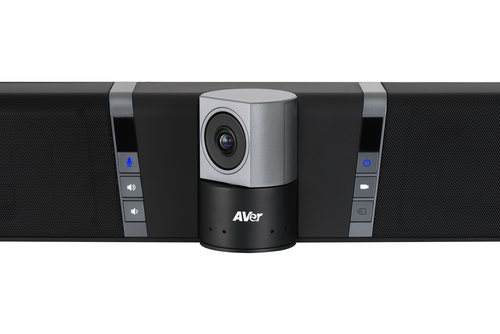

AVer VB342+ video conferencing system Group video conferencing system

VB342+ video conferencing system Group video conferencing system

Model VB342+Part no. 61U3200000ACEAN 4719552125494

70 specifications

TypeGroup video conferencing system
Weight7.84 kg
ColourBlack, Grey
HD type4K Ultra HD
Built-in speaker(s)Yes
HDMI ports quantity1

See all specifications

Overview

Type: Group video conferencing system
Weight: 7.84 kg
Colour: Black, Grey
HD type: 4K Ultra HD
Built-in speaker(s): Yes
HDMI ports quantity: 1

Brand: AVer
Category: Video Conferencing System
Model: VB342+
Part number: 61U3200000AC
EAN / UPC: 4719552125494
Also known as: AVer VB342+ video conferencing system Group video conferencing system

Specifications

70 specifications in 15 groups

Performance

Specification	Value
Product type	Group video conferencing system
Product colour	Black, Grey
Wall mountable	Yes
Pan range	0 - 180°
Tilt angle range	0 - 105°

Video

Specification	Value
HD type	4K Ultra HD
HD-Ready	Yes
Supported video modes	720p, 1080p, 2160p
Supported graphics resolutions	640 x 360, 640 x 480 (VGA), 848 x 480, 960 x 540, 1920 x 1080 (HD 1080), 3840 x 2160
Maximum frame rate	60 fps
Aspect ratio	16:4
Video formats supported	M-JPEG, YUV, YUY2

Audio

Specification	Value
Built-in speaker(s)	Yes
Echo cancellation	Yes
Noise reduction	Yes
RMS rated power	10 W

Ports & interfaces

Specification	Value
HDMI ports quantity	1
USB connector type	USB Type-C
DC-in jack	Yes
Line-out	Yes
Microphone in	Yes
RS-232 ports	1

Camera

Specification	Value
Digital zoom	4x
Sensor type	CMOS
Field of view (FOV) angle	120°
Wide Dynamic Range (WDR)	Yes
Number of camera presets	10
Remote control interface	IR wireless/RS-232
3D NR (Noise Reduction)	Yes
Closest focusing distance	0.8 m
White balance	Auto, Manual
Back Light Compensation (BLC)	Yes

Display

Specification	Value
Built-in display	No

Microphone

Specification	Value
Microphone direction type	Unidirectional
Sound pressure level (max)	96 dB
Number of microphones	2

Computer system

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur
Mobile operating systems supported	Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0
Applications supported	Zoom, Microsoft Teams, Skype for Business, Skype, Google Hangouts, Intel Unite, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting, TrueConf, Adobe Connect, Cisco WebEx, Fuze, GoToMeeting, Microsoft Lync, Vidyo, vMix, WebRTC, Wirecast, XSplit
Other operating systems supported	ChromeOS

Logistics data

Specification	Value
Country of origin	Taiwan
Harmonized System (HS) code	8517691000
Products per master (outer) case	2 pc(s)
Products per pallet	42 pc(s)

System requirements

Specification	Value
Minimum system requirements	- 2.4 GHz Intel Core 2 Duo - 2 GB RAM

Operational conditions

Specification	Value
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 / 60 Hz
Current	5 A
DC input voltage	12 V

Weight & dimensions

Specification	Value
Camera dimensions (WxDxH)	650 x 100 x 109.5 mm
Camera weight	2.13 kg
Width	193 mm
Depth	229 mm
Height	739 mm
Weight	7.84 kg

Packaging data

Specification	Value
Package width	400 mm
Package depth	248 mm
Package height	752 mm
Package weight	9.41 kg

Packaging content

Specification	Value
Cables included	AC, USB Type-A to USB Type-C
Wall mounting kit	Yes
Warranty card	Yes
Batteries included	Yes
Manual	Yes

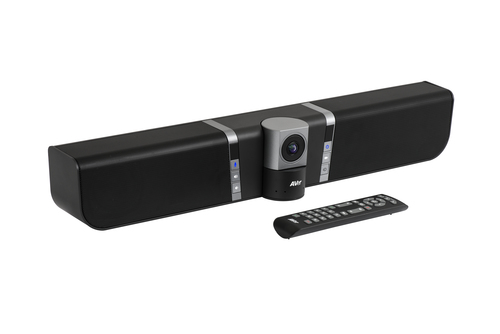

Remote control included	Yes
