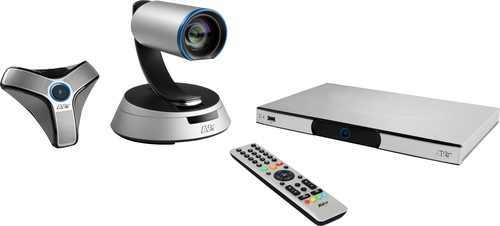

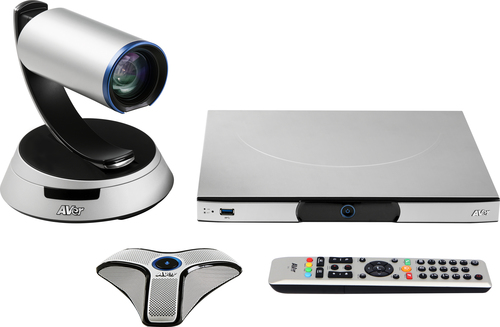

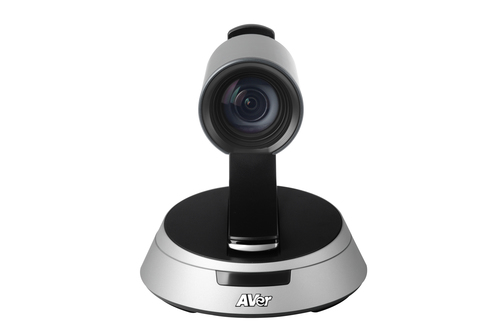

SVC100 video conferencing system
2 MP Ethernet LAN Group video conferencing system
Model SVC100Part no. 61V2B10000B2EAN 4719552124398
68 specifications
- TypeGroup video conferencing system
- Weight7.88 kg
- ColourBlack, Silver
- HD typeFull HD
- Automatic gain controlYes
- HDMI ports quantity4
Overview
- Type
- Group video conferencing system
- Weight
- 7.88 kg
- Colour
- Black, Silver
- HD type
- Full HD
- Automatic gain control
- Yes
- HDMI ports quantity
- 4
- Brand
- AVer
- Category
- Video Conferencing System
- Model
- SVC100
- Part number
- 61V2B10000B2
- EAN / UPC
- 4719552124398
- Also known as
- AVer SVC100 video conferencing system 2 MP Ethernet LAN Group video conferencing system
Specifications
68 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 23 |
| Product colour | Black, Silver |
| Pan range | -110 - 110° |
| Tilt angle range | -25 - 25° |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Supported graphics resolutions | 352 x 240, 352 x 288, 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Maximum frame rate | 60 fps |
| Video formats supported | H.261, H.263, H.263+, H.264 |
| Dual stream | H.239 |
Audio
| Specification | Value |
|---|---|
| Automatic gain control | Yes |
| Echo cancellation | Yes |
| Microphone pick-up range | 6 m |
| Noise reduction | Yes |
| Voice codecs | G.711, G.722, G.722.1, G.722.1C, G.728, G.729 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-B |
| USB 2.0 ports quantity | 3 |
| DVI-I ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Line-in | Yes |
| Line-out | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Supported network protocols | RTP, RTCP, H.350,SRTP, H.235, SNMP, NTP |
| Security algorithms | 128-bit AES, EAP |
| Password protection type | User |
| Web-based management | Yes |

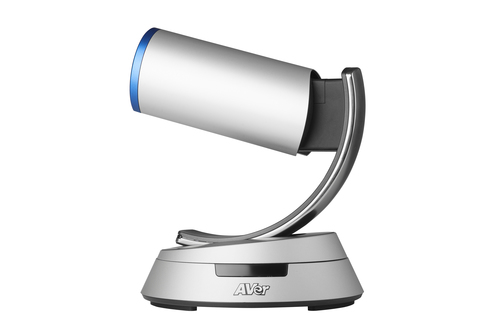

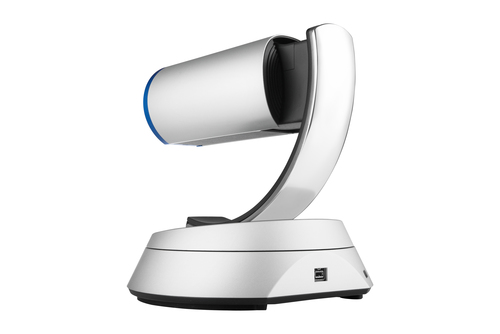

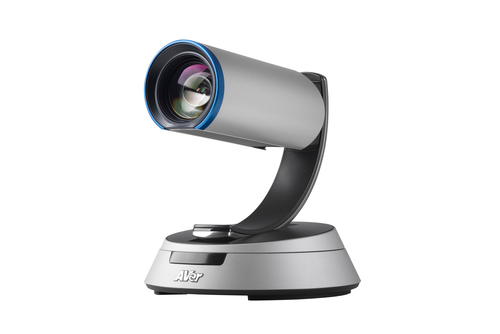

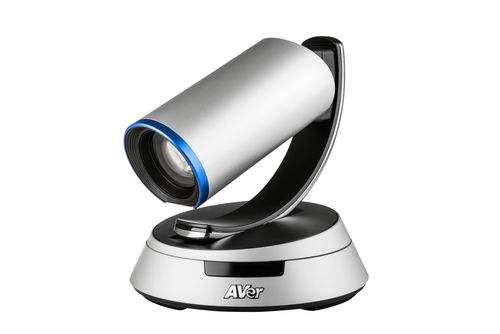

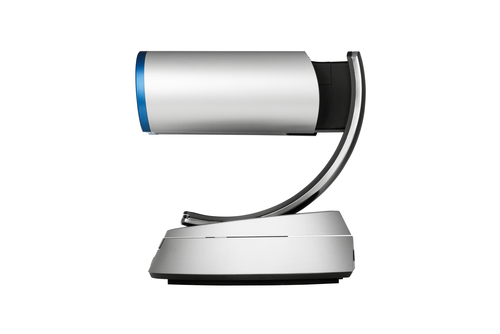

Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Combined zoom | 18x |
| Effective sensor resolution | 2 MP |
| Sensor type | CMOS |
| 3D NR (Noise Reduction) | Yes |

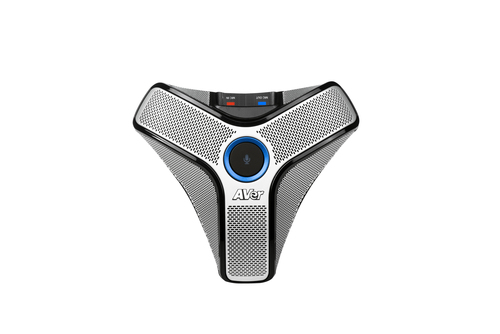

Microphone
| Specification | Value |
|---|---|
| Microphone colour | Grey |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Harmonized System (HS) code | 8517691000 |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet | 25 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Current | 6.25 A |
| DC input voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Microphone dimensions (WxHxD) | 144.8 x 128.45 x 27.8 mm |
| Interface module dimensions (W x D x H) | 320 x 267.4 x 37.3 mm |
| Camera dimensions (WxDxH) | 205 x 205 x 195 mm |
| Width | 320 mm |
| Depth | 303 mm |
| Height | 376 mm |
| Weight | 7.88 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 336 mm |
| Package depth | 334 mm |
| Package height | 392 mm |
| Package weight | 8.72 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI, LAN (RJ-45), VGA |
| Power cable length | 1.8 m |
| Networking cable length | 3 m |
| HDMI cable length | 3 m |
| AC adapter included | Yes |
| Microphone included | Yes |
| Remote control included | Yes |
| User guide | Yes |
