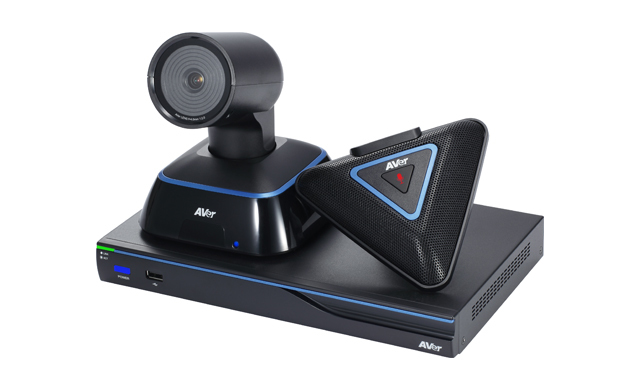

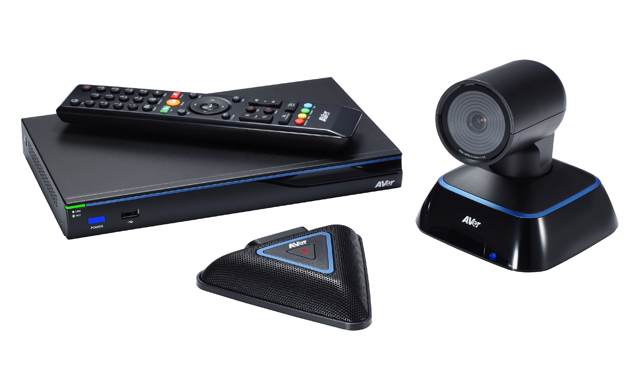

EVC130 video conferencing system
2 MP Ethernet LAN Group video conferencing system
Model EVC130Part no. 61V2C1F000ALEAN 4719552121496
73 specifications
- TypeGroup video conferencing system
- Weight8.16 kg
- ColourBlack
- HD typeFull HD
- Automatic gain controlYes
- Interface module HDMI output ports quantity1
Overview
- Type
- Group video conferencing system
- Weight
- 8.16 kg
- Colour
- Black
- HD type
- Full HD
- Automatic gain control
- Yes
- Interface module HDMI output ports quantity
- 1
- Brand
- AVer
- Category
- Video Conferencing System
- Model
- EVC130
- Part number
- 61V2C1F000AL
- EAN / UPC
- 4719552121496
- Also known as
- AVer EVC130 video conferencing system 2 MP Ethernet LAN Group video conferencing system
Specifications
73 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 23 |
| Product colour | Black |
| Pan range | -100 - 100° |
| Tilt angle range | -25 - 25° |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Supported video modes | 1080p, 480p, 720p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 fps |
| Video formats supported | H.239, H.261, H.263, H.263+, H.264 |
Audio
| Specification | Value |
|---|---|
| Automatic gain control | Yes |
| Echo cancellation | Yes |
| Noise reduction | Yes |
| Voice codecs | G.722.1C, G.711, G.722, G.722.1, G.728 |
Ports & interfaces
| Specification | Value |
|---|---|
| Microphone in | Yes |
Interface module
| Specification | Value |
|---|---|
| Interface module HDMI output ports quantity | 1 |
| Interface module VGA (D-Sub) input ports quantity | 1 |
| Interface module VGA (D-Sub) output ports quantity | 1 |
| Interface module USB 2.0 ports quantity | 2 |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Interface module line-in ports quantity | 1 |
| Interface module line-out ports quantity | 1 |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Supported network protocols | IPv4 / IPv6 |
| Quality of Service (QoS) support | Yes |
| Wake-on-LAN ready | Yes |
| Security algorithms | 128-bit AES |
| Password protection | Yes |
| Password protection type | User |
| Web-based management | Yes |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2 MP |
| Digital zoom | 4x |
| Sensor type | CMOS |
| Horizontal field of view | 77° |
| Number of camera presets | 100 |
| Snapshot | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Computer system
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Harmonized System (HS) code | 8517691000 |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet | 60 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Current | 5 A |
| DC input voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Microphone dimensions (WxHxD) | 131.9 x 118.6 x 25.5 mm |
| Interface module dimensions (W x D x H) | 260 x 158.7 x 33 mm |
| Camera dimensions (WxDxH) | 37.7 x 122.3 x 130 mm |
| Width | 226 mm |
| Depth | 263 mm |
| Height | 327 mm |
| Weight | 8.16 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 344 mm |
| Package depth | 292 mm |
| Package height | 472 mm |
| Package weight | 9.05 kg |
Packaging content
| Specification | Value |
|---|---|
| External interface module included | Yes |
| AC adapter included | Yes |
| Warranty card | Yes |
| Camera included | Yes |
| Microphone included | Yes |
| Remote control included | Yes |
| User guide | Yes |
