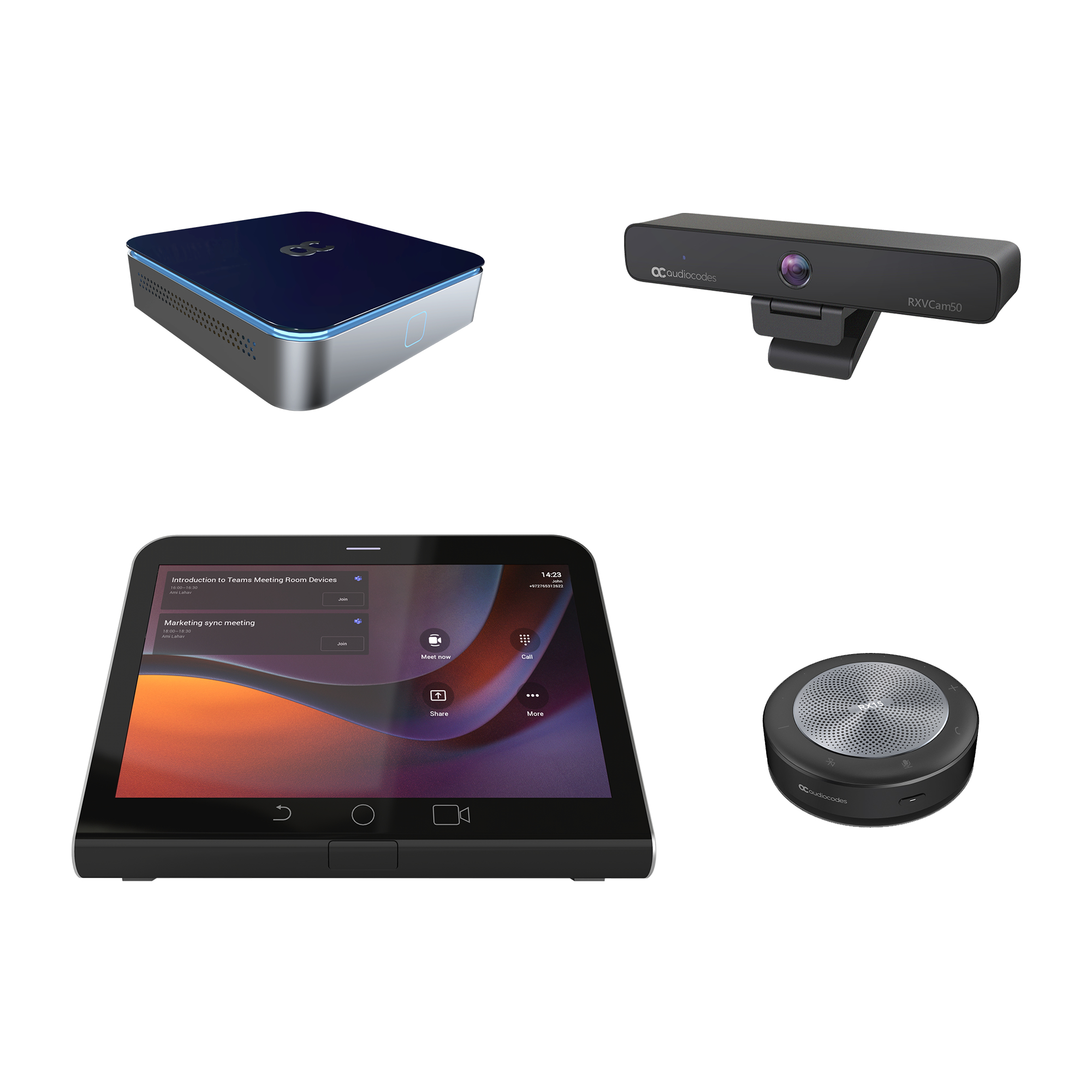

AudioCodes RXV200 Compute Device for small to mid size meeting rooms. The Bundle also Includes the RXPanel, RX15 Speakerphone and RXVCam50M
AudioCodes

RXV200 Compute Device for small to mid size meeting rooms. The Bundle also Includes the RXPanel, RX15 Speakerphone and RXVCam50M

Model RXV200-B20

72 specifications
  • Display20.3 cm (8")
  • Resolution1280 x 800 pixels
  • ProcessorSnapdragon
  • TypeGroup video conferencing system
  • OSAndroid
  • ColourBlack
See all specifications

Overview

Display
20.3 cm (8")
Resolution
1280 x 800 pixels
Processor
Snapdragon
Type
Group video conferencing system
OS
Android
Colour
Black
Brand
AudioCodes
Model
RXV200-B20
Part number
RXV200-B20
Also known as
AudioCodes RXV200 Compute Device for small to mid size meeting rooms. The Bundle also Includes the RXPanel, RX15 Speakerphone and RXVCam50M

Specifications

72 specifications in 14 groups

Performance

Product typeGroup video conferencing system
Number of persons10 person(s)
Number of cameras1
BluetoothYes
Bluetooth version5.1
Product colourBlack
Signal-to-Noise Ratio (SNR)75 dB
PTZ controlYes

Video

HD type4K Ultra HD
Maximum video resolution3840 x 2160 pixels
Supported graphics resolutions640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Aspect ratio16:9
Resolution at capture speed640x480@25fps, 640x480@30fps, 1280x720@25fps, 1280x720@30fps, 1920x1080@25fps, 1920x1080@30fps, 3840x2160@30fps

Audio

Built-in speaker(s)Yes
Number of speakers1
Frequency range150 - 16000 Hz
Output voltage Total Harmonic Distortion (THD)4%
Automatic gain controlYes
Microphone pick-up range2.5 m

Ports & interfaces

USB connector typeUSB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1

Interface module

Interface module HDMI ports quantity3
Interface module HDMI input ports quantity1
Interface module HDMI output ports quantity2

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Networking standardsIEEE 802.1Q, IEEE 802.1p
Supported network protocolsTCP/IP (IPv4)
Quality of Service (QoS) supportYes
VLAN supportYes
Security algorithms256-bit AES, 802.1x RADIUS, SRTP, TLS

Camera

Megapixel (approx.)8.28 MP
Camera typeSingle camera
Zoom capabilityYes
Digital zoom10x
Sensor typeCCD
Image sensor size1/2.5"
Focal length range2.26 mm
Horizontal field of view100°
Vertical field of view64°
Diagonal field of view102°
3D NR (Noise Reduction)Yes
Minimum illumination0.1 lx

Display

Built-in displayYes
Display diagonal20.3 cm (8")
Display resolution1280 x 800 pixels
TouchscreenYes

Microphone

Microphone colourBlack
Microphone sensitivity38 dB
Microphone frequency150 - 8000 Hz
Sound pressure level (max)65 dB
Number of microphone arrays6

Computer system

Computer system typeMini PC
Processor familySnapdragon
Processor modelQCS8250
Operating system installedAndroid

Features

Cable lock slotYes
Cable lock slot typeKensington

Operational conditions

Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)-10 - 50 °C
Storage relative humidity (H-H)20 - 90%
Storage temperature (T-T)-10 - 60 °C

Power

Power source typeDC
Current3 A
DC input voltage12 V

Weight & dimensions

Interface module dimensions (W x D x H)170 x 170 x 41.3 mm
Interface module weight750 g
Speaker dimensions (WxDxH)120 x 120 x 35.2 mm
Speaker weight395 g
Camera dimensions (WxDxH)220 x 93.75 x 56.5 mm
