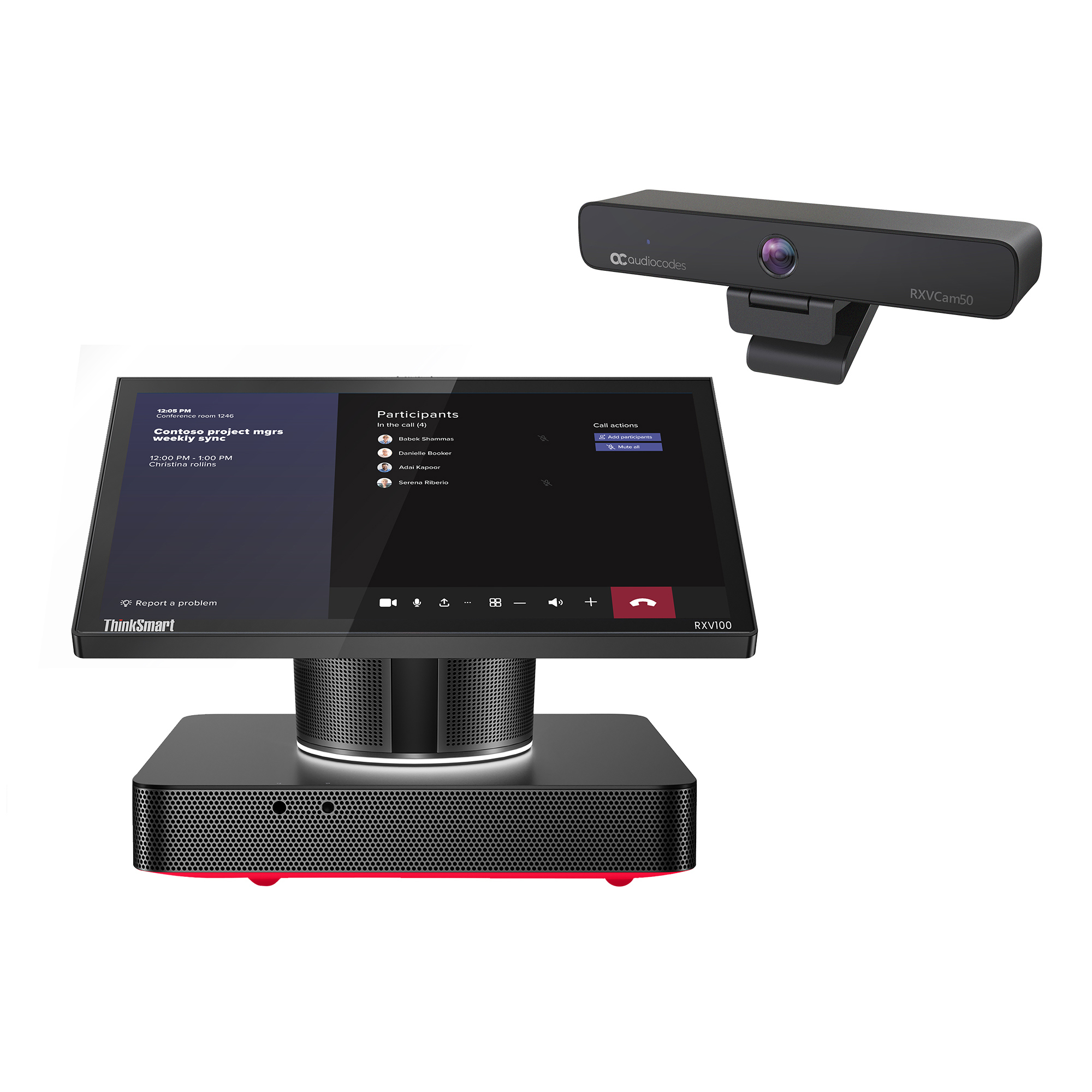

RXV100 Hub with Audio bundled with RXVCam50M. Compatible with Microsoft Teams or Zoom
Model RXV100-B20
75 specifications
- Display25.6 cm (10.1")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i5
- Memory8192 MB
- Storage128 GB
- TypeMultimedia congress terminal
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8192 MB
- Storage
- 128 GB
- Type
- Multimedia congress terminal
- Brand
- AudioCodes
- Category
- Video Conferencing System
- Model
- RXV100-B20
- Part number
- RXV100-B20
- Also known as
- AudioCodes RXV100 Hub with Audio bundled with RXVCam50M. Compatible with Microsoft Teams or Zoom
Specifications
75 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Product type | Multimedia congress terminal |
| Number of persons | 12 person(s) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Product colour | Black |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| Supported video modes | 1080p, 480p, 720p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Aspect ratio | 16:10 |
| Video formats supported | H.264, H.265, MJPG, YUY2 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 4 |
| RMS rated power | 6 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8192 MB |
| Internal memory type | DDR4 |
| Storage media type | SSD |
| Total storage capacity | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Zoom capability | Yes |
| Digital zoom | 10x |
| Effective sensor resolution | 8.28 MP |
| Sensor type | CMOS |
| Image sensor size | 1/2.5" |
| Horizontal field of view | 120° |
| Vertical field of view | 85° |
| Diagonal field of view | 126° |
| Minimum illumination | 0.1 lx |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display brightness | 320 cd/m² |
| Anti-glare screen | Yes |
Microphone
| Specification | Value |
|---|---|
| Microphone direction type | Omnidirectional |
| Number of microphones | 4 |
Features
| Specification | Value |
|---|---|
| Telepresence | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Computer system
| Specification | Value |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8365U |
| Operating system installed | Windows 10 IoT Enterprise SAC |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Other operating systems supported | Linux |
System requirements
| Specification | Value |
|---|---|
| Minimum RAM | 2048 MB |
| Minimum processor speed | 2.4 GHz |
| Minimum system requirements | Intel Core 2 Duo |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -10 - 60 °C |
Power
| Specification | Value |
|---|---|
| Current | 1 A |
| Operating voltage (microphone) | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Camera dimensions (WxDxH) | 220 x 93.75 x 56.5 mm |
| Width | 240 mm |
| Depth | 200 mm |
| Height | 185.3 mm |
| Weight | 2.47 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Manual | Yes |
| Remote control included | Yes |
