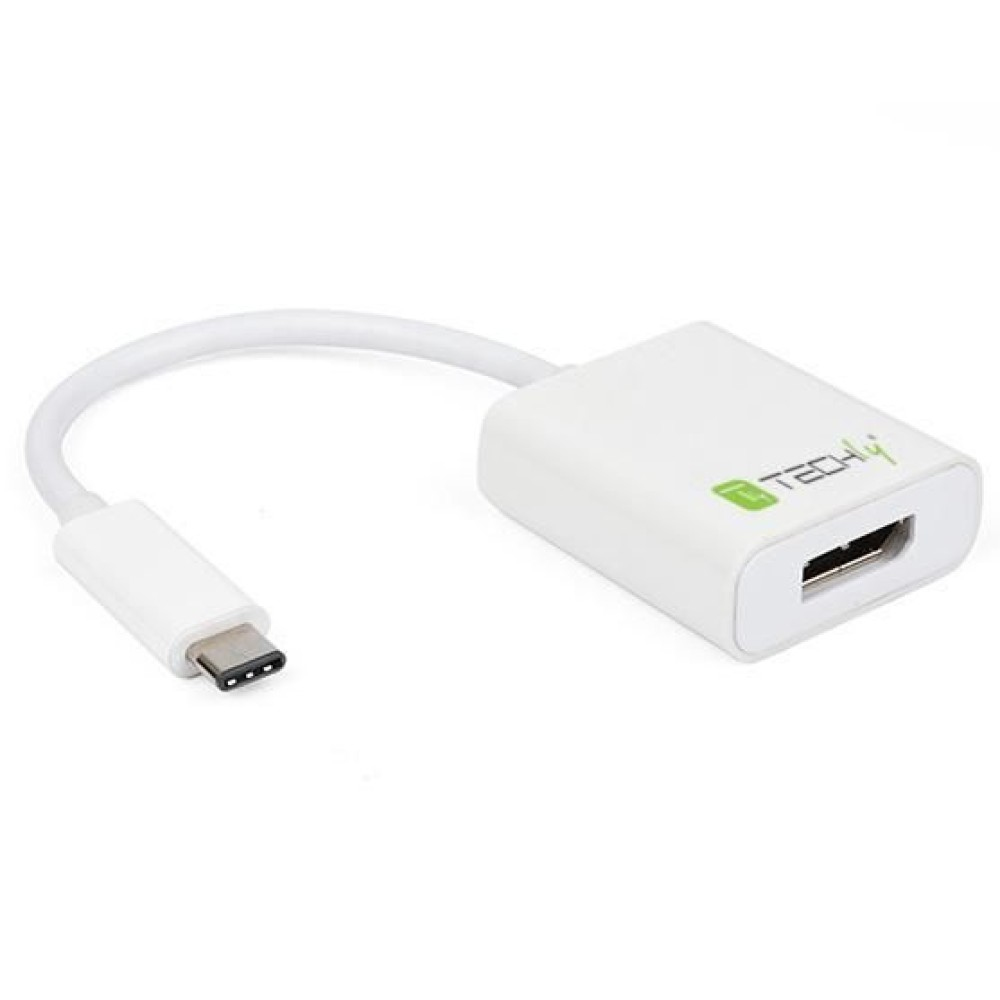

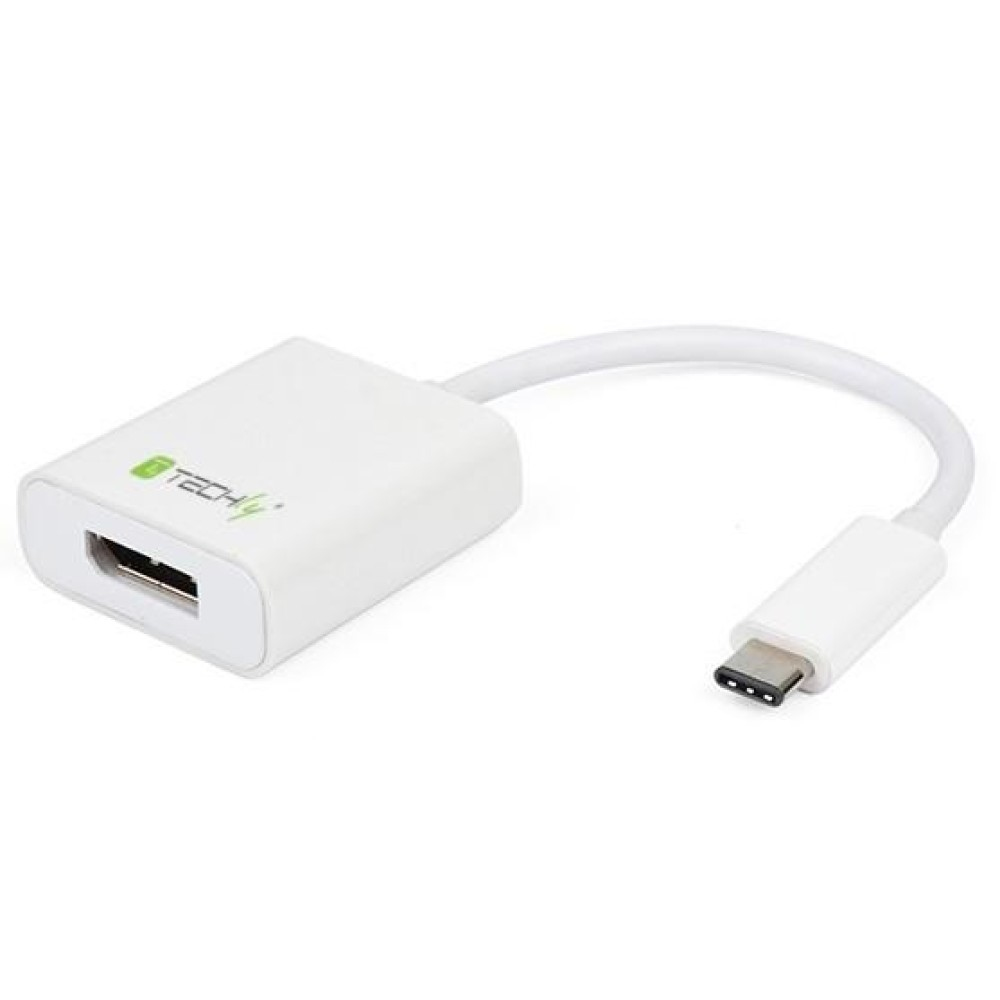

IADAP USB31-DP
Model IADAP USB31-DP
27 specifications
- Weight29 g
- ColourWhite
- USB version3.2 Gen 2 (3.1 Gen 2)
- Windows operating systems supportedWindows 10
- Width41.5 mm
- Operating temperature (T-T)0 - 45 °C
Overview
- Weight
- 29 g
- Colour
- White
- USB version
- 3.2 Gen 2 (3.1 Gen 2)
- Windows operating systems supported
- Windows 10
- Width
- 41.5 mm
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- Techly
- Category
- USB Graphics Adapter
- Model
- IADAP USB31-DP
- Part number
- IADAP USB31-DP
- Also known as
- Techly Cable Converter Adapter USB 3.1 Type CM to Displayport F IADAP USB31-DP
Specifications
27 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 2 (3.1 Gen 2) |

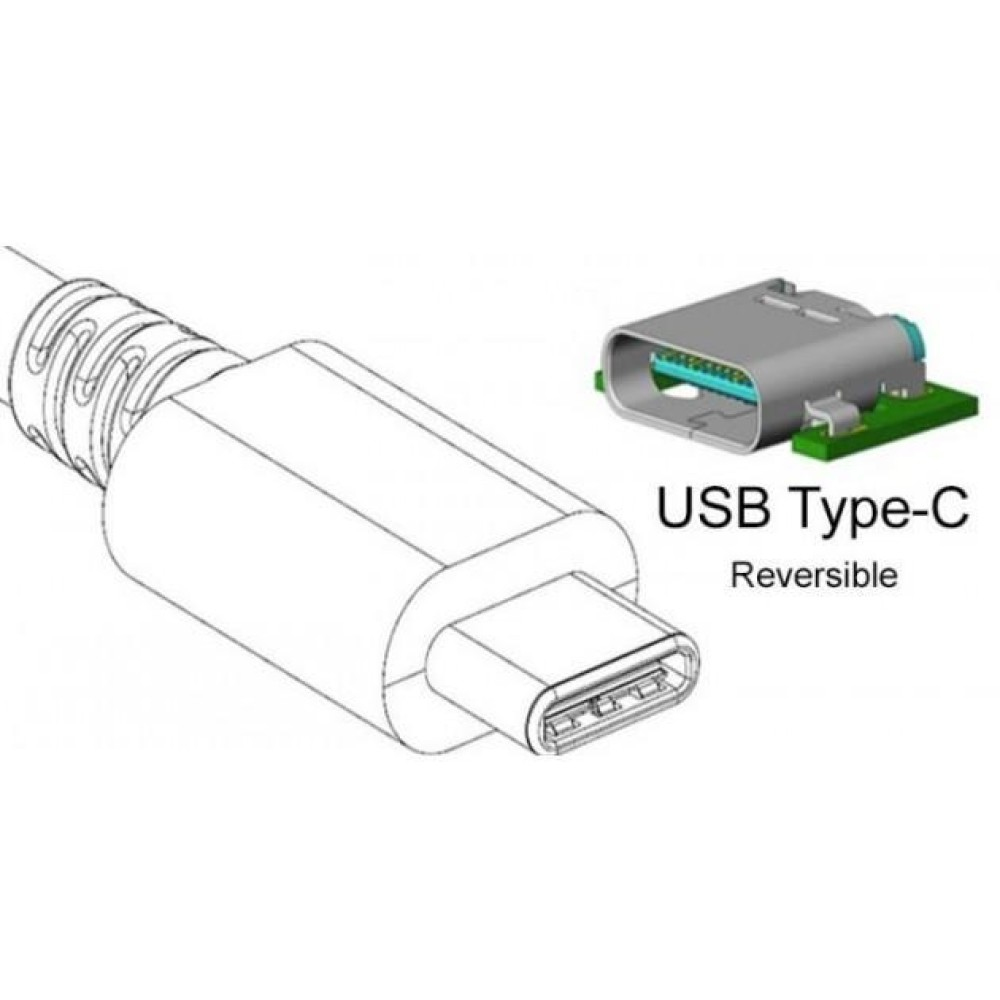

| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2600 pixels |
| Supported video modes | 1080p, 480i, 480p, 576i, 720p |
| Data transfer rate (max) | 5.4 Gbit/s |
| Certification | CE, FCC |
Design
| Specification | Value |
|---|---|
| Product colour | White |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 41.5 mm |
| Depth | 37 mm |
| Height | 14.5 mm |
| Weight | 29 g |
| USB cable length | 0.15 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
