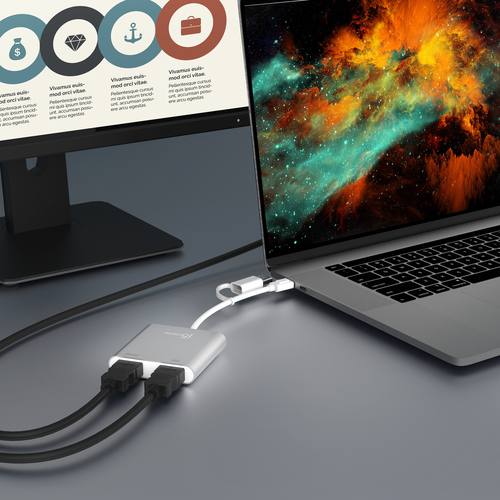

JCA365-N USB-C® to Dual HDMI™ Multi-Monitor Adapter
Model JCA365Part no. JCA365-NEAN 788787086416
53 specifications
- Weight84 g
- ColourSilver
- USB version3.2 Gen 1 (3.1 Gen 1)
- Power consumption (max)1.46 W
- Mac compatibilityYes
- Width68 mm
Overview
- Weight
- 84 g
- Colour
- Silver
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Power consumption (max)
- 1.46 W
- Mac compatibility
- Yes
- Width
- 68 mm
- Brand
- j5create
- Category
- USB Graphics Adapter
- Model
- JCA365
- Part number
- JCA365-N
- EAN / UPC
- 788787086416, 4712795086416
- Also known as
- j5create JCA365-N USB-C® to Dual HDMI™ Multi-Monitor Adapter
Specifications
53 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 2 |
| HDMI ports quantity | 2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Supported graphics resolutions | 2048 x 1152, 3840 x 2160 |
| Mirror display mode | Yes |
| Extended display mode | Yes |
| Current | 0.29 A |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Aluminium |
| Integrated USB cable | Yes |
| Cable type | USB-C/USB 3.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 1.46 W |
| Output voltage | 5 V |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1, Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Yes |
| Minimum processor family | Core i3, Core i5, Core i7 |
| Minimum processor speed | 1.8 GHz |
| Minimum RAM | 4 GB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68 mm |
| Depth | 15 mm |
| Height | 61 mm |
| Weight | 84 g |
| USB cable length | 0.2 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 95 mm |
| Package height | 25 mm |
| Package weight | 114.5 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-C |
| Manual | Yes |
| Quick installation guide | Yes |
| Packaging content | 1 x USB-C® to Dual HDMI™ Multi-Monitor Adapter (JCA365) 1 x Quick Installation Guide (QIG) |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795086410 |
| Master (outer) case width | 225 mm |
| Master (outer) case length | 321 mm |
| Master (outer) case height | 180 mm |
| Master (outer) case gross weight | 2.91 kg |
| Country of origin | Taiwan |
| Export Control Classification Number (ECCN) | EAR99 |
