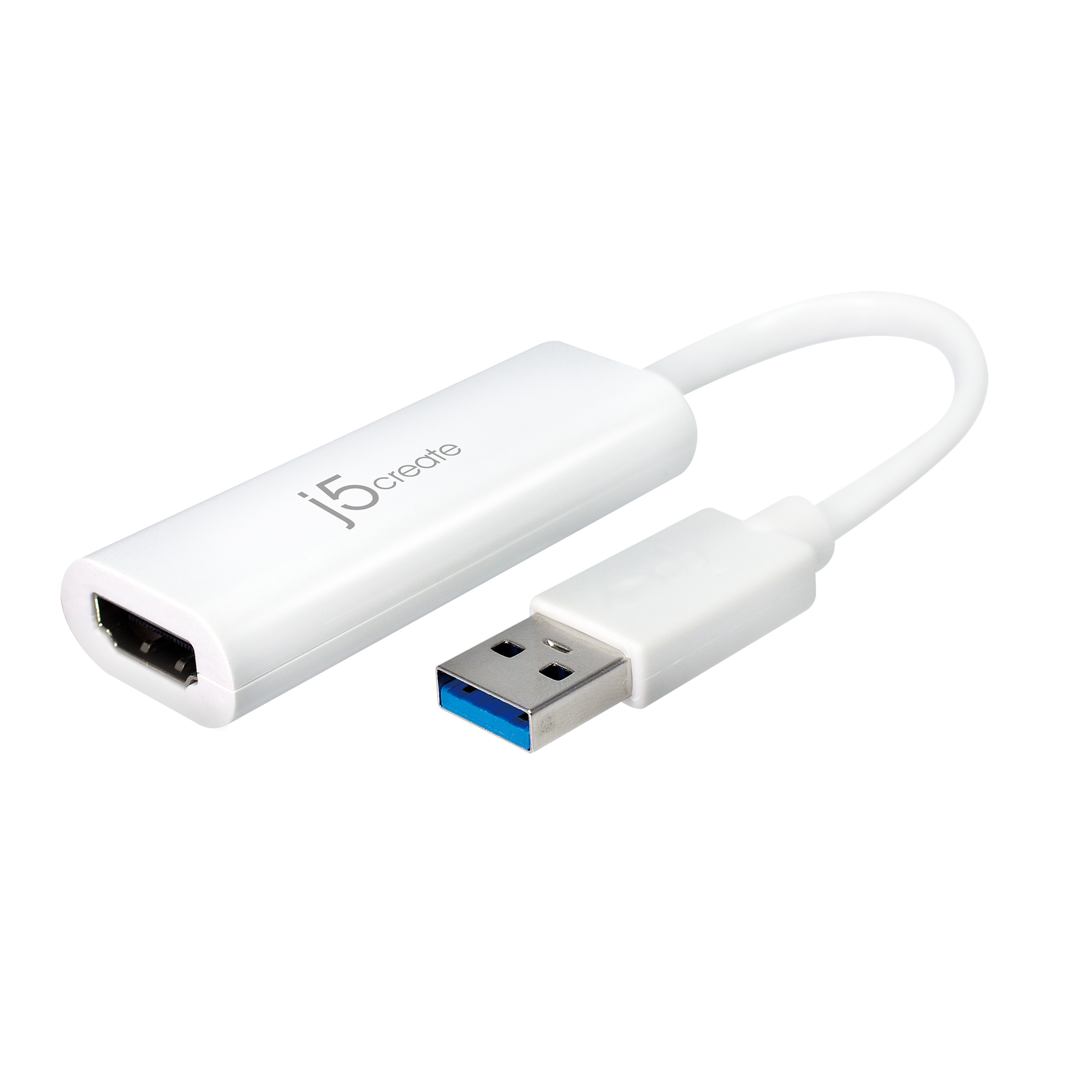

JUA254 USB 3.0 HDMI Multi-Monitor Adapter
Model JUA254Part no. JUA254-NEAN 847626001642
49 specifications
- Weight25 g
- ColourWhite
- USB version3.2 Gen 1 (3.1 Gen 1)
- Power consumption (max)0.93 W
- Width68.3 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 25 g
- Colour
- White
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Power consumption (max)
- 0.93 W
- Width
- 68.3 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- j5create
- Category
- USB Graphics Adapter
- Model
- JUA254
- Part number
- JUA254-N
- EAN / UPC
- 847626001642, 24712795081071, 4712795081077
- Also known as
- j5create JUA254 USB 3.0 HDMI Multi-Monitor Adapter
Specifications
49 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A |
| USB connector gender | Male |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 1 |
| HDMI ports quantity | 1 |
| Maximum resolution | 2048 x 1152 pixels |
| Maximum resolution (HDMI) | 2048 x 1152 pixels |
| Supported video modes | 1080p |
| Output colour depth | 32 bit |
| Mirror display mode | Yes |
| Extended display mode | Yes |
| Current | 0.18 A |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Integrated USB cable | Yes |
| Cable type | USB 3.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 0.93 W |
| Output voltage | 5 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68.3 mm |
| Depth | 15 mm |
| Height | 26 mm |
| Weight | 25 g |
| USB cable length | 0.08 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Packaging data
| Specification | Value |
|---|---|
| Package width | 120 mm |
| Package depth | 97 mm |
| Package height | 25 mm |
| Package weight | 73.5 g |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | No |
| Quick installation guide | Yes |
| Packaging content | 1 x JUA254 USB™ to HDMI™ Multi-Monitor Adapter, 1 x Quick Installation Guide |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795081071 |
| Master (outer) case width | 225 mm |
| Master (outer) case length | 321 mm |
| Master (outer) case height | 180 mm |
| Master (outer) case gross weight | 2.16 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case width | 10.5 cm |
| Shipping (inner) case length | 15 cm |
| Shipping (inner) case height | 16 cm |
| Country of origin | Taiwan |
| Export Control Classification Number (ECCN) | EAR99 |
