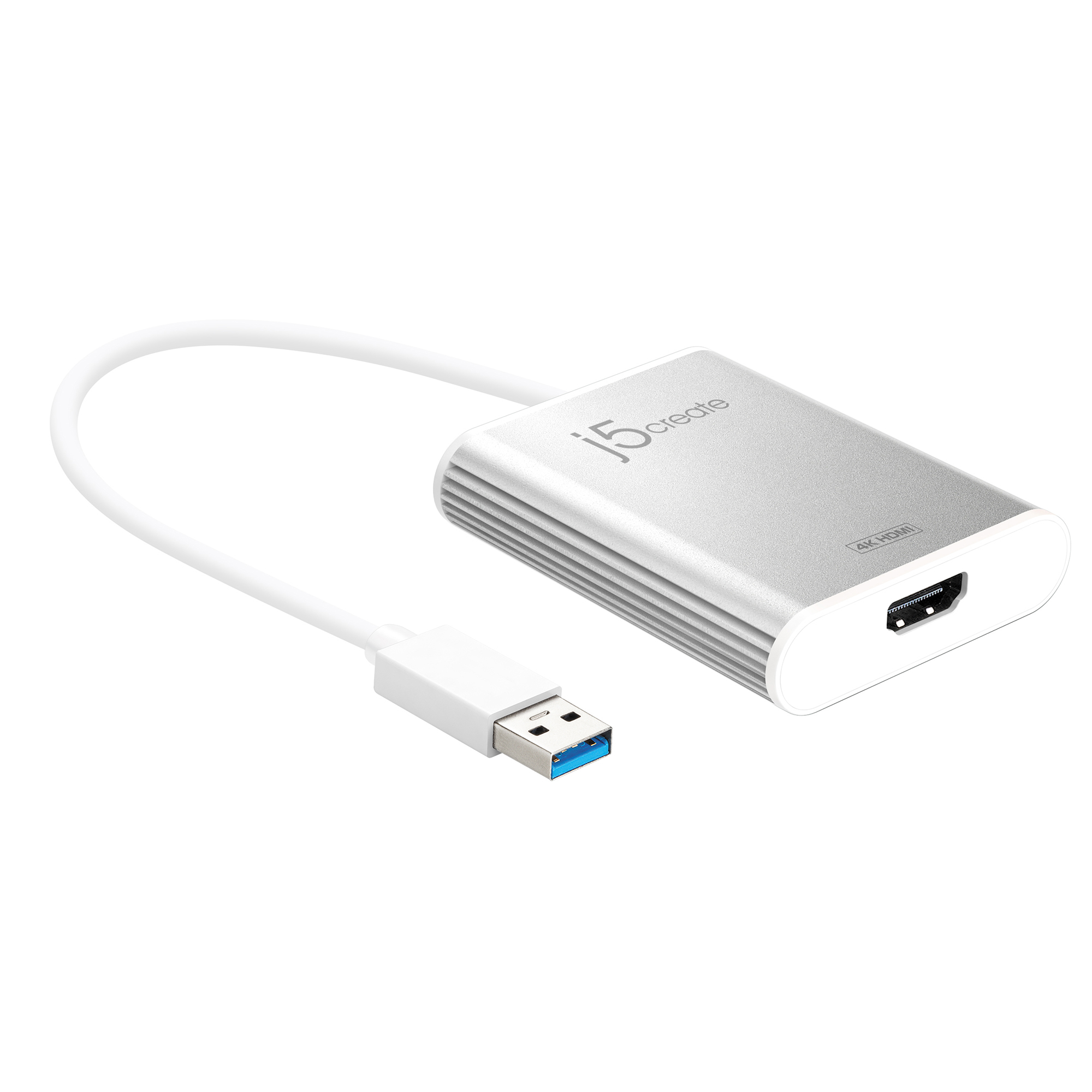

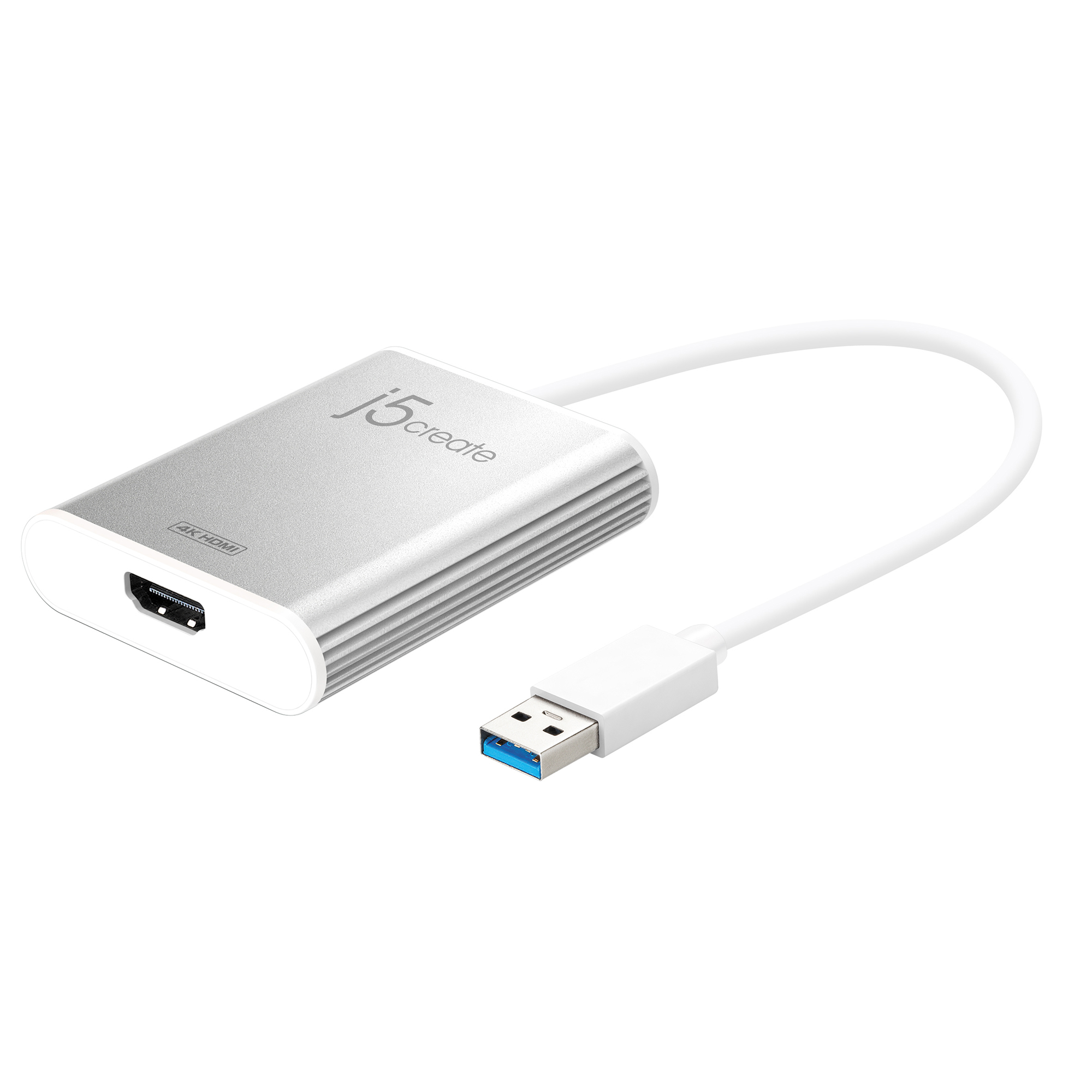

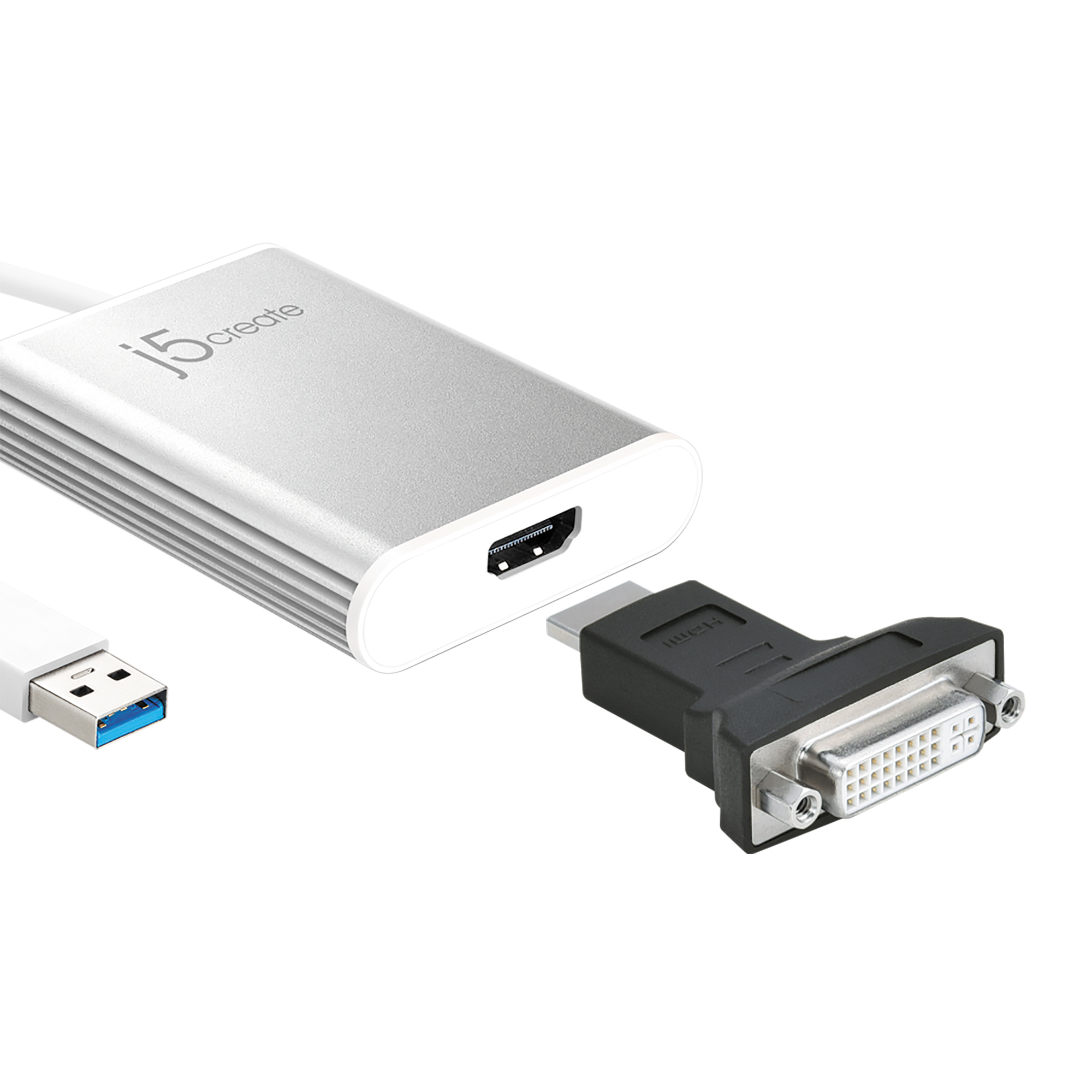

JUA354 USB™ 3.0 to 4K HDM™ Display Adapter, Silver
Model JUA354Part no. JUA354-NEAN 24712795081293
47 specifications
- Weight75.5 g
- ColourSilver
- USB version2.0/3.2 Gen 1 (3.1 Gen 1)
- Power consumption (max)2 W
- Mac compatibilityYes
- Width58 mm
Overview
- Weight
- 75.5 g
- Colour
- Silver
- USB version
- 2.0/3.2 Gen 1 (3.1 Gen 1)
- Power consumption (max)
- 2 W
- Mac compatibility
- Yes
- Width
- 58 mm
- Brand
- j5create
- Category
- USB Graphics Adapter
- Model
- JUA354
- Part number
- JUA354-N
- EAN / UPC
- 24712795081293, 4712795081299
- Also known as
- j5create JUA354 USB™ 3.0 to 4K HDM™ Display Adapter, Silver
Specifications
47 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 1 |
| HDMI ports quantity | 1 |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Current | 0.4 A |
| Data transfer rate (max) | 5 Gbit/s |
| Resolution at refresh rate | 3840 x 2160 @ 30 Hz |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Aluminium |
| Cable type | USB 3.0 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 2 W |
| Output voltage | 5 V |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Yes |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Ma |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58 mm |
| Depth | 11 mm |
| Height | 76 mm |
| Weight | 75.5 g |
| USB cable length | 0.08 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 145 mm |
| Package depth | 95 mm |
| Package height | 25 mm |
| Package weight | 120 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Batteries included | No |
| Quick installation guide | Yes |
| Packaging content | 1 x JUA354 USB™ 3.0 to 4K HDMI™ Display Adapter, 1 x Quick Installation Guide |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795081293 |
| Master (outer) case width | 225 mm |
| Master (outer) case length | 321 mm |
| Master (outer) case height | 180 mm |
| Master (outer) case gross weight | 3.1 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case width | 10.5 cm |
| Shipping (inner) case length | 15 cm |
| Shipping (inner) case height | 16 cm |
| Country of origin | Taiwan |
| Export Control Classification Number (ECCN) | EAR99 |
