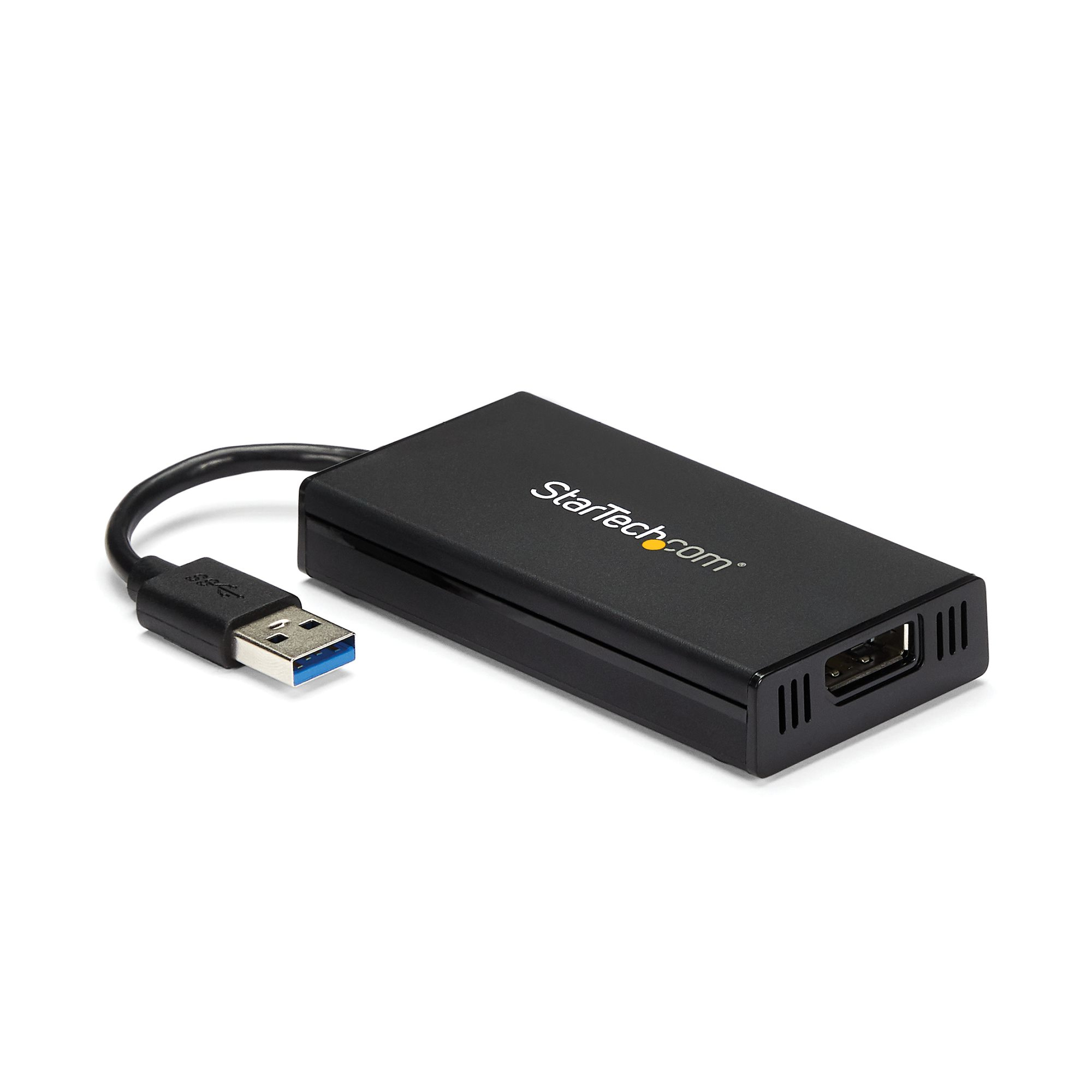

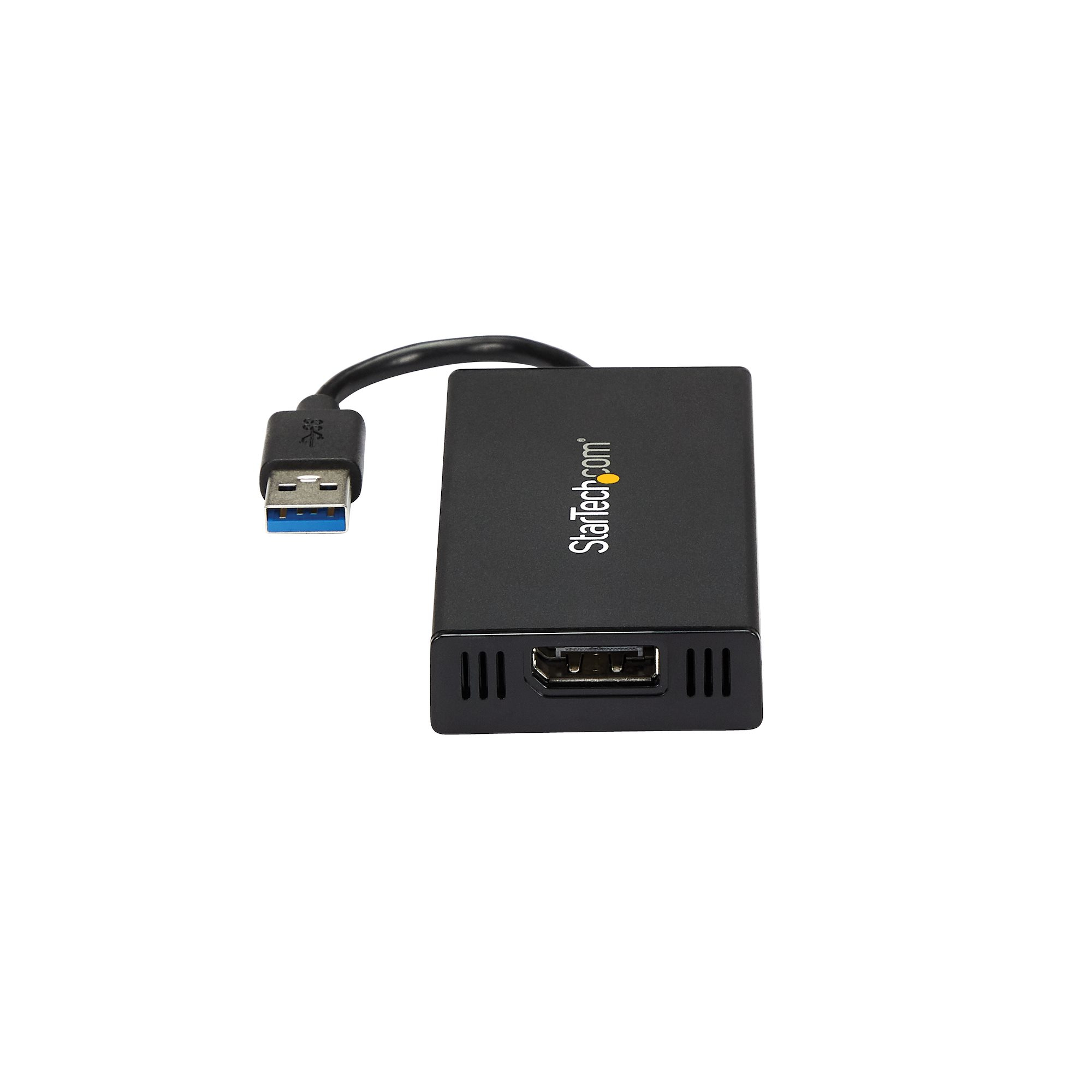

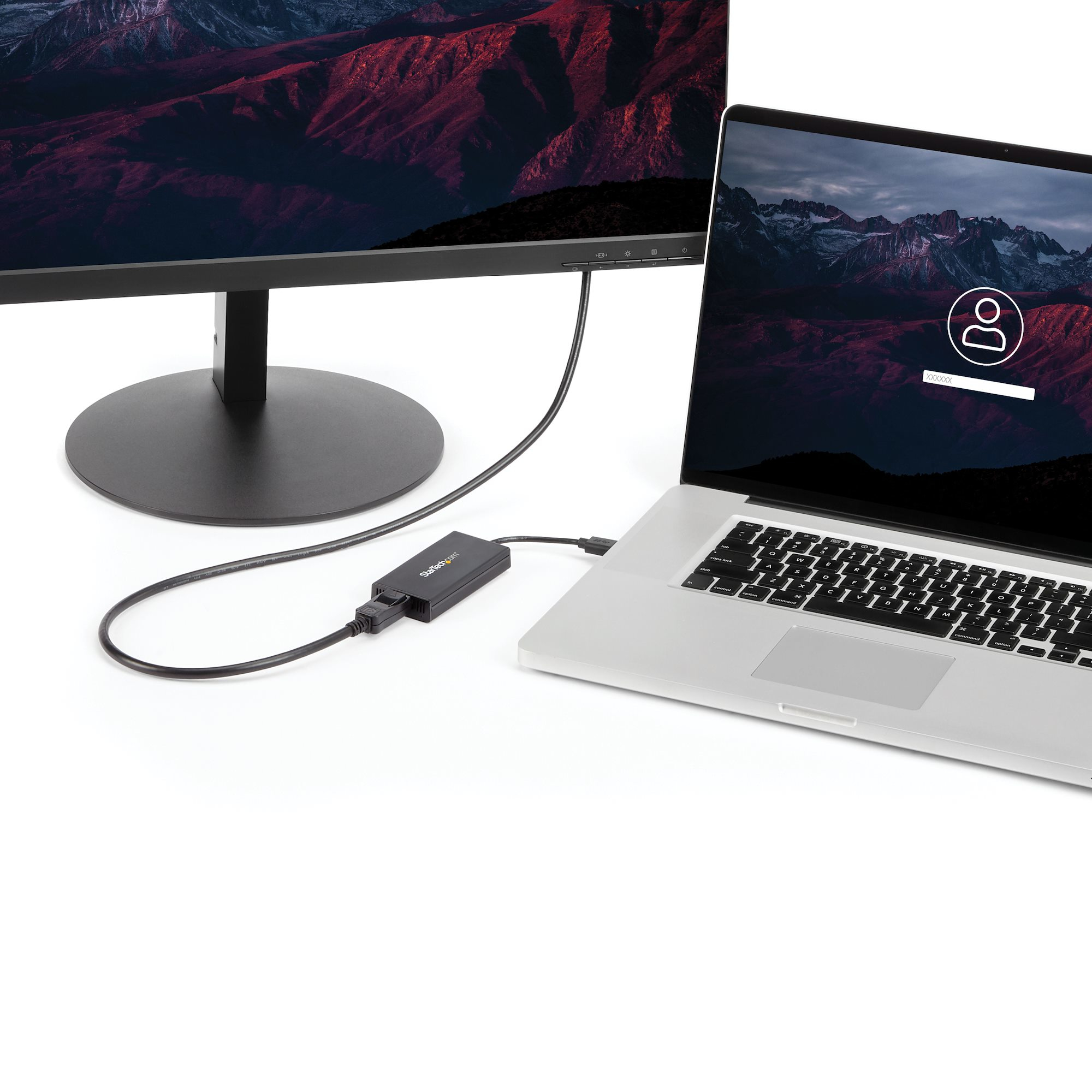

USB 3.0 to DisplayPort Adapter - DisplayLink Certified - 4K
30Hz
Model USB32DP4KEAN 8851641027404
48 specifications
- Memory1024 MB
- Weight60 g
- ColourBlack
- USB version3.2 Gen 1 (3.1 Gen 1)
- Mac compatibilityYes
- Width45 mm
Overview
- Memory
- 1024 MB
- Weight
- 60 g
- Colour
- Black
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Mac compatibility
- Yes
- Width
- 45 mm
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- USB32DP4K
- Part number
- USB32DP4K
- EAN / UPC
- 8851641027404, 065030858380, 650308583806, 723856188332 +4 more
- Also known as
- StarTech.com USB 3.0 to DisplayPort Adapter - DisplayLink Certified - 4K 30Hz
Specifications
48 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A |
| USB connector gender | Male |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| Internal memory | 1024 MB |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Supported graphics resolutions | 1280 x 800, 1366 x 768, 2048 x 1152, 3840 x 2160, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Supported video modes | 480p, 720p, 1080p, 2160p |
| Audio output channels | 2.0 channels |
| Chipset | DisplayLink - DL-5500 |
| USB pass-through | No |
| Certification | CE, FCC, TAA, DisplayLink, REACH |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Integrated USB cable | Yes |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7, |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04 |
| Other operating systems supported | ChromeOS |
| Minimum processor family | Core i5 |
| Minimum processor speed | 2.4 GHz |
| Minimum RAM | 4 TB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 45 mm |
| Depth | 90 mm |
| Height | 15 mm |
| Weight | 60 g |
| USB cable length | 0.063 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 144 mm |
| Package depth | 211 mm |
| Package height | 38 mm |
| Package weight | 204 g |

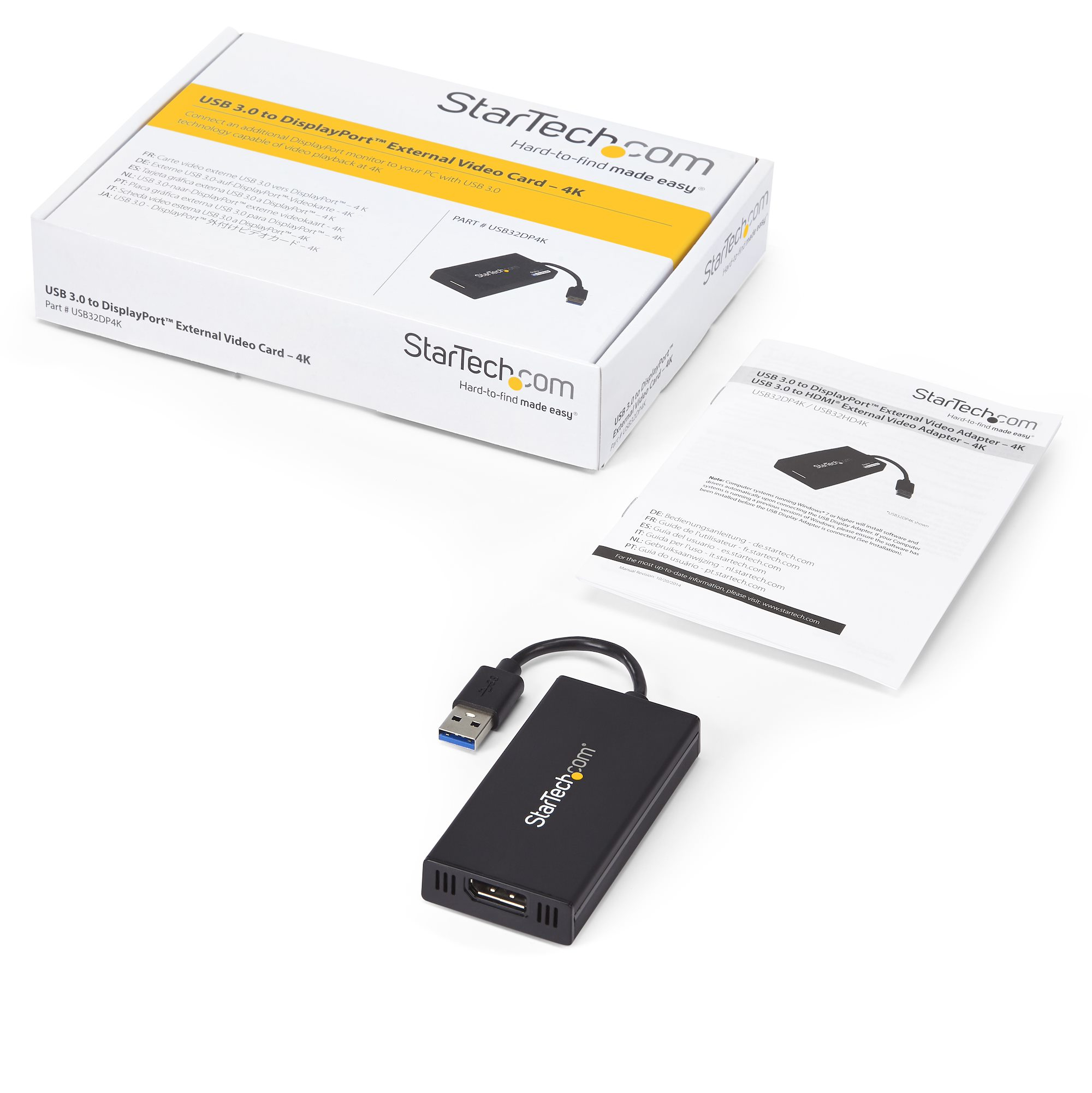

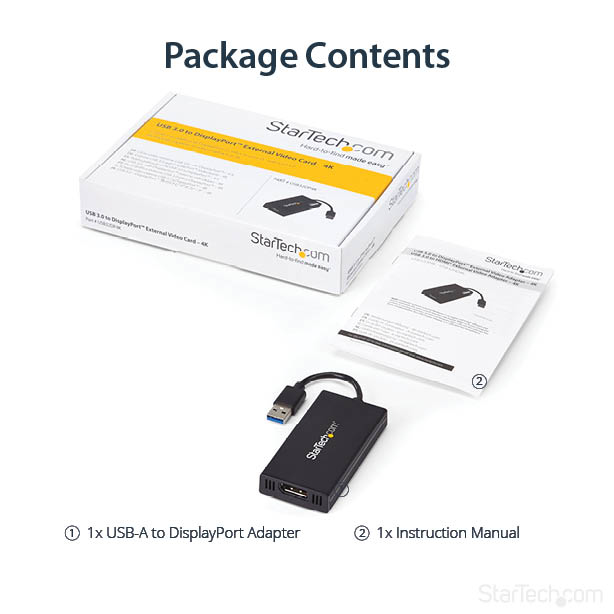

Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Software CD | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 240 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 319 mm |
| Harmonized System (HS) code | 84733020 |
