j5create Notebook Accessories
j5create

Notebook Accessories

Model Notebook AccessoriesPart no. JCA366-NEAN 4712795083934

53 specifications
  • Weight152.5 g
  • ColourSilver
  • USB version3.2 Gen 1 (3.1 Gen 1)
  • Power consumption (max)4.5 W
  • Mac compatibilityYes
  • Width101.5 mm
See all specifications

Overview

Weight
152.5 g
Colour
Silver
USB version
3.2 Gen 1 (3.1 Gen 1)
Power consumption (max)
4.5 W
Mac compatibility
Yes
Width
101.5 mm
Brand
j5create
Model
Notebook Accessories
Part number
JCA366-N
EAN / UPC
4712795083934
Also known as

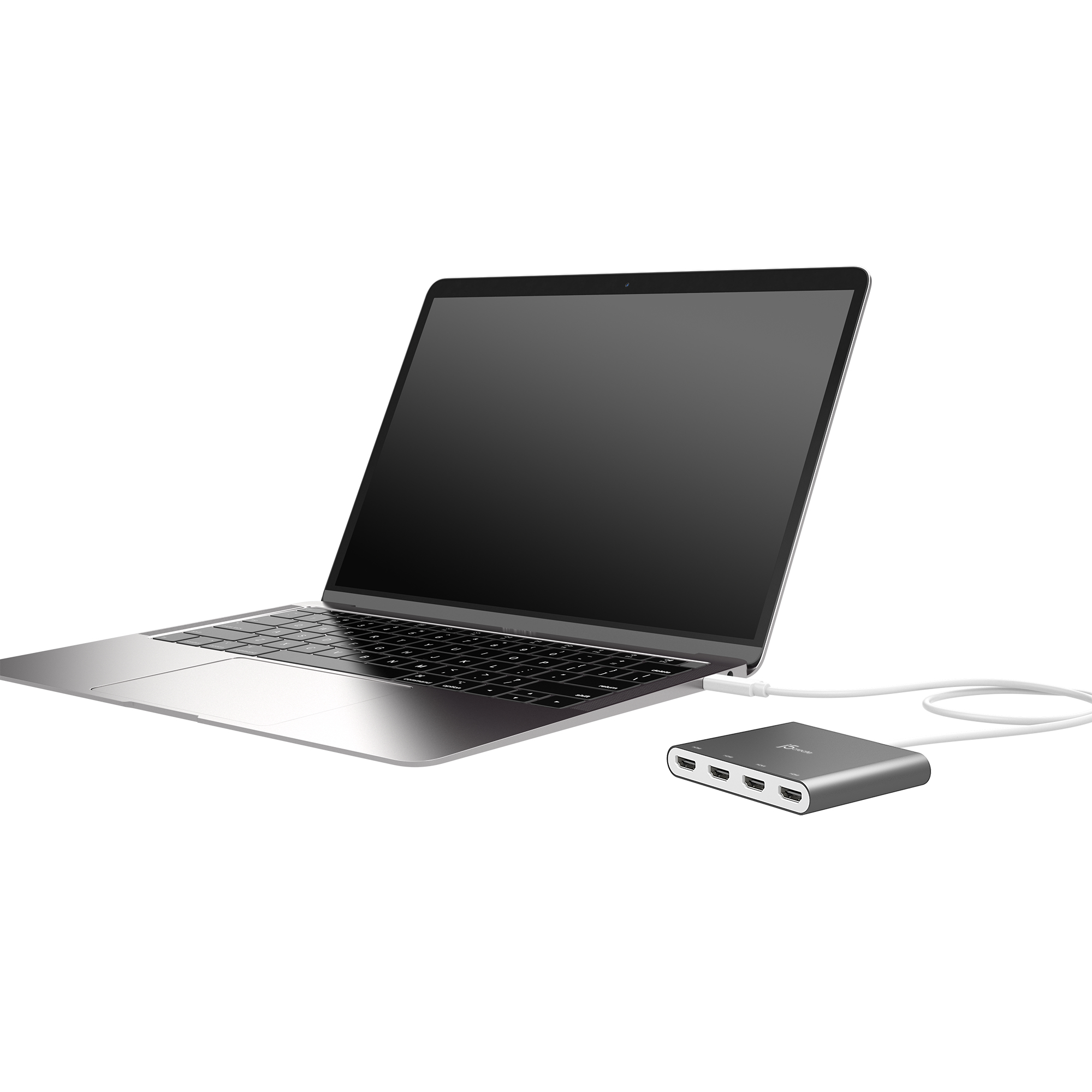

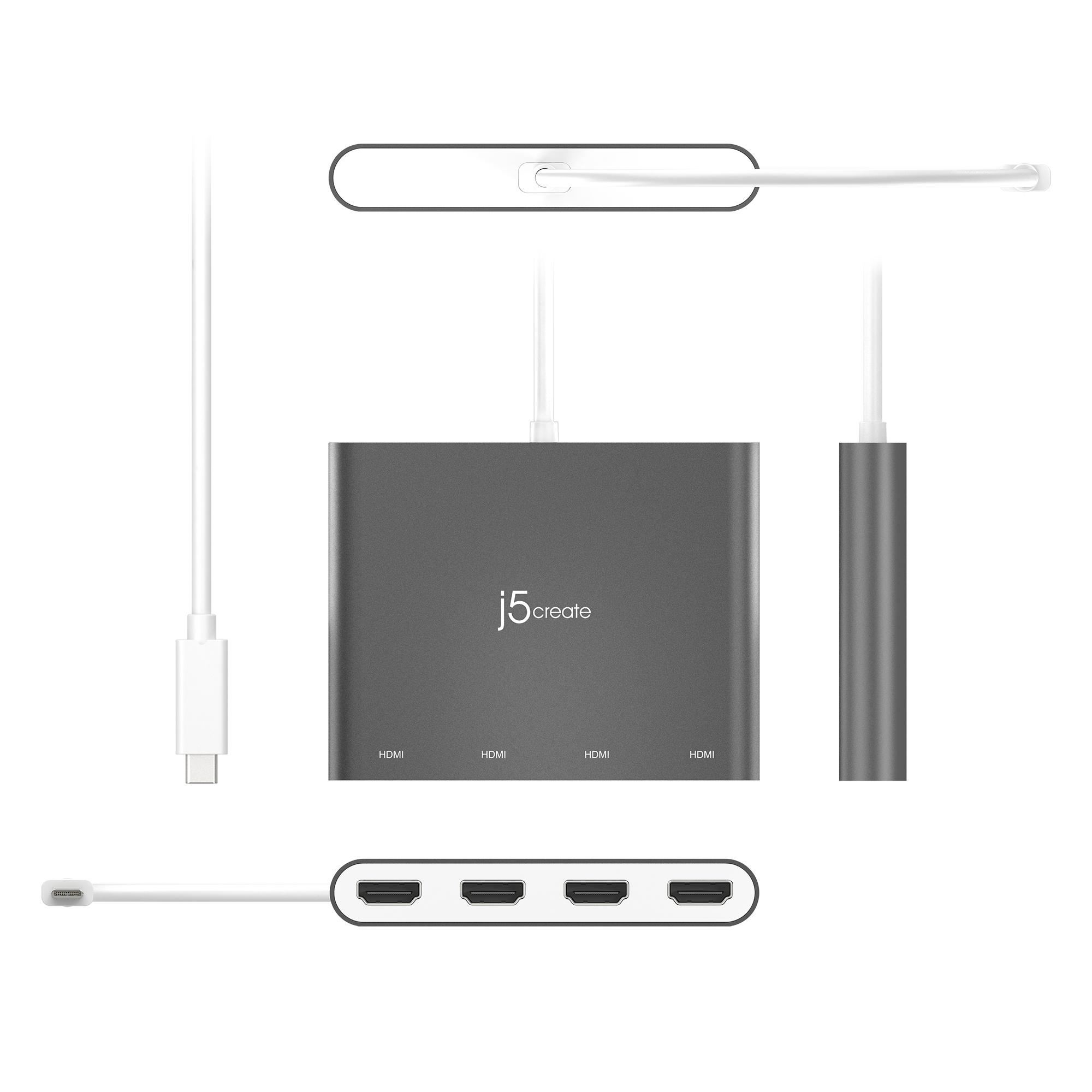

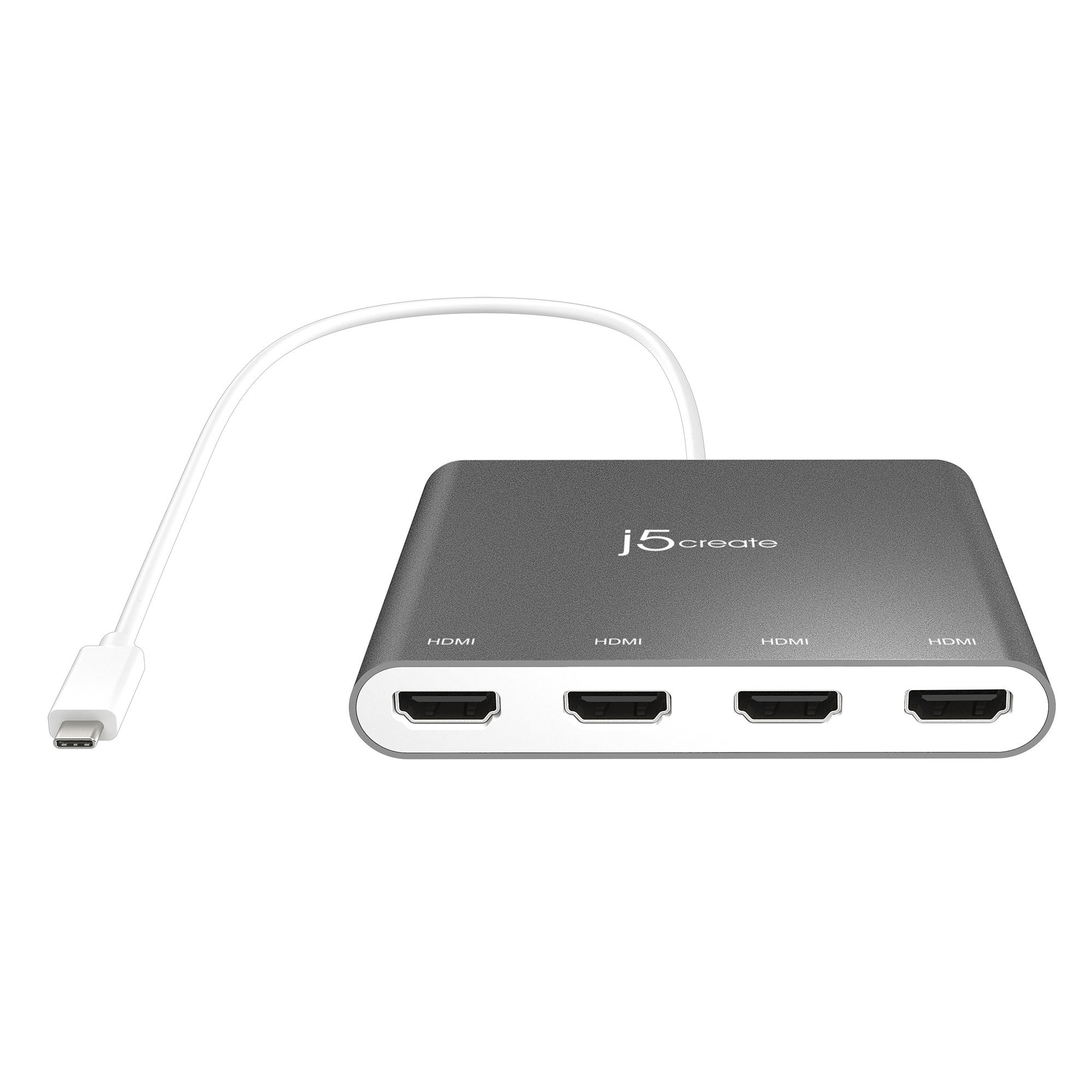

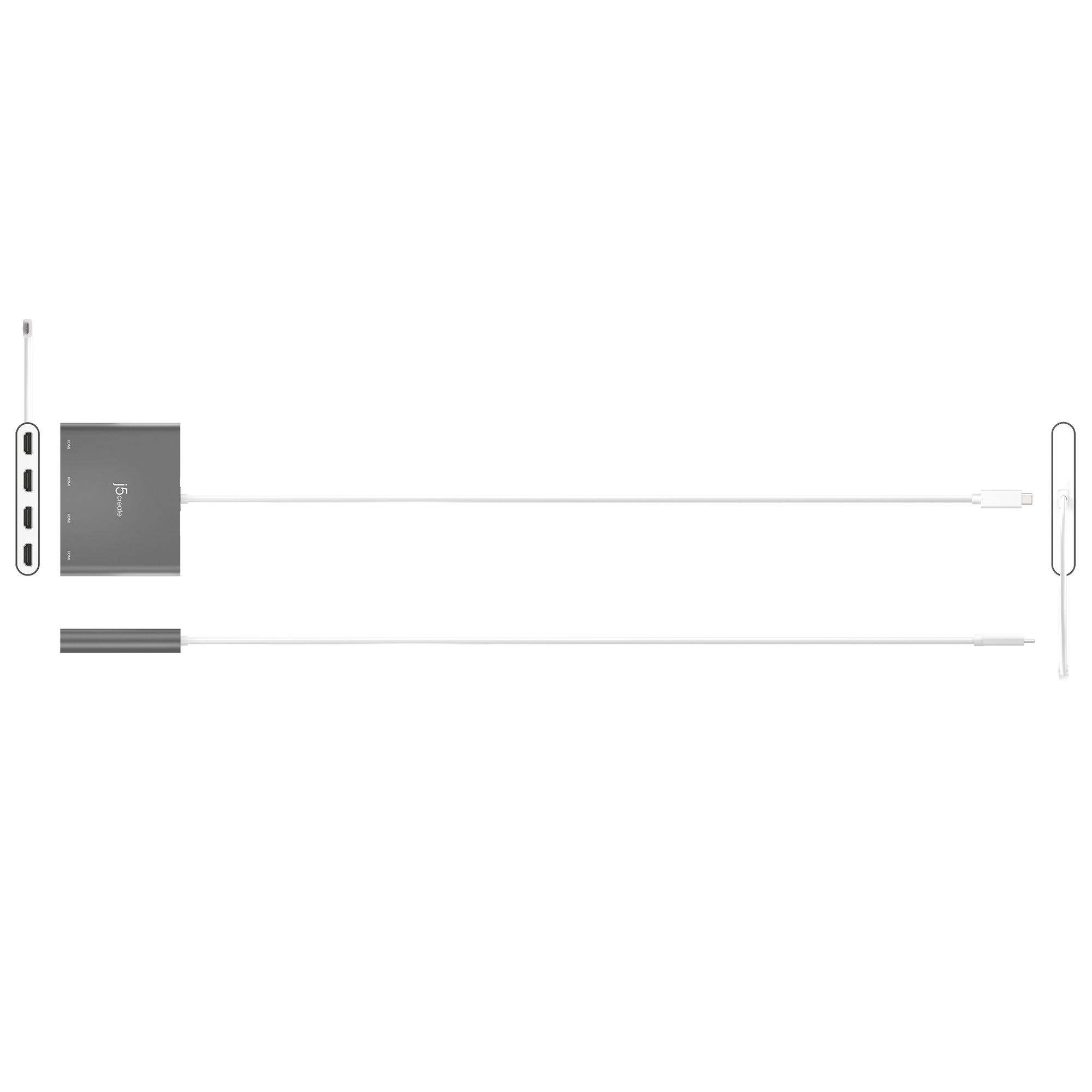

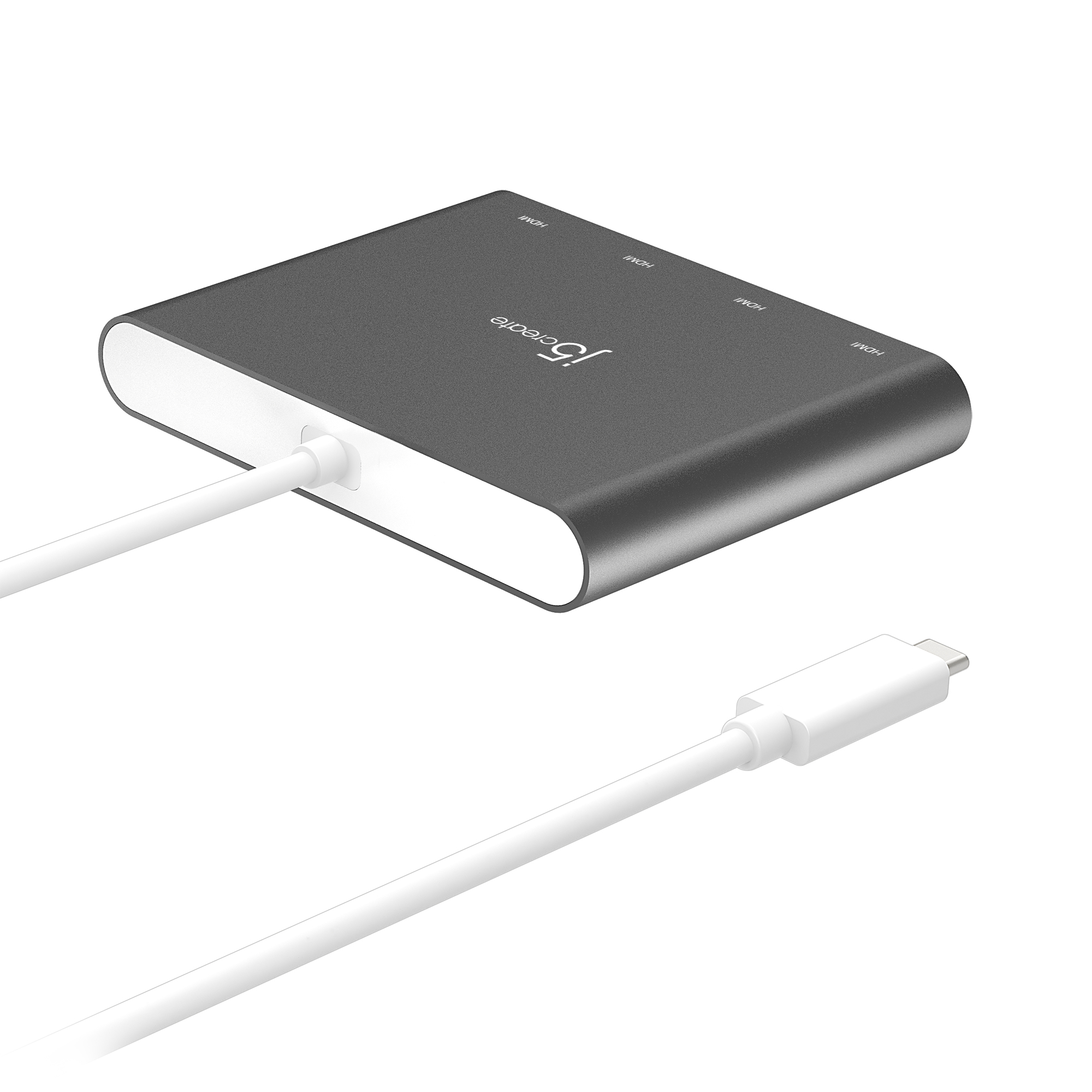

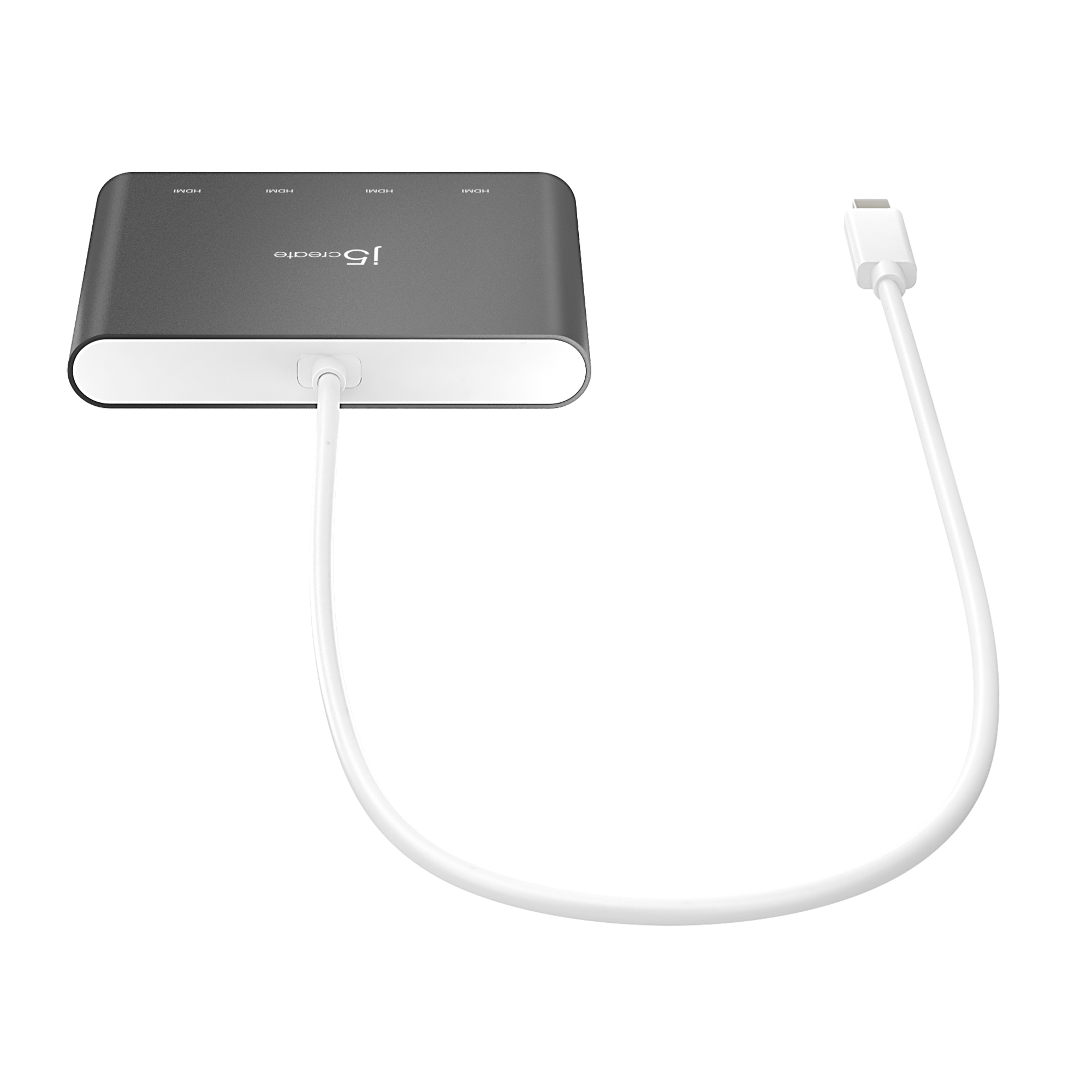

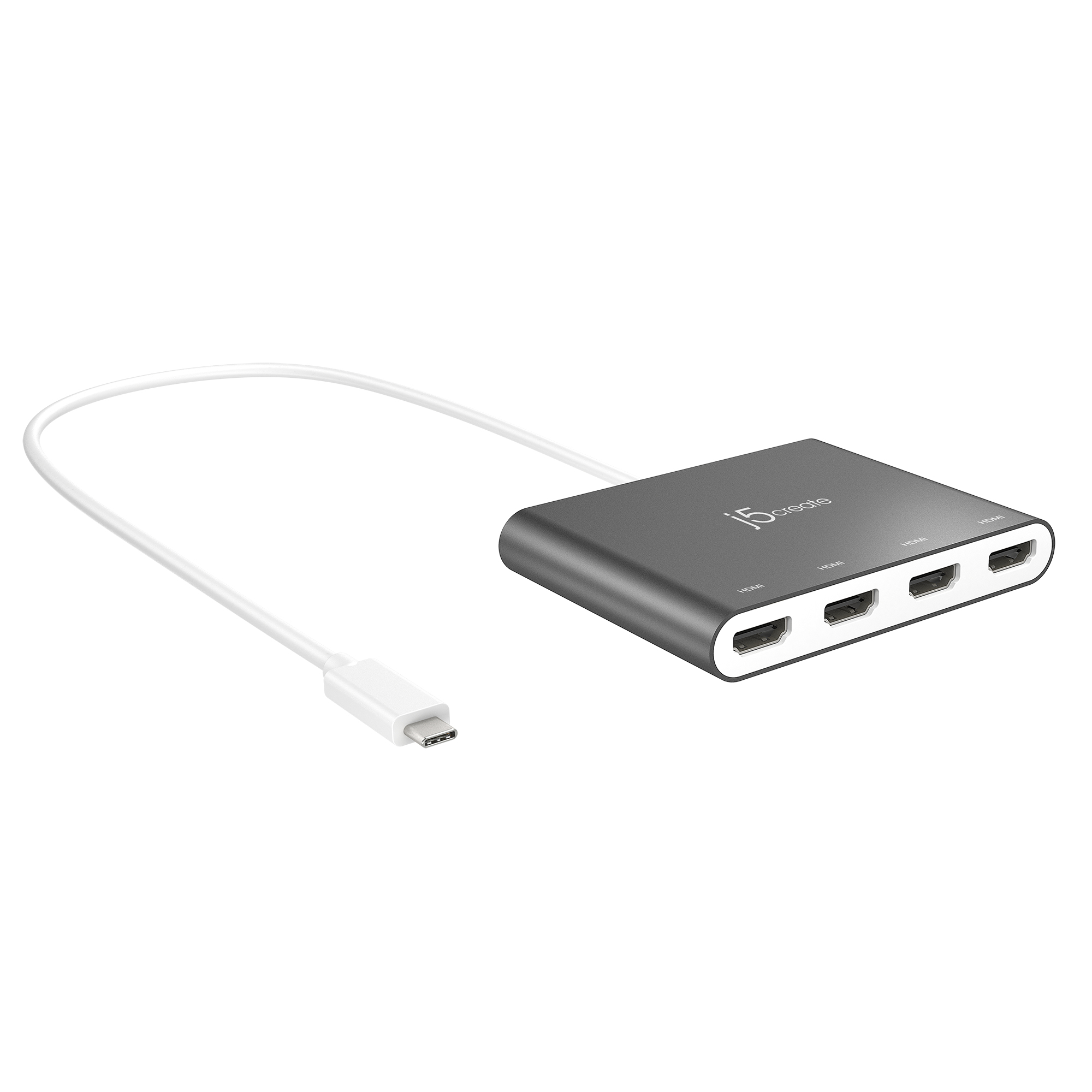

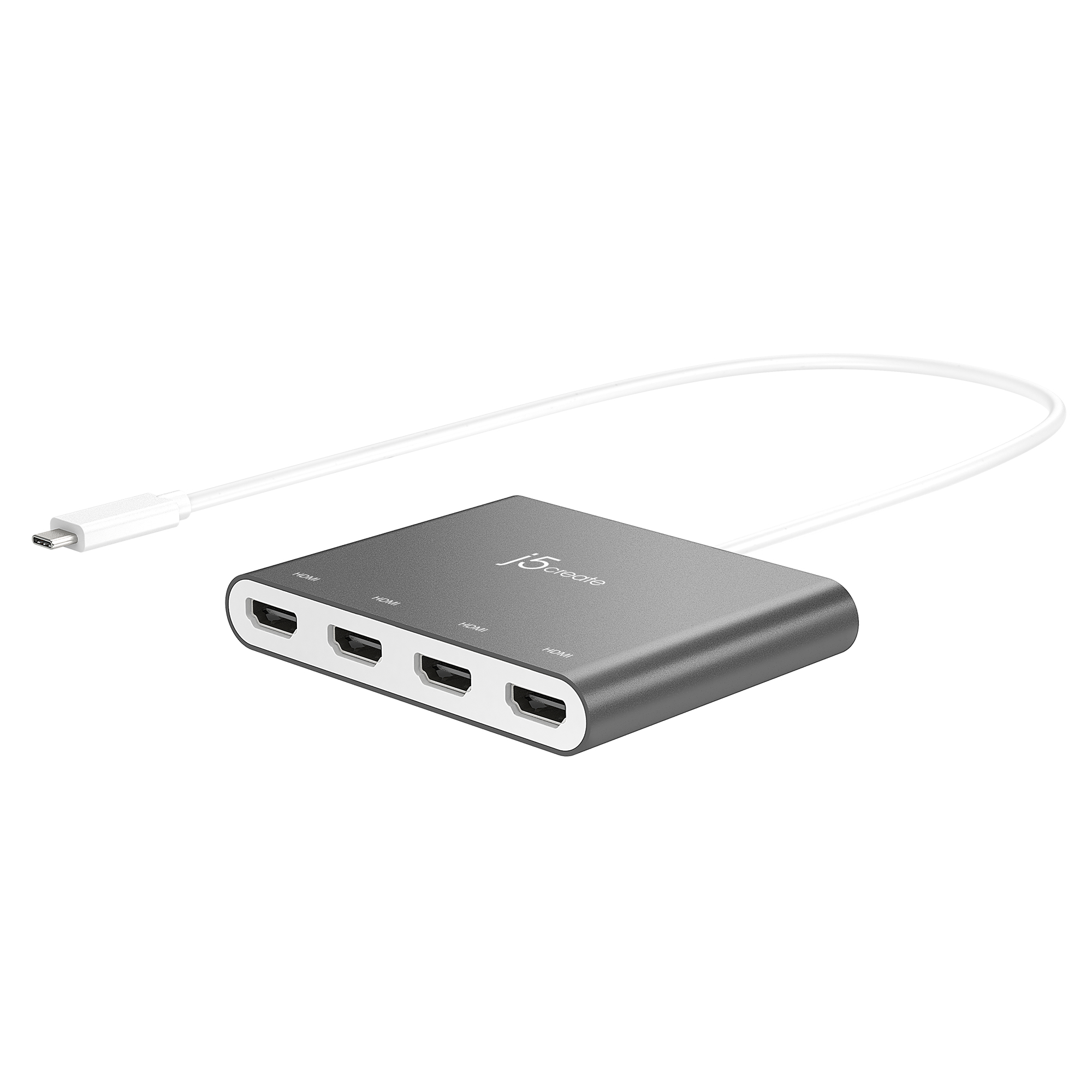

j5create JCA366-N USB-C™ to 4-Port HDMI™ Multi-Monitor Adapter, Silver

Specifications

53 specifications in 10 groups

Performance

USB version3.2 Gen 1 (3.1 Gen 1)
USB connector typeUSB Type-C
USB connector genderMale
USB connector form factorStraight
DVI outputNo
HDMI outputYes
DisplayPort outputNo

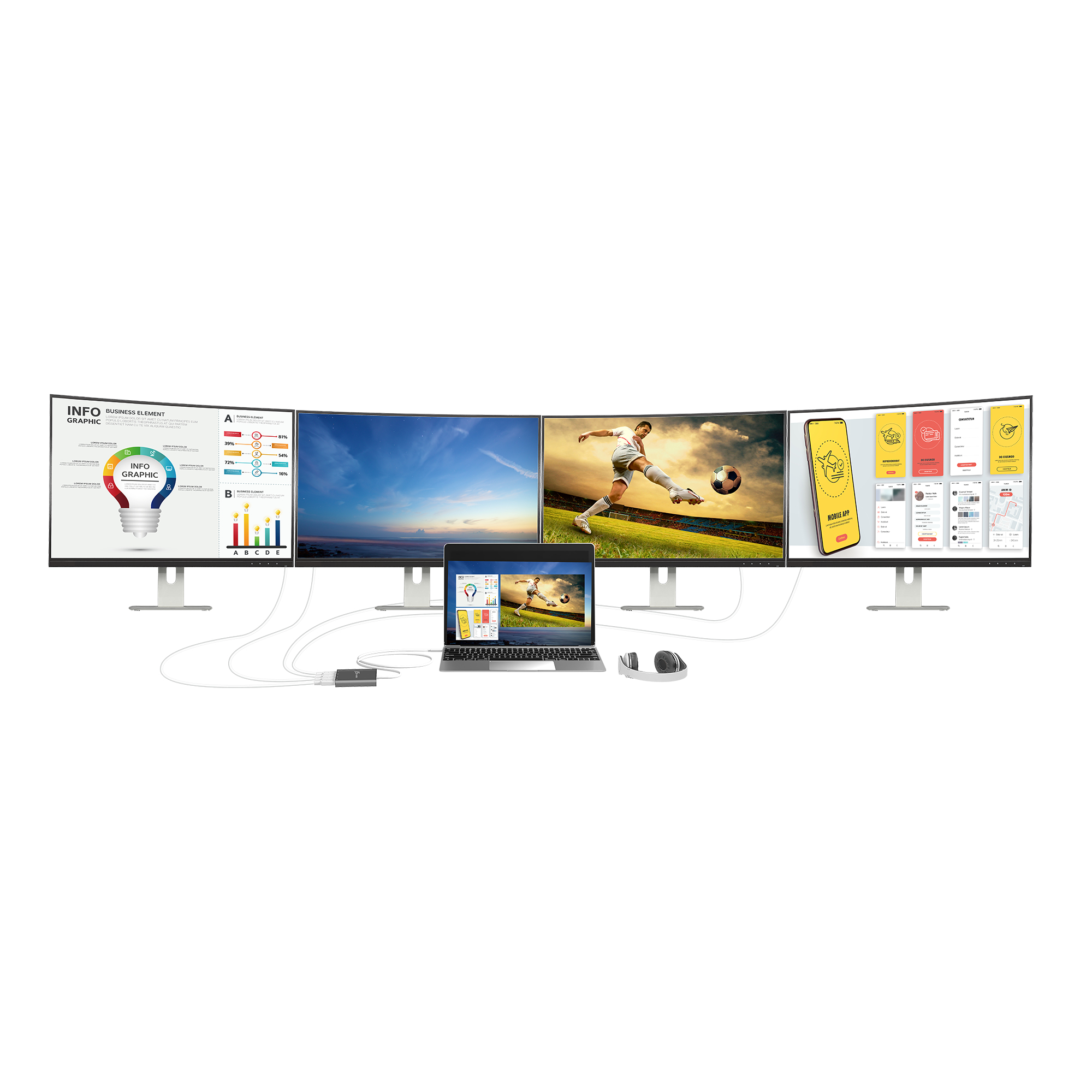

Number of displays supported4
HDMI ports quantity4
Maximum resolution1920 x 1080 pixels
Refresh rate at maximum resolution60 Hz
Maximum resolution (HDMI)1920 x 1080 pixels
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported video modes1080p
Extended display modeYes
Current0.9 A
Data transfer rate (max)5 Gbit/s

Design

Product colourSilver
Housing materialAluminium
Integrated USB cableYes

Power

Power consumption (max)4.5 W
Output voltage5 V

System requirements

Mac compatibilityYes
Windows operating systems supportedWindows 10
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Linux operating systems supportedNo
Minimum processor familyCore i5, Core i7
Minimum RAM4 GB

Weight & dimensions

Width101.5 mm
Depth16 mm
Height79.5 mm
Weight152.5 g
USB cable length0.5 m

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 71 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)0 - 85%

Packaging data

Package width193 mm
Package depth125 mm
Package height22.5 mm
Package weight217.5 g

Packaging content

ManualYes
Quick installation guideYes
Packaging content1 x JCA366 USB-C® to 4-Port HDMI™ Multi-Monitor Adapter, 1 x Quick Installation Guide

Technical details

Warranty period2 year(s)

Logistics data

Products per master (outer) case18 pc(s)
Master (outer) case GTIN (EAN/UPC)24712795083938
Master (outer) case width226 mm
Master (outer) case length445 mm
Master (outer) case height190 mm
Master (outer) case gross weight4.86 kg
Country of originTaiwan
Export Control Classification Number (ECCN)EAR99
