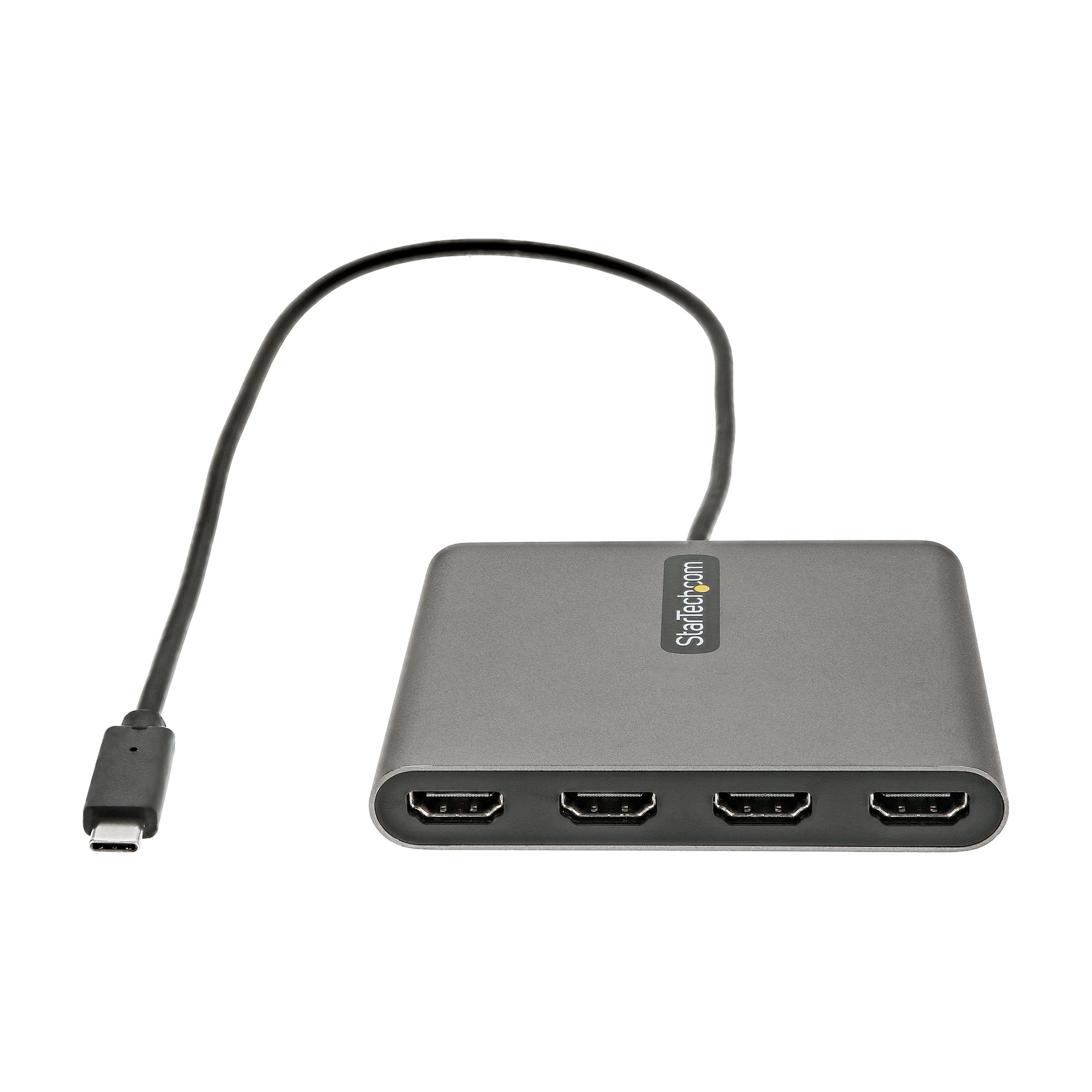

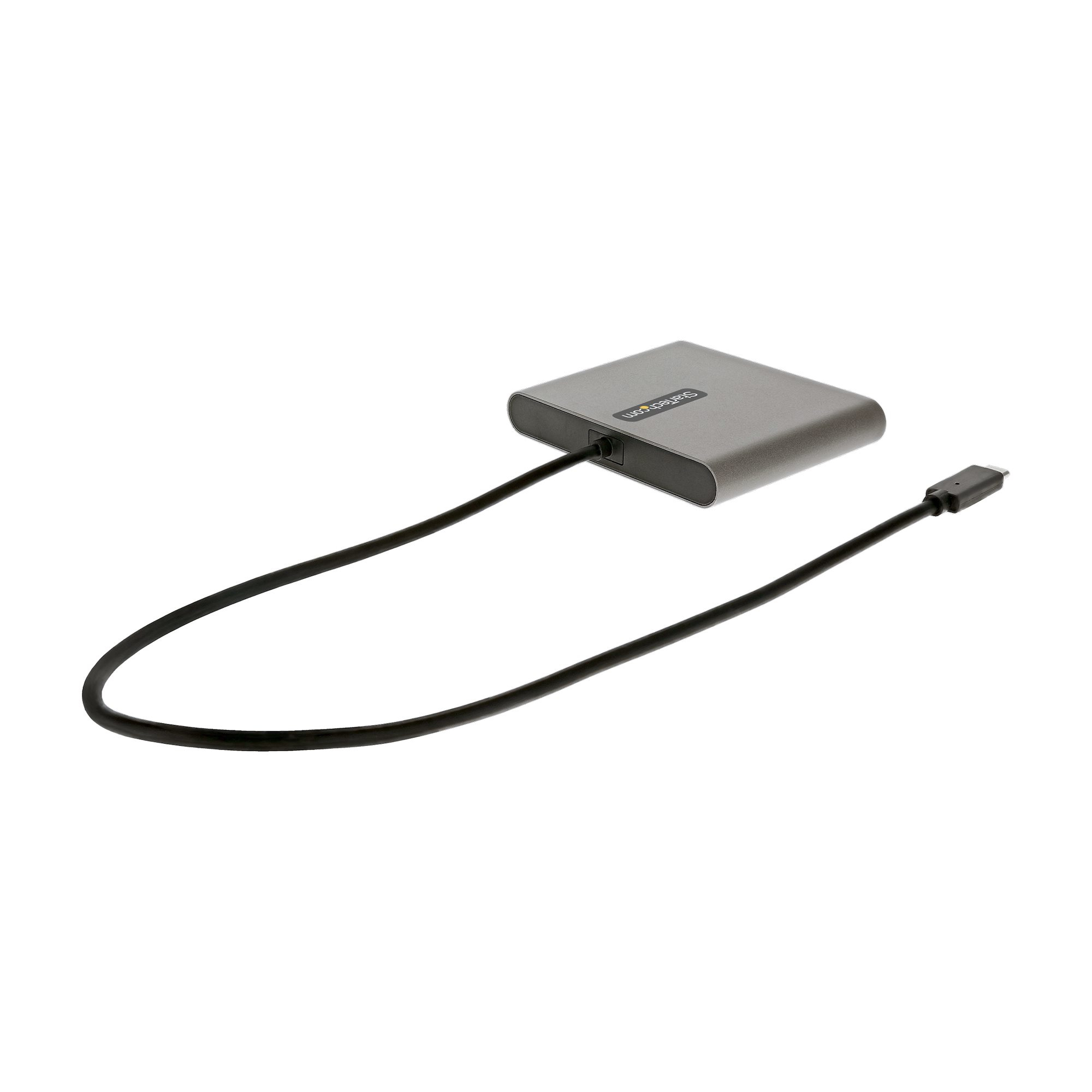

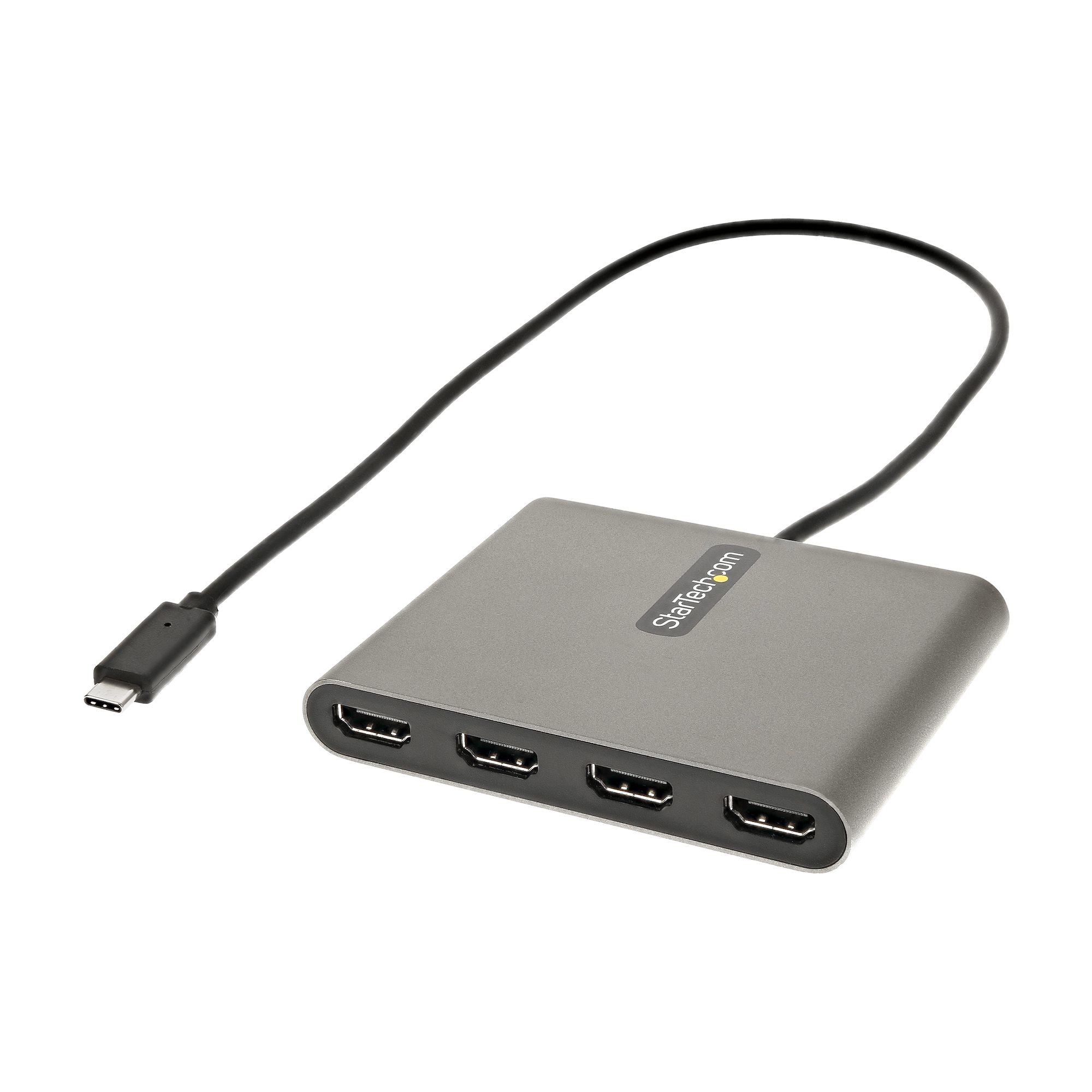

USB C to Quad HDMI Adapter, USB-C to 4x HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA
Model USBC2HD4EAN 065030888714
32 specifications
- Weight165 g
- ColourGrey
- USB connector typeUSB Type-C
- Width80 mm
- Operating temperature (T-T)0 - 45 °C
- Compliance certificatesCE, RoHS
Overview
- Weight
- 165 g
- Colour
- Grey
- USB connector type
- USB Type-C
- Width
- 80 mm
- Operating temperature (T-T)
- 0 - 45 °C
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- USBC2HD4
- Part number
- USBC2HD4
- EAN / UPC
- 065030888714
- Also known as
- StarTech.com USB C to Quad HDMI Adapter, USB-C to 4x HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA
Specifications
32 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |

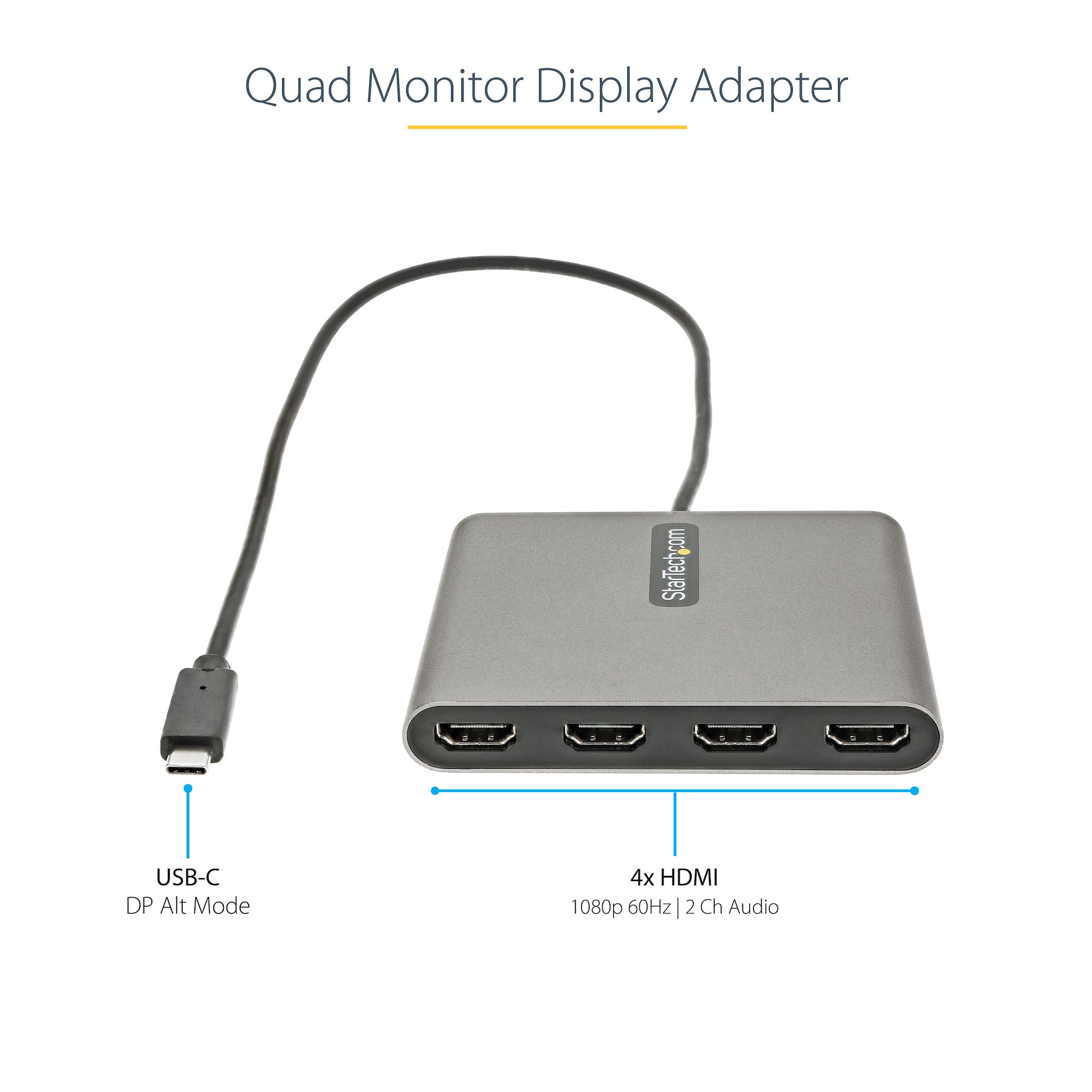

| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 5 |
| HDMI ports quantity | 4 |
| Maximum resolution | 1920 x 1080 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 2.0 channels |
| Chipset | Trigger T6-688SL, IT66121 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |

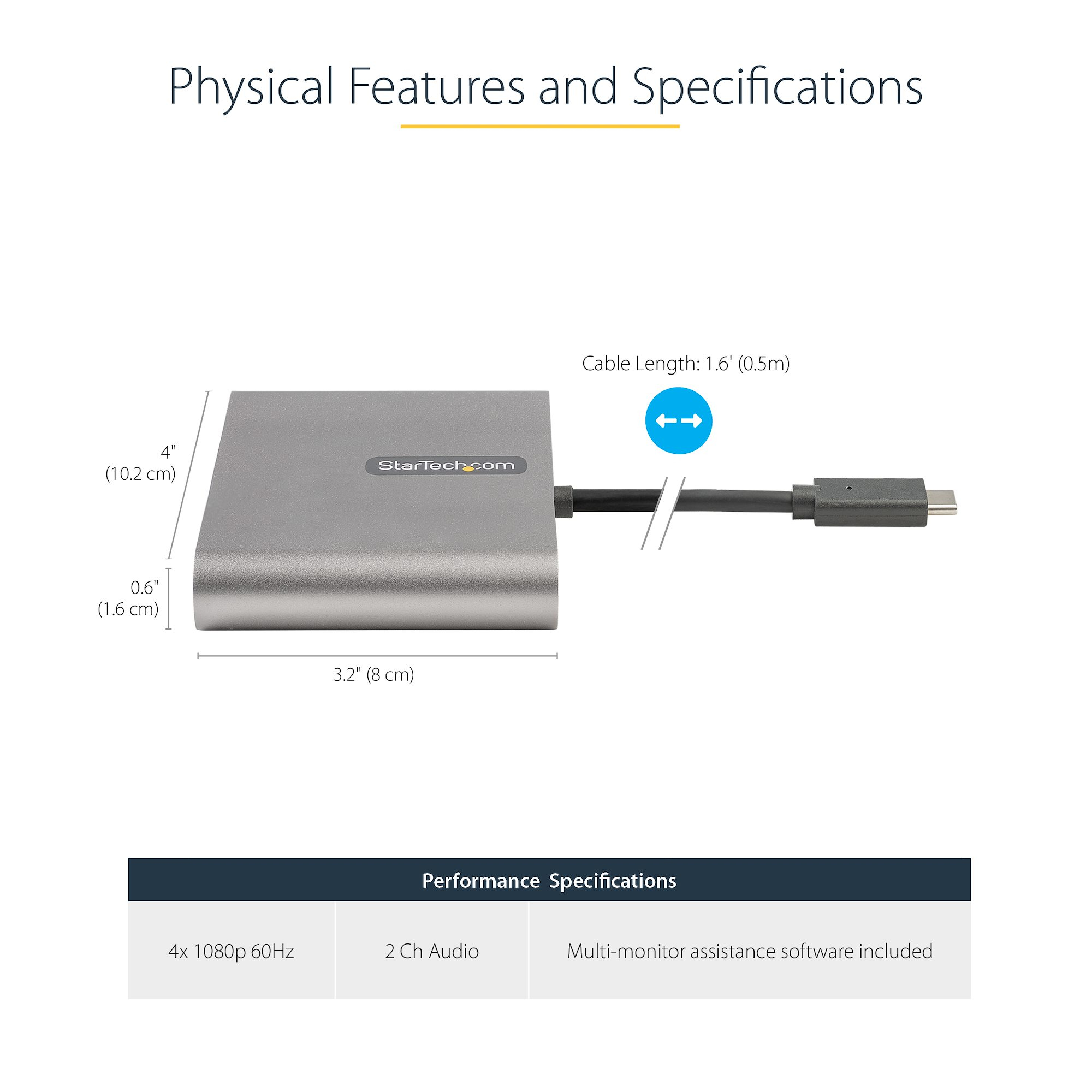

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 101 mm |
| Height | 16 mm |
| Weight | 165 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 75 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 144 mm |
| Package depth | 213 mm |
| Package height | 42 mm |
| Package weight | 268 g |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 459 mm |
| Master (outer) case length | 322 mm |
| Master (outer) case height | 443 mm |
| Harmonized System (HS) code | 84733020 |
