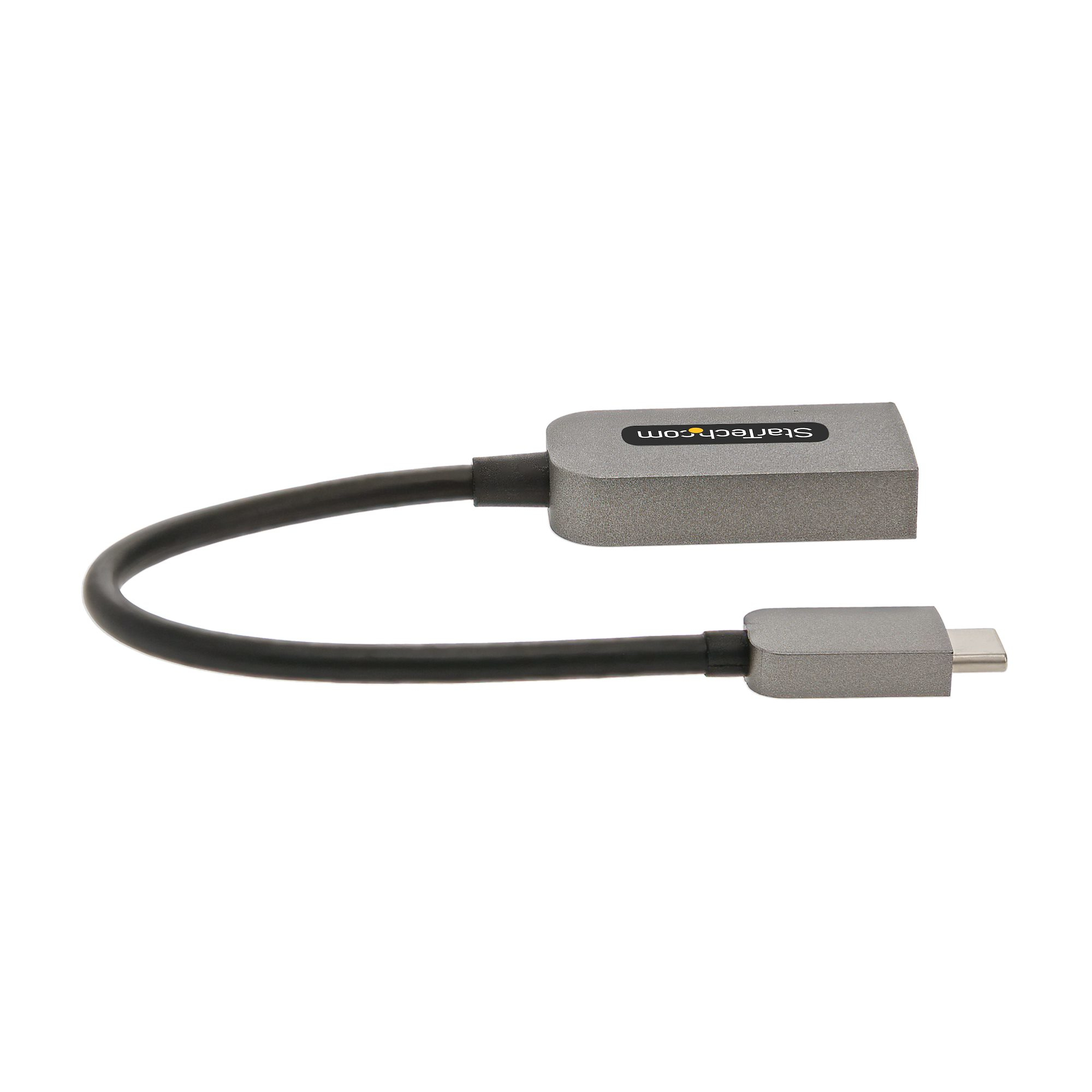

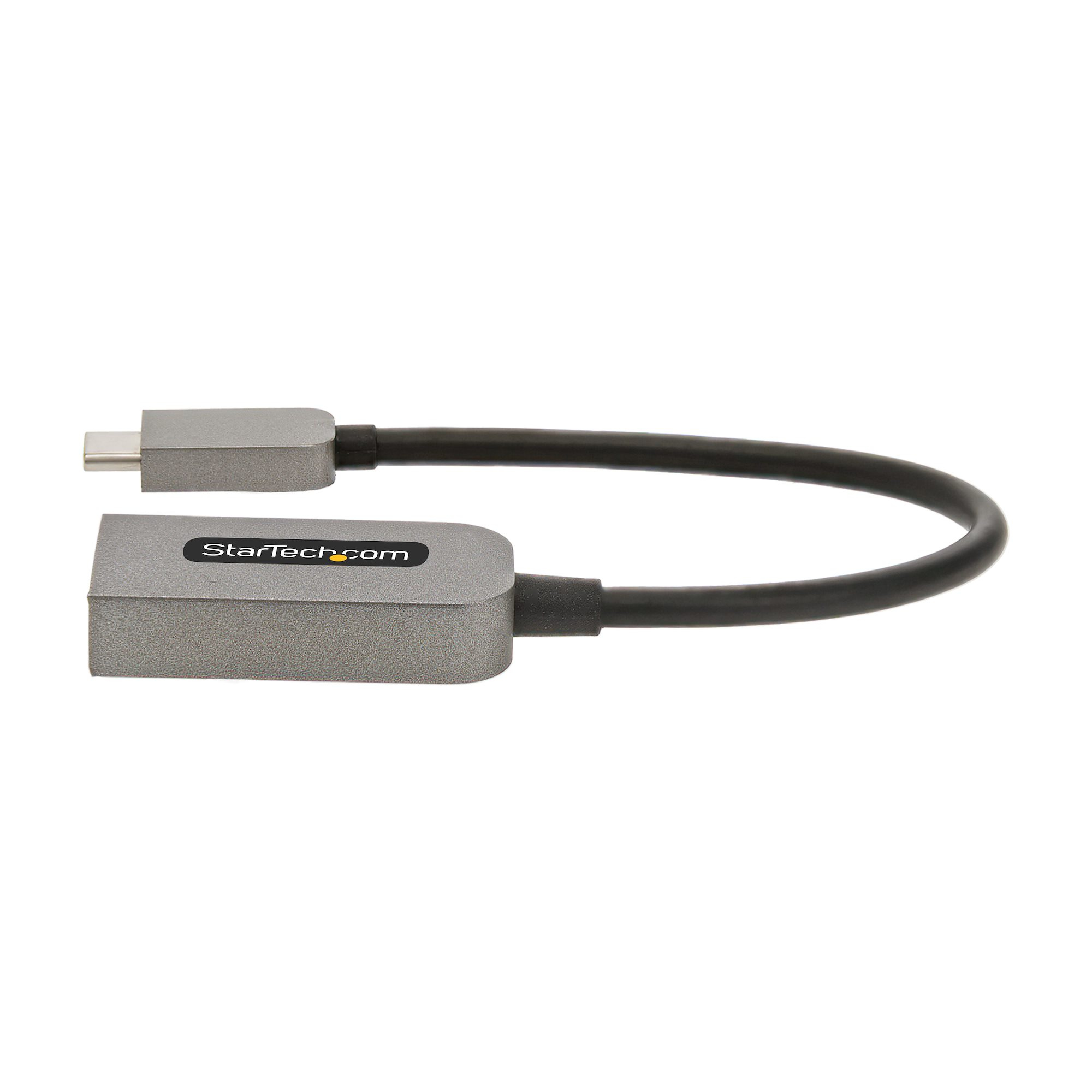

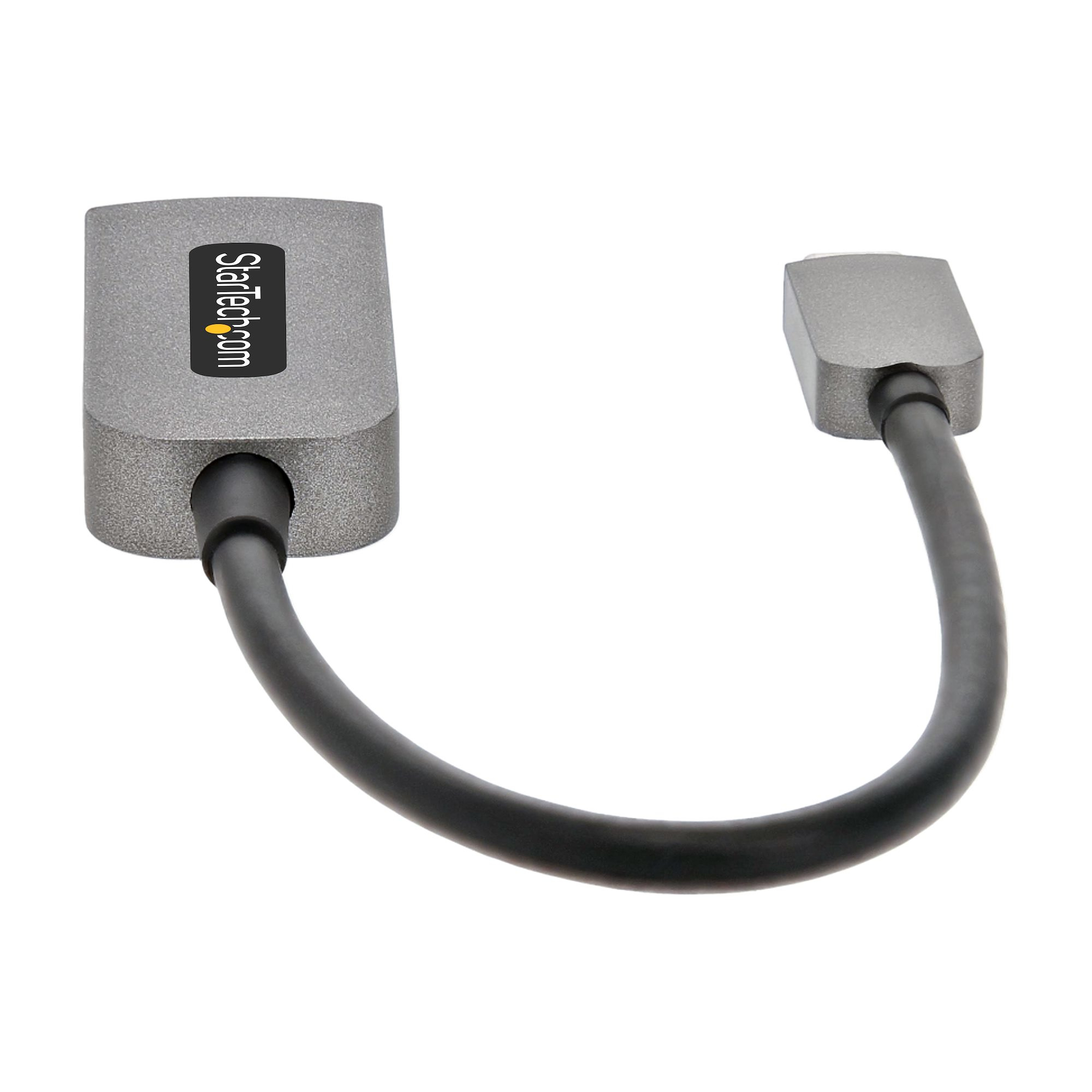

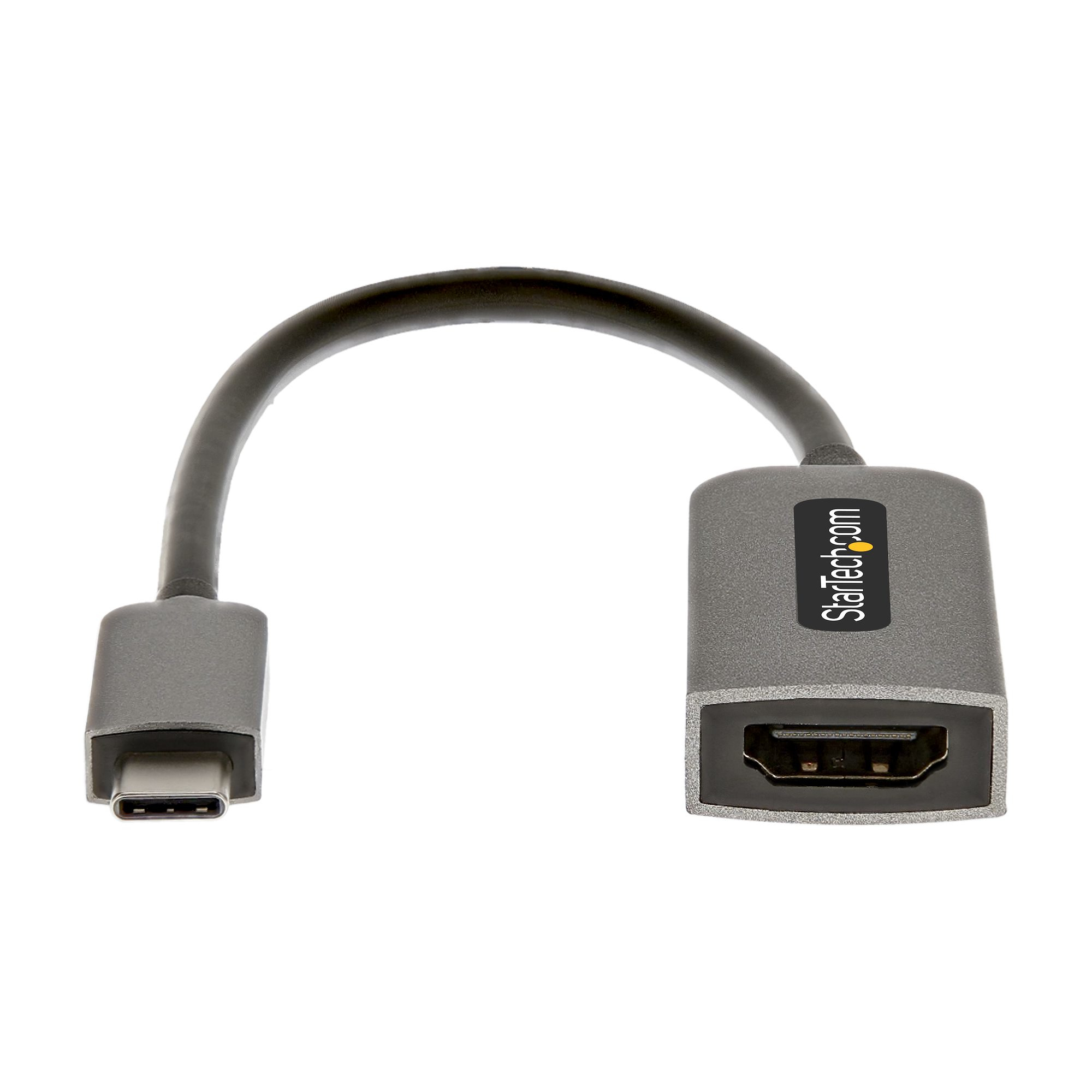

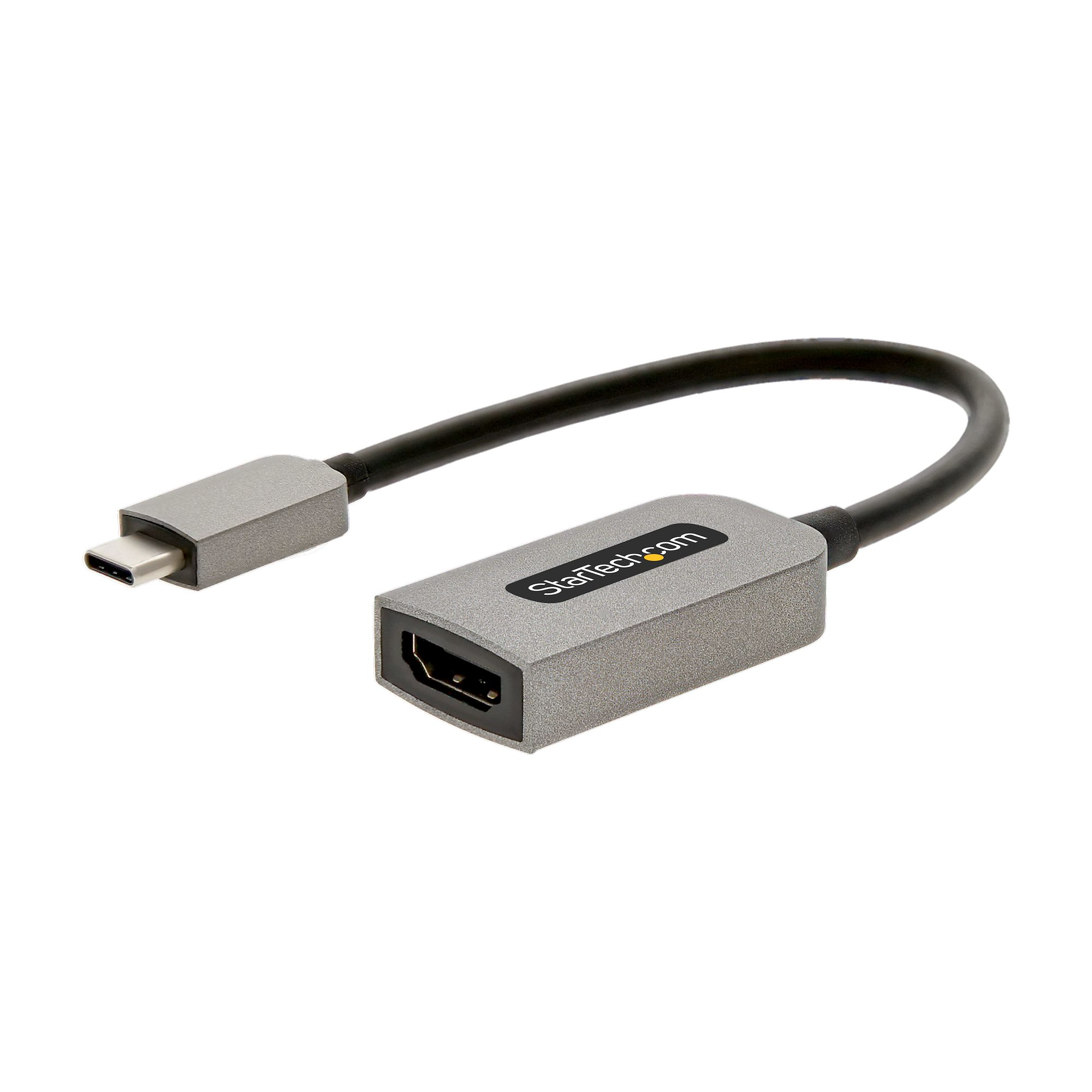

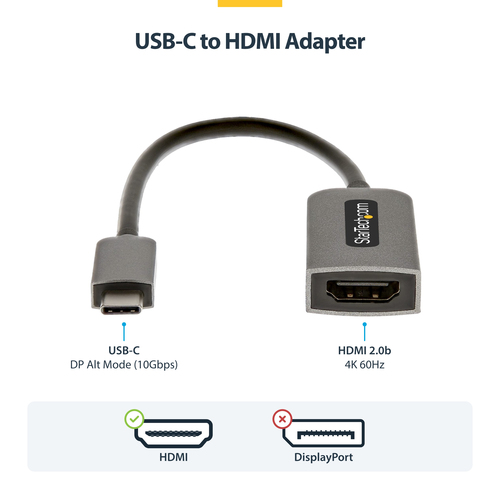

USB-C to HDMI Adapter, 4K
60Hz Video, HDR10, USB-C to HDMI Monitor Dongle, USB4 / Thunderbolt Compatible
Model USBC-HDMI-CDP2HD4K60EAN 065030893787
32 specifications
- Weight16 g
- ColourGrey
- USB connector typeUSB Type-C
- Depth44 mm
- Operating temperature (T-T)5 - 35 °C
- Compliance certificatesCE, RoHS
Overview
- Weight
- 16 g
- Colour
- Grey
- USB connector type
- USB Type-C
- Depth
- 44 mm
- Operating temperature (T-T)
- 5 - 35 °C
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- USBC-HDMI-CDP2HD4K60
- Part number
- USBC-HDMI-CDP2HD4K60
- EAN / UPC
- 065030893787
- Also known as
- StarTech.com USB-C to HDMI Adapter, 4K 60Hz Video, HDR10, USB-C to HDMI Monitor Dongle, USB4 / Thunderbolt Compatible
Specifications
32 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 1 |
| HDMI version | 2.0b |
| HDCP | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Audio output channels | 2.0 channels |
| Chipset | ANX7517 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 44 mm |
| Height | 10.5 mm |
| Weight | 16 g |
| USB cable length | 0.13 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 25 - 60% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 128 mm |
| Package depth | 125 mm |
| Package height | 14 mm |
| Package weight | 22 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 300 pc(s) |
| Master (outer) case width | 507 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 217 mm |
| Harmonized System (HS) code | 84733020 |
