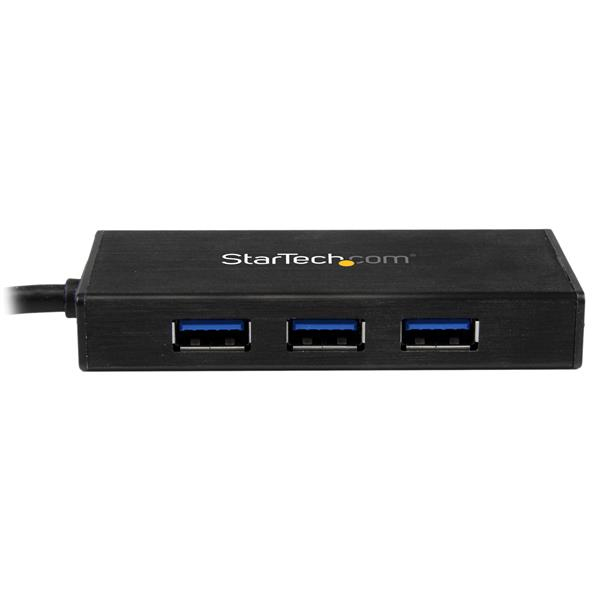

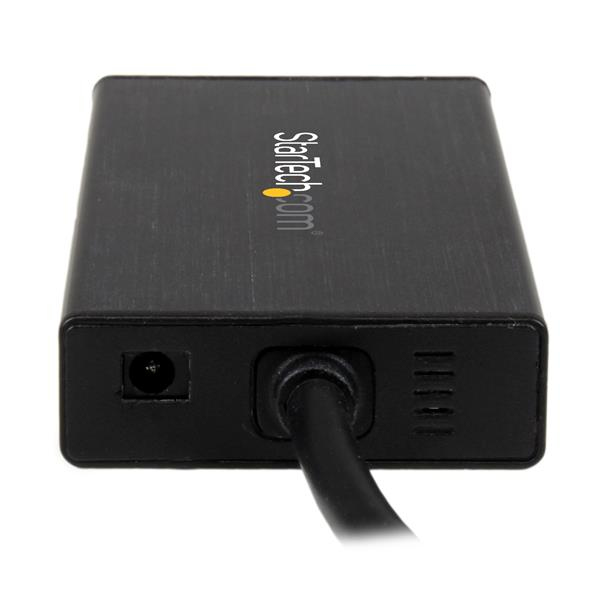

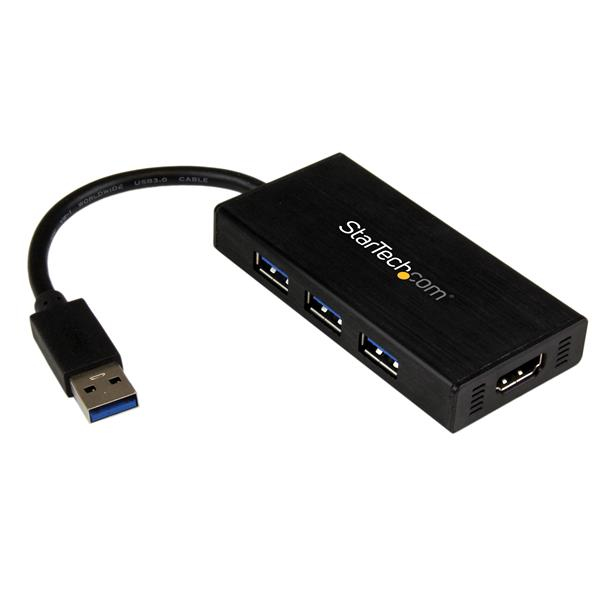

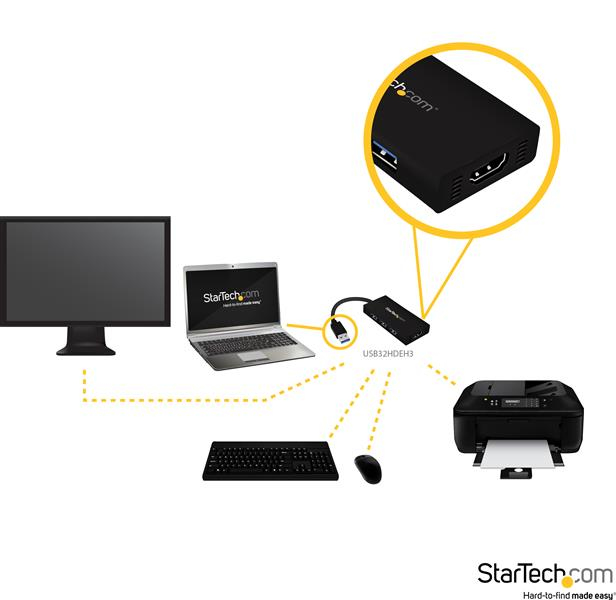

USB 3.0 to HDMI External Multi Monitor Graphics Adapter with 3-Port USB Hub – HDMI and USB 3.0 Mini Dock –
1920x1200 / 1080p
Model USB32HDEH3EAN 5054629493113
34 specifications
- Memory32 MB
- Weight63 g
- ColourBlack
- USB version3.2 Gen 1 (3.1 Gen 1)
- Minimum processor familyCore i5
- Width44 mm
Overview
- Memory
- 32 MB
- Weight
- 63 g
- Colour
- Black
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Minimum processor family
- Core i5
- Width
- 44 mm
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- USB32HDEH3
- Part number
- USB32HDEH3
- EAN / UPC
- 5054629493113, 065030858434, 723856187250, 745734232869 +4 more
- Also known as
- StarTech.com USB 3.0 to HDMI External Multi Monitor Graphics Adapter with 3-Port USB Hub – HDMI and USB 3.0 Mini Dock – 1920x1200 / 1080p
Specifications
34 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |

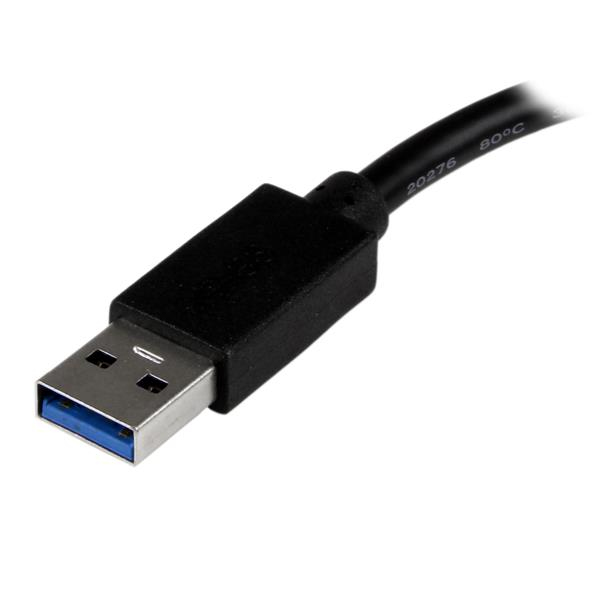

| USB connector type | USB Type-A |
| USB connector gender | Male |
| DVI output | No |

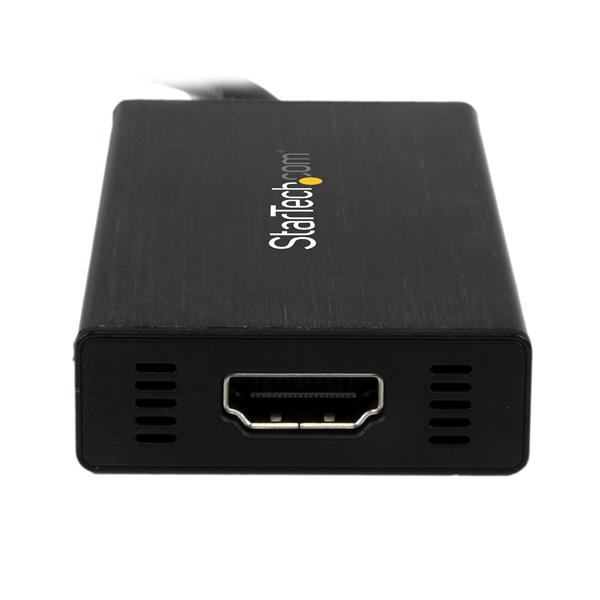

| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 1 |
| Internal memory | 32 MB |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXG |
| Chipset | Trigger - T5-302 |
| Certification | CE, FCC, REACH |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Integrated USB cable | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic |
| Minimum processor family | Core i5 |
| Minimum processor speed | 2.4 GHz |
| Minimum RAM | 4 GB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 44 mm |
| Depth | 235 mm |
| Height | 14 mm |
| Weight | 63 g |
| USB cable length | 0.146 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 75 °C |
| Operating relative humidity (H-H) | 5 - 85% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 210 mm |
| Package height | 38 mm |
| Package weight | 212 g |

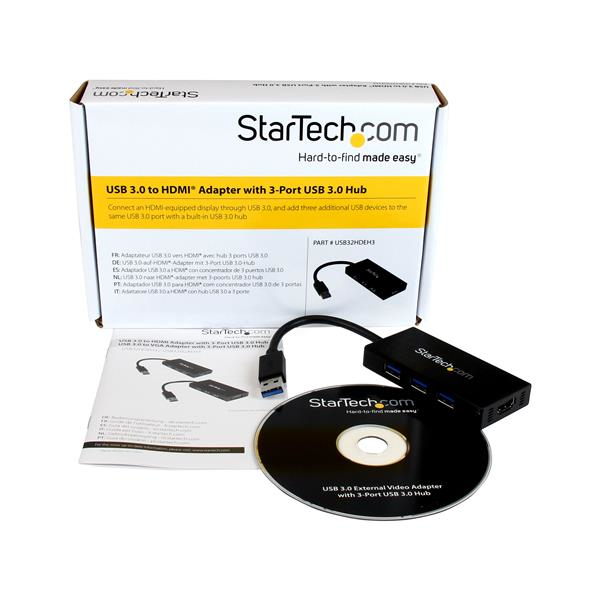

Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Software CD | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
