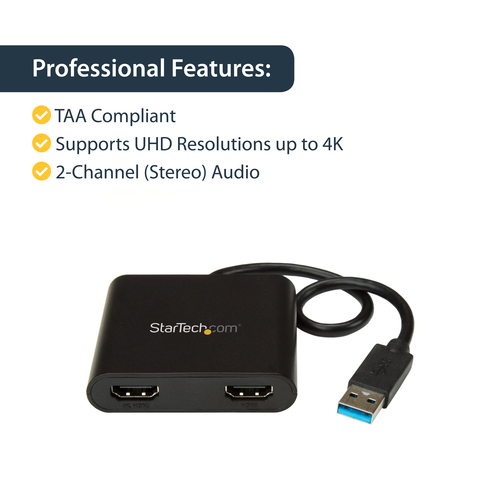

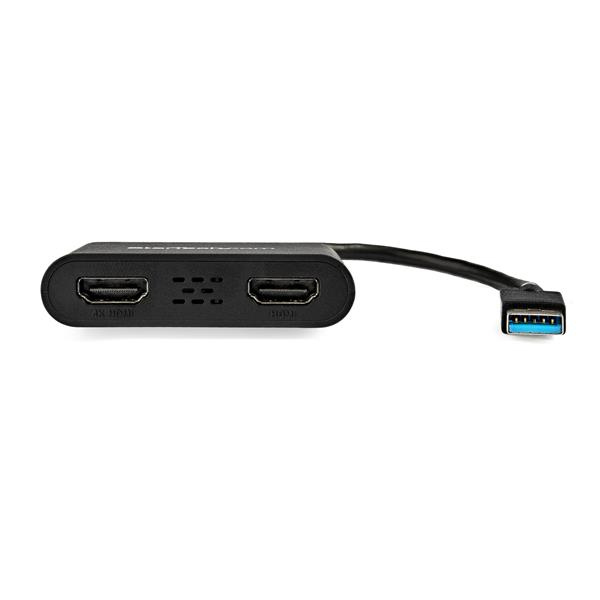

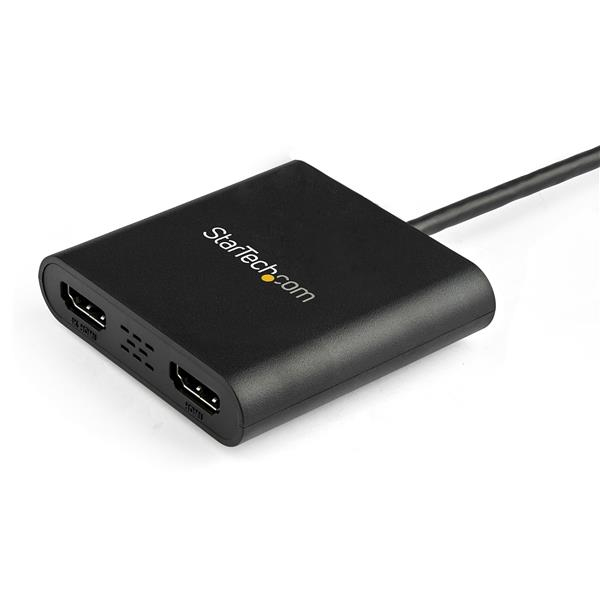

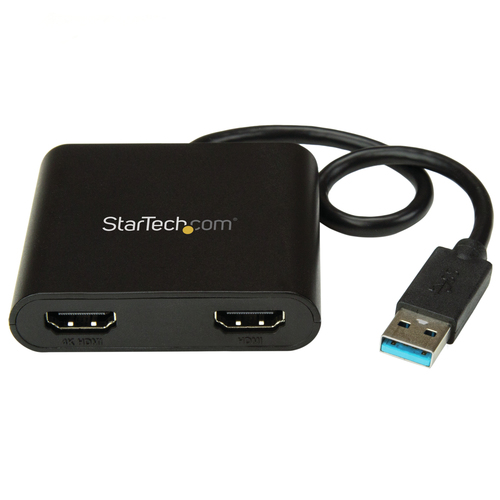

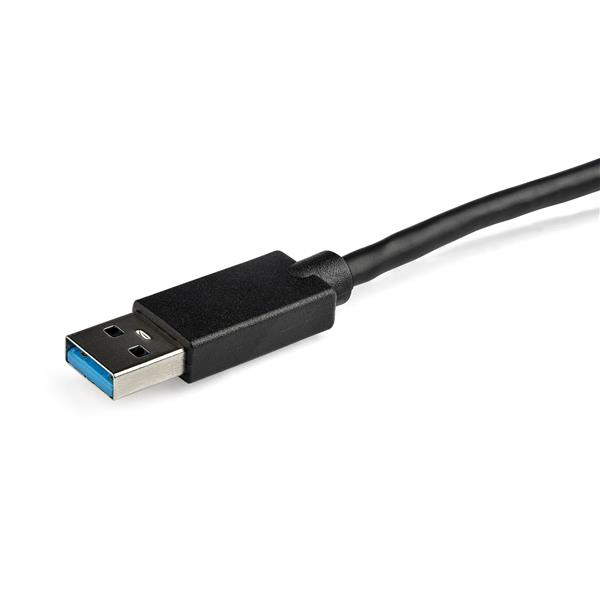

StarTech.com USB 3.0 to Dual HDMI Adapter, USB to 2x HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA
Model USB32HD2EAN 065030868952
39 specifications
- Memory64 MB
- Weight56 g
- ColourBlack
- USB version3.2 Gen 1 (3.1 Gen 1)
- Minimum processor familyCore i5
- Width66 mm
Overview
- Memory
- 64 MB
- Weight
- 56 g
- Colour
- Black
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Minimum processor family
- Core i5
- Width
- 66 mm
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- USB32HD2
- Part number
- USB32HD2
- EAN / UPC
- 065030868952
- Also known as
- StarTech.com USB 3.0 to Dual HDMI Adapter, USB to 2x HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA
Specifications
39 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A |
| USB connector gender | Male |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 2 |
| Internal memory | 64 MB |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1366 x 768, 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 3840 x 2160 |
| Audio output channels | 2.0 channels |
| Chipset | Trigger T6-688SL, Silicon Image - Sil9136-3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Integrated USB cable | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
| Minimum processor family | Core i5 |
| Minimum processor speed | 2.4 GHz |
| Minimum RAM | 4 TB |

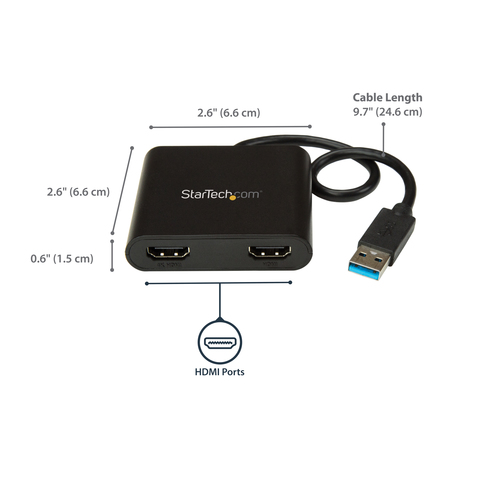

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 66 mm |
| Depth | 315 mm |
| Height | 15 mm |
| Weight | 56 g |
| USB cable length | 0.25 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 213 mm |
| Package depth | 145 mm |
| Package height | 41 mm |
| Package weight | 184 g |

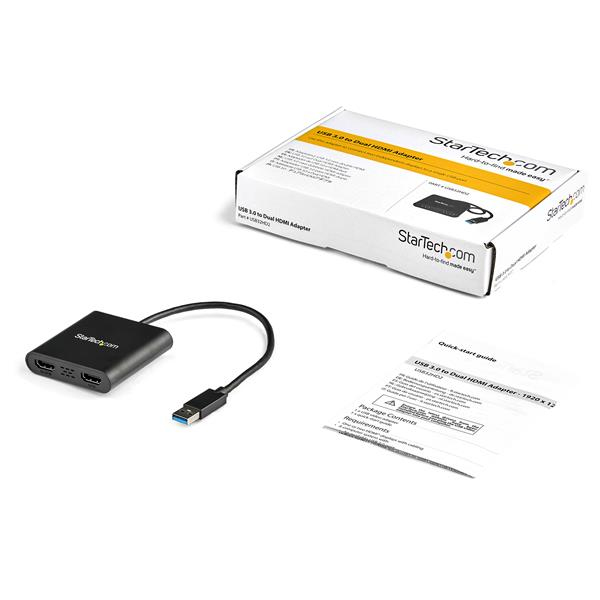

Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 322 mm |
| Master (outer) case height | 438 mm |
| Harmonized System (HS) code | 84733020 |
Compare StarTech.com USB 3.0 to Dual HDMI Adapter, USB to 2x HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA

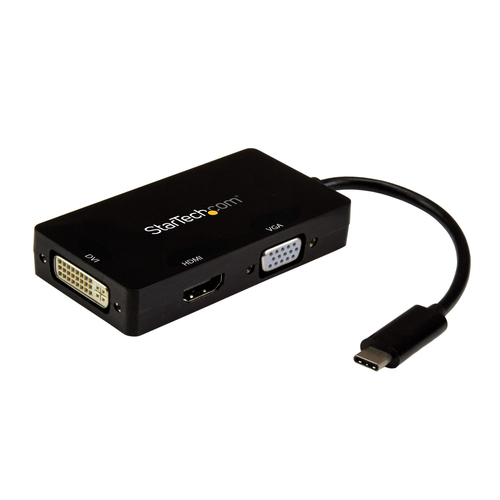

Compare any products- StarTech.com USB 3.0 to Dual HDMI Adapter, USB to 2x HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA vsStarTech.com USB-C Multiport Video Adapter - 3-in-1 - 4KCompare specs

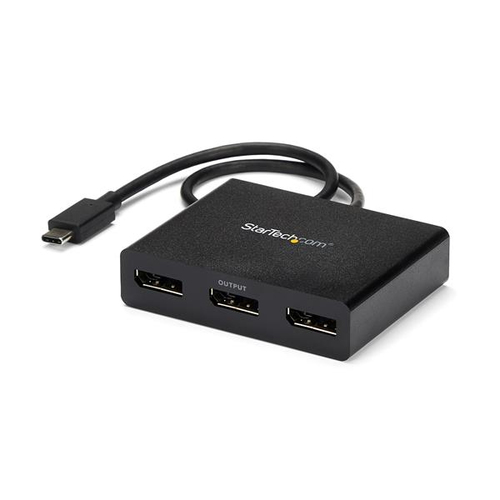

- StarTech.com USB 3.0 to Dual HDMI Adapter, USB to 2x HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA vsStarTech.com 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x DisplayPort 1.2 MST Hub, Triple 1080pCompare specs

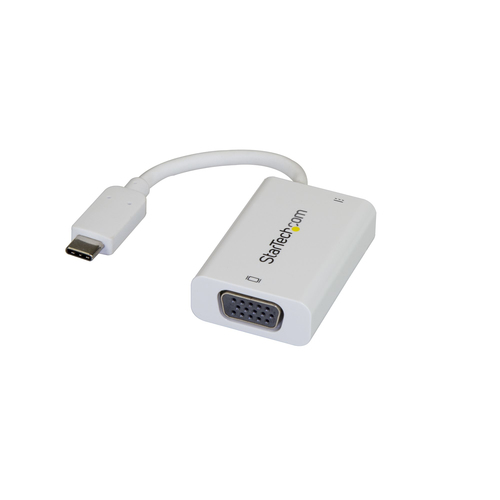

- StarTech.com USB 3.0 to Dual HDMI Adapter, USB to 2x HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA vsStarTech.com USB C to VGA Adapter with Power Delivery - 1080p USB Type-C to VGA Monitor Video Converter w/ ChargingCompare specs

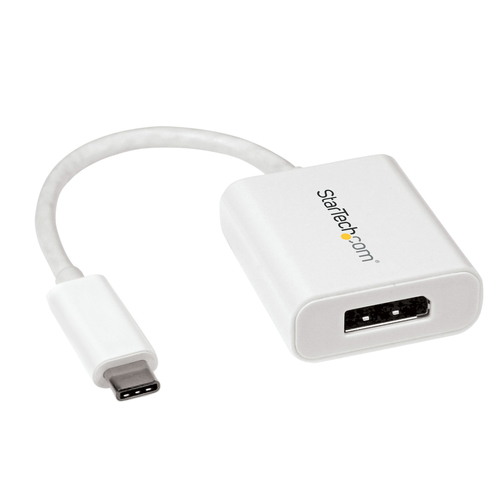

- StarTech.com USB 3.0 to Dual HDMI Adapter, USB to 2x HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA vsStarTech.com USB C to DisplayPort Adapter - 4KCompare specs

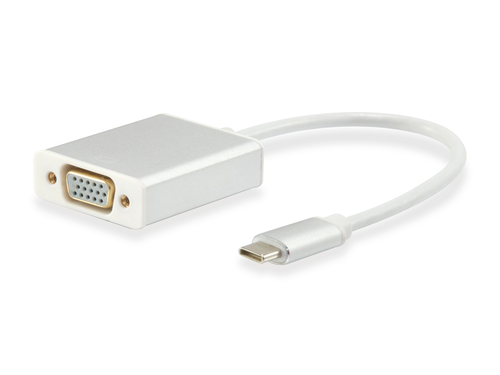

- StarTech.com USB 3.0 to Dual HDMI Adapter, USB to 2x HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA vsEquip USB Type C to HD15 VGA AdapterCompare specs

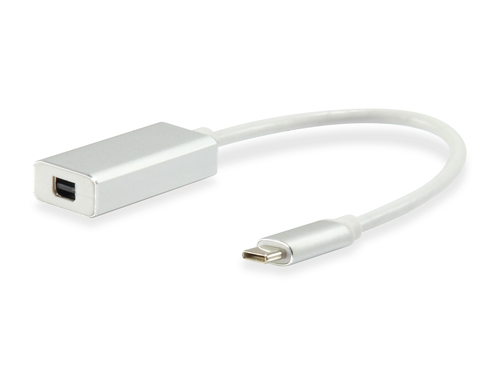

- StarTech.com USB 3.0 to Dual HDMI Adapter, USB to 2x HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA vsEquip USB Type C to Mini DisplayPort AdapterCompare specs

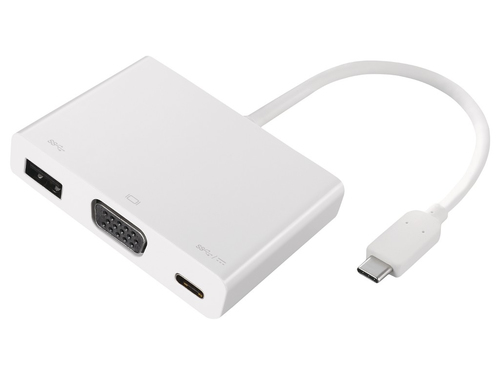

- StarTech.com USB 3.0 to Dual HDMI Adapter, USB to 2x HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA vs2-Power USB Type-C to VGA Multiport AdapterCompare specs

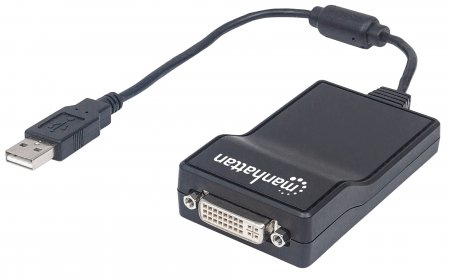

- StarTech.com USB 3.0 to Dual HDMI Adapter, USB to 2x HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA vsManhattan 152334 USB graphics adapter BlackCompare specs
