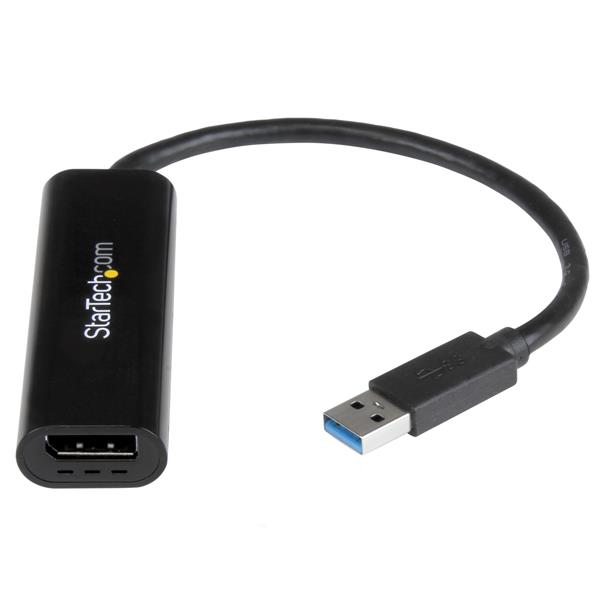

Slim USB 3.0 to DisplayPort Adapter
2048 x 1152 and 1080p
Model USB32DPESEAN 065030861748
36 specifications
- Memory32 MB
- Weight43 g
- ColourBlack
- USB version3.2 Gen 1 (3.1 Gen 1)
- Minimum processor familyCore i5
- Width14 mm
Overview
- Memory
- 32 MB
- Weight
- 43 g
- Colour
- Black
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Minimum processor family
- Core i5
- Width
- 14 mm
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- USB32DPES
- Part number
- USB32DPES
- EAN / UPC
- 065030861748, 4058829182175, 5054629840566, 7426801117199
- Also known as
- StarTech.com Slim USB 3.0 to DisplayPort Adapter - 2048 x 1152 and 1080p
Specifications
36 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |

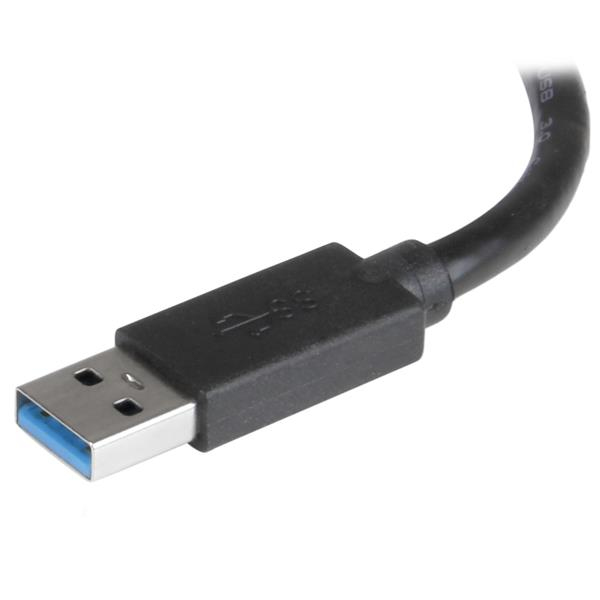

| USB connector type | USB Type-A |
| USB connector gender | Male |
| DVI output | No |
| HDMI output | No |

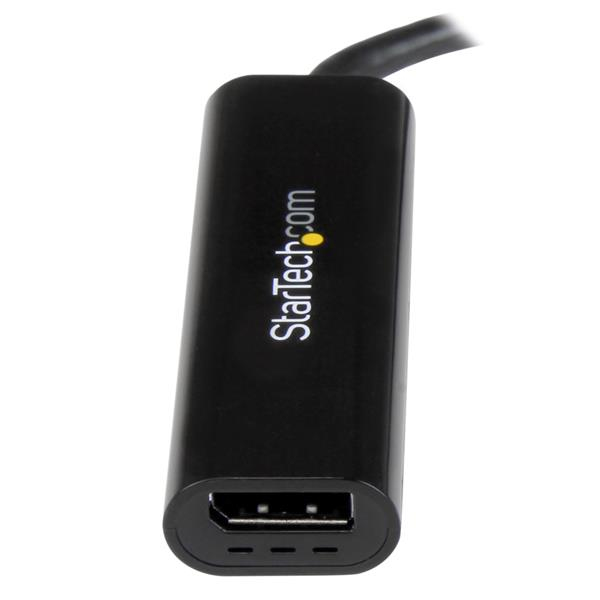

| DisplayPort output | Yes |
| Number of displays supported | 1 |
| Internal memory | 32 MB |
| Maximum resolution | 2048 x 1152 pixels |
| Supported graphics resolutions | 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 204 |
| Supported video modes | 480p, 720p, 1080p |
| Audio output channels | 2.0 channels |
| Chipset | Trigger - T5-302 |
| USB pass-through | No |
| Certification | CE, FCC, TAA, REACH |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Integrated USB cable | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
| Minimum processor family | Core i5 |
| Minimum processor speed | 2.4 GHz |
| Minimum RAM | 4 GB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 14 mm |
| Depth | 88 mm |
| Height | 195 mm |
| Weight | 43 g |
| USB cable length | 0.062 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 75 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 210 mm |
| Package height | 38 mm |
| Package weight | 170 g |
Packaging content
| Specification | Value |
|---|---|

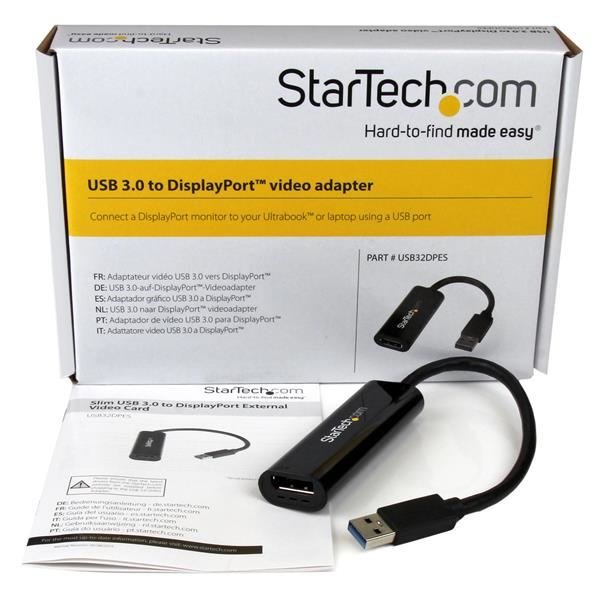

| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
