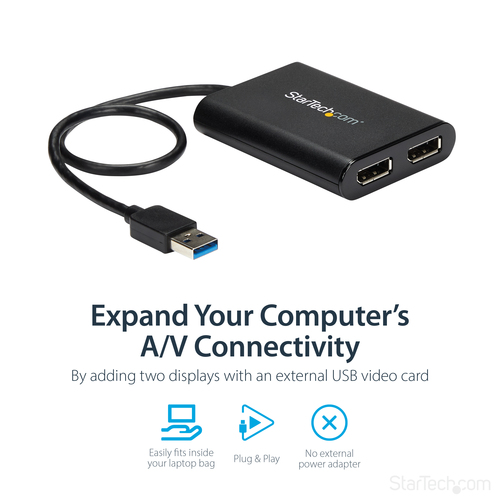

USB 3.0 to Dual DisplayPort Adapter, 4K
60Hz, DisplayLink Certified, USB to Dual DP Display Adapter, Dual DisplayPort Adapter for Mac & Windows
Model USB32DP24K60EAN 065030878487
43 specifications
- Memory2048 MB
- Weight155 g
- ColourBlack
- USB version3.2 Gen 1 (3.1 Gen 1)
- Mac compatibilityYes
- Width142 mm
Overview
- Memory
- 2048 MB
- Weight
- 155 g
- Colour
- Black
- USB version
- 3.2 Gen 1 (3.1 Gen 1)
- Mac compatibility
- Yes
- Width
- 142 mm
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- USB32DP24K60
- Part number
- USB32DP24K60
- EAN / UPC
- 065030878487
- Also known as
- StarTech.com USB 3.0 to Dual DisplayPort Adapter, 4K 60Hz, DisplayLink Certified, USB to Dual DP Display Adapter, Dual DisplayPort Adapter for Mac & Windows
Specifications
43 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A |
| USB connector gender | Male |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 2 |
| Internal memory | 2048 MB |
| Maximum resolution | 4096 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 800, 1366 x 768, 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152, 3840 x 2160, 4096 x 2160 |
| Audio output channels | 2.0 channels |
| Chipset | DisplayLink - DL-6950 |
| USB pass-through | No |
| Certification | CE, FCC, REACH |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Ubuntu 14.04, Ubuntu 16.04, Yes |
| Other operating systems supported | ChromeOS |
| Minimum processor speed | 2.4 GHz |
| Minimum RAM | 4 GB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 142 mm |
| Depth | 175 mm |
| Height | 30 mm |
| Weight | 155 g |
| USB cable length | 0.3 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 143 mm |
| Package depth | 174 mm |
| Package height | 32 mm |
| Package weight | 72 g |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 366 mm |
| Master (outer) case length | 341 mm |
| Master (outer) case height | 326 mm |
| Harmonized System (HS) code | 84733020 |
