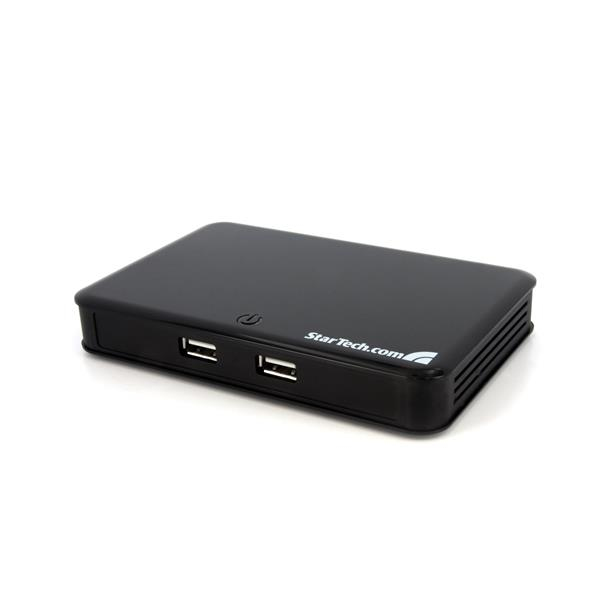

USB VGA and DVI Dual Port External Video Adapter
Model USB2VGADVIEAN 777786344955
32 specifications
- Memory32 MB
- Weight172 g
- ColourBlack
- USB version2.0
- Width135 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Memory
- 32 MB
- Weight
- 172 g
- Colour
- Black
- USB version
- 2.0
- Width
- 135 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- USB2VGADVI
- Part number
- USB2VGADVI
- EAN / UPC
- 777786344955, 666670006294, 777785552955, 778889317983 +1 more
- Also known as
- StarTech.com USB VGA and DVI Dual Port External Video Adapter
Specifications
32 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB version | 2.0 |
| USB connector type | Mini-USB B |
| USB connector gender | Male |

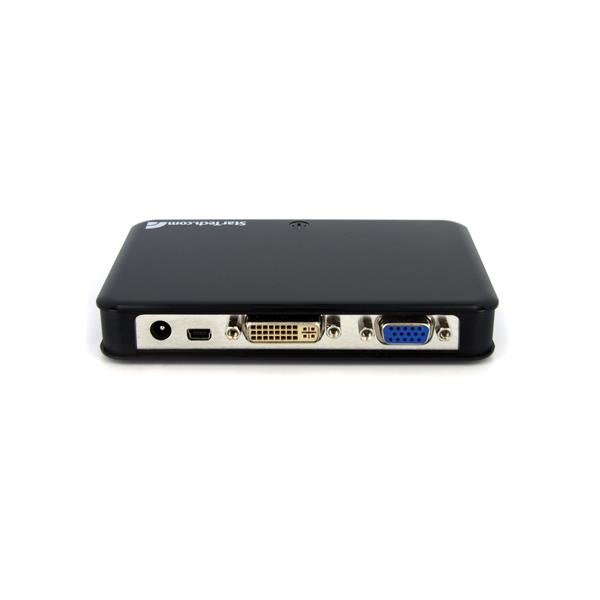

| DVI output | Yes |
| HDMI output | No |
| DisplayPort output | No |
| Number of displays supported | 2 |
| VGA (D-Sub) output | Yes |
| DVI connector type | DVI-I |
| Internal memory | 32 MB |
| Maximum resolution | 1600 x 1200 pixels |
| Supported graphics resolutions | 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+) |
| Output colour depth | 16/32 bit |
| LED indicators | Power |
| Chipset | Trigger - Trigger 1+ |
| USB pass-through | No |
| Certification | CE, FCC, REACH, WHQL |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Win |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 135 mm |
| Depth | 86 mm |
| Height | 18 mm |
| Weight | 172 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | 15 - 30 °C |
Packaging data
| Specification | Value |
|---|---|
| Package width | 68 mm |
| Package depth | 234 mm |
| Package height | 180 mm |
| Package weight | 700 g |

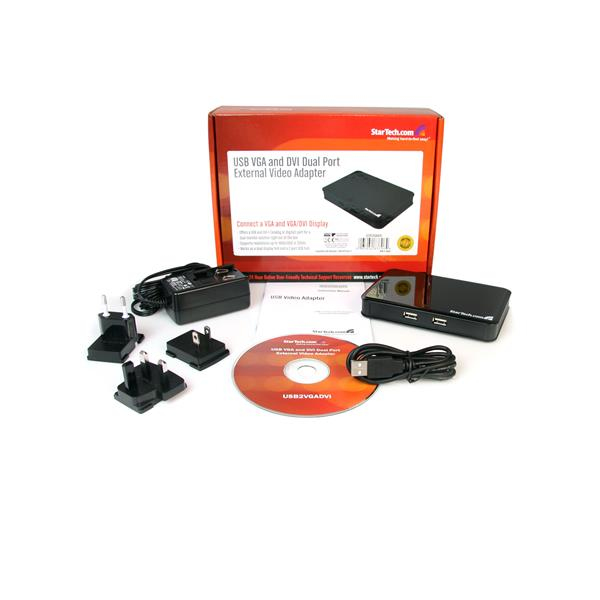

Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Drivers included | Yes |
| Manual | Yes |
