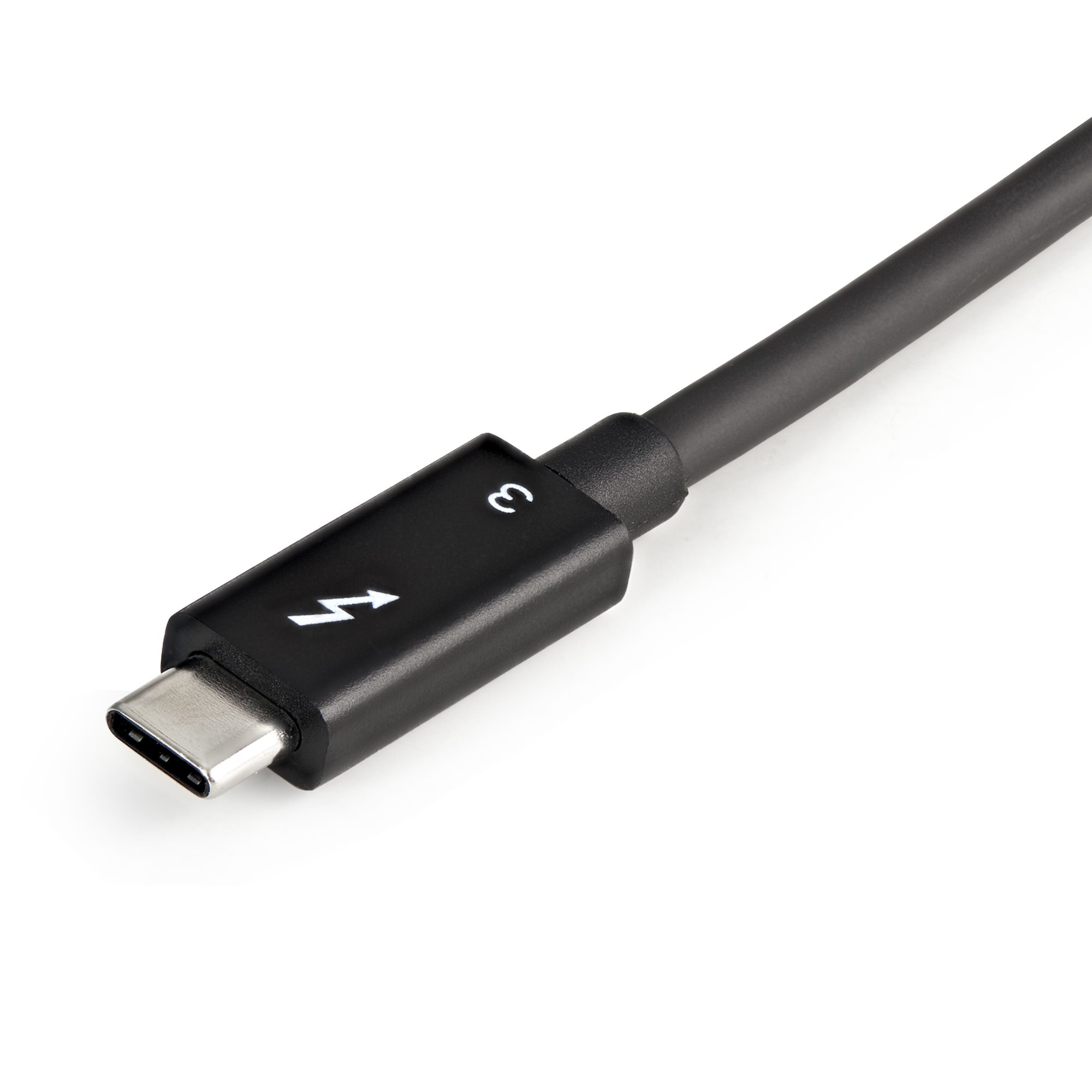

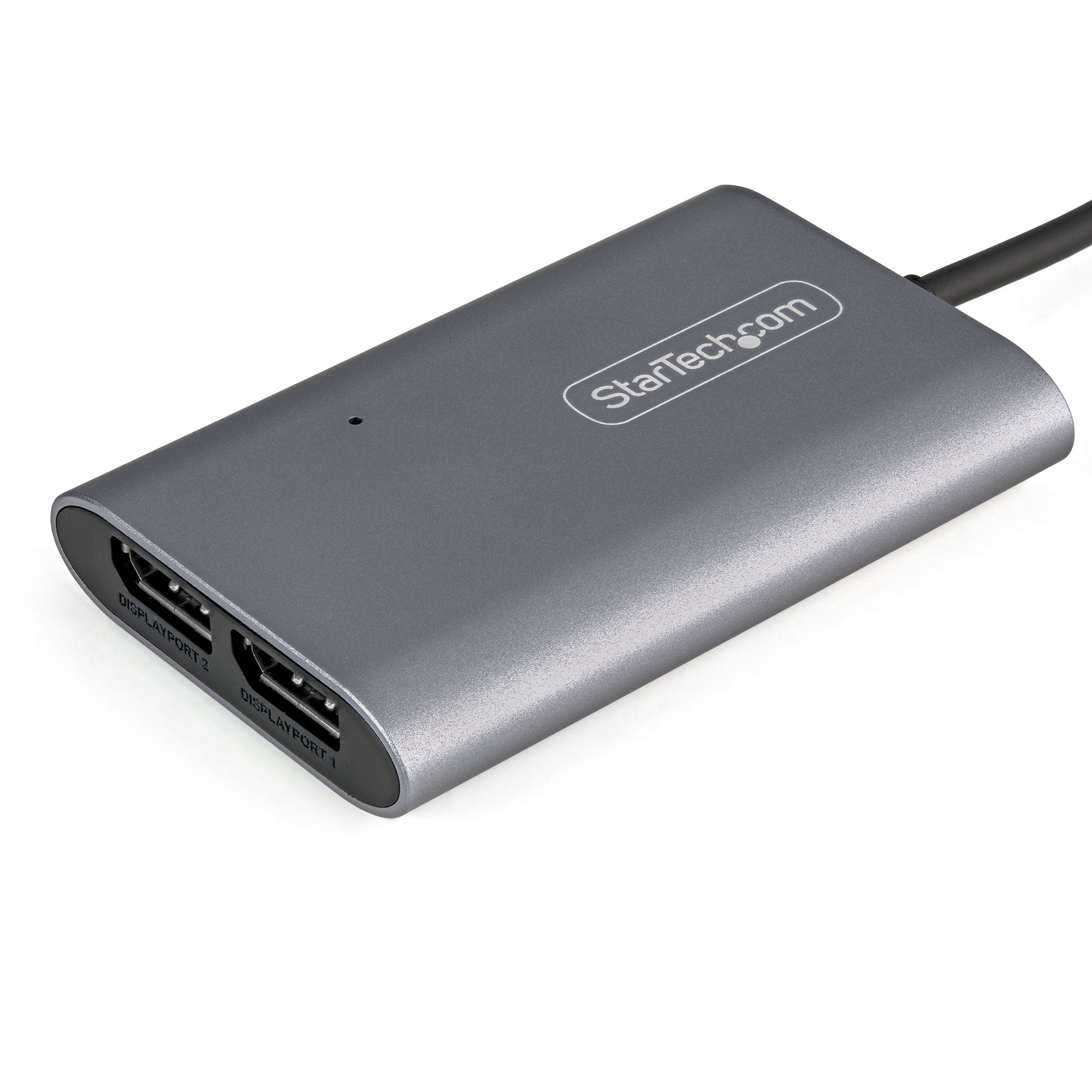

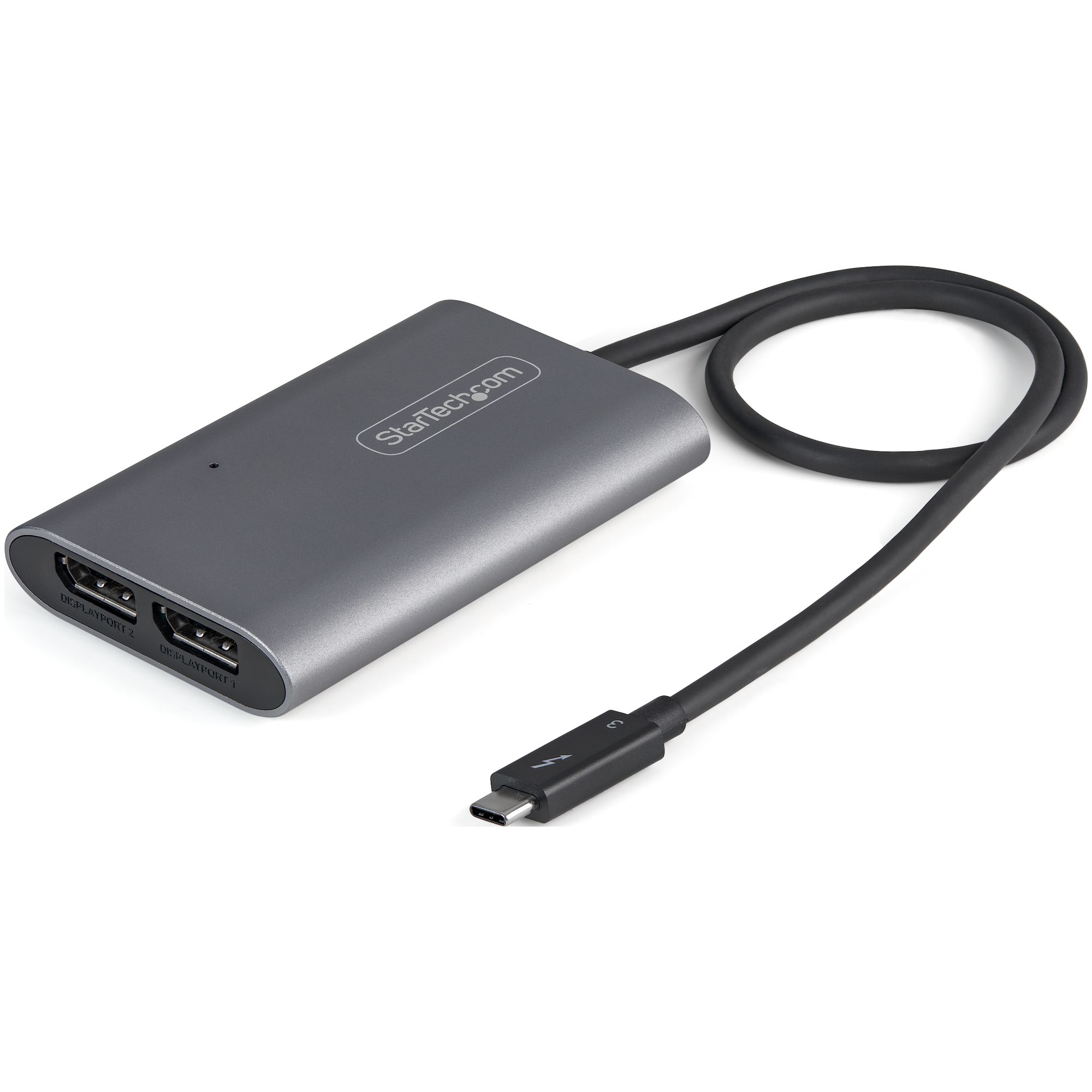

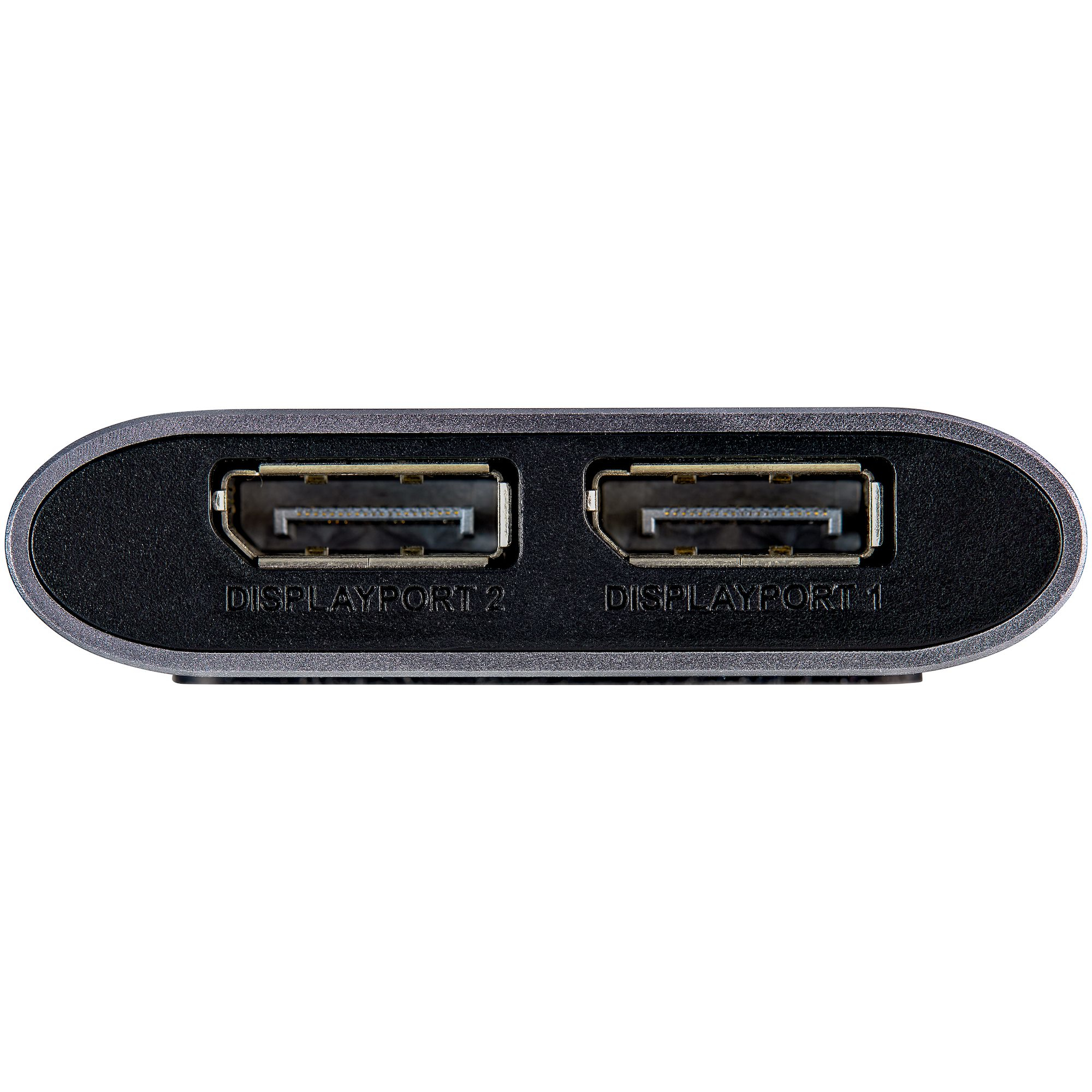

Thunderbolt to Dual DisplayPort Adapter DP 1.4, Dual 4K
60Hz or Single 8K/5K Thunderbolt to DP Converter, 2x DisplayPort Monitor Video Display Adap
Model TB32DP14EAN 065030888752
25 specifications
- Weight138 g
- ColourSilver
- HDCPYes
- Width64 mm
- Operating temperature (T-T)0 - 40 °C
- Compliance certificatesRoHS
Overview
- Weight
- 138 g
- Colour
- Silver
- HDCP
- Yes
- Width
- 64 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- TB32DP14
- Part number
- TB32DP14
- EAN / UPC
- 065030888752
- Also known as
- StarTech.com Thunderbolt to Dual DisplayPort Adapter DP 1.4, Dual 4K 60Hz or Single 8K/5K Thunderbolt to DP Converter, 2x DisplayPort Monitor Video Display Adap
Specifications
25 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Chipset | Intel JHL7440 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 64 mm |
| Depth | 99 mm |
| Height | 16 mm |
| Weight | 138 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 140 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 270 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 310 mm |
| Harmonized System (HS) code | 84733080 |
