3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x HDMI MST Hub, Triple 4K
60Hz HDMI Laptop Display Extender / Splitter, HDR, Extra-Long Built-In
Model MST14CD123HDEAN 065030887663
37 specifications
- Weight72 g
- ColourGrey
- USB connector typeUSB Type-C
- Width43 mm
- Operating temperature (T-T)0 - 40 °C
- Compliance certificatesCE, RoHS
Overview
- Weight
- 72 g
- Colour
- Grey
- USB connector type
- USB Type-C
- Width
- 43 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- MST14CD123HD
- Part number
- MST14CD123HD
- EAN / UPC
- 065030887663
- Also known as
- StarTech.com 3-Port USB-C Multi-Monitor Adapter, USB Type-C to 3x HDMI MST Hub, Triple 4K 60Hz HDMI Laptop Display Extender / Splitter, HDR, Extra-Long Built-In
Specifications
37 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |

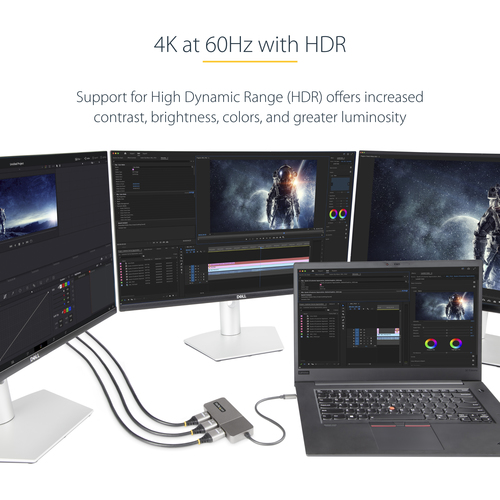

| High Dynamic Range (HDR) supported | Yes |
| Number of displays supported | 3 |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 2.0 channels |
| Chipset | Synaptics VMM5310 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Housing material | Plastic |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 |

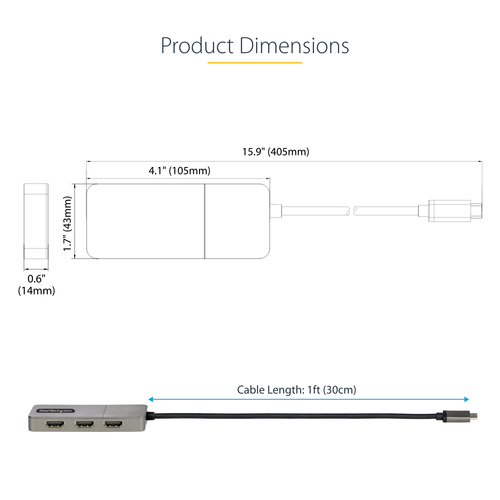

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 43 mm |
| Depth | 105 mm |
| Height | 14 mm |
| Weight | 72 g |

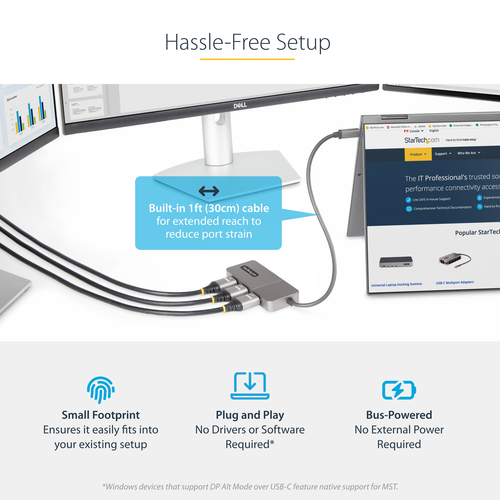

| USB cable length | 0.3 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 174 mm |
| Package height | 32 mm |
| Package weight | 124 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 70 pc(s) |
| Master (outer) case width | 473 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case height | 440 mm |
