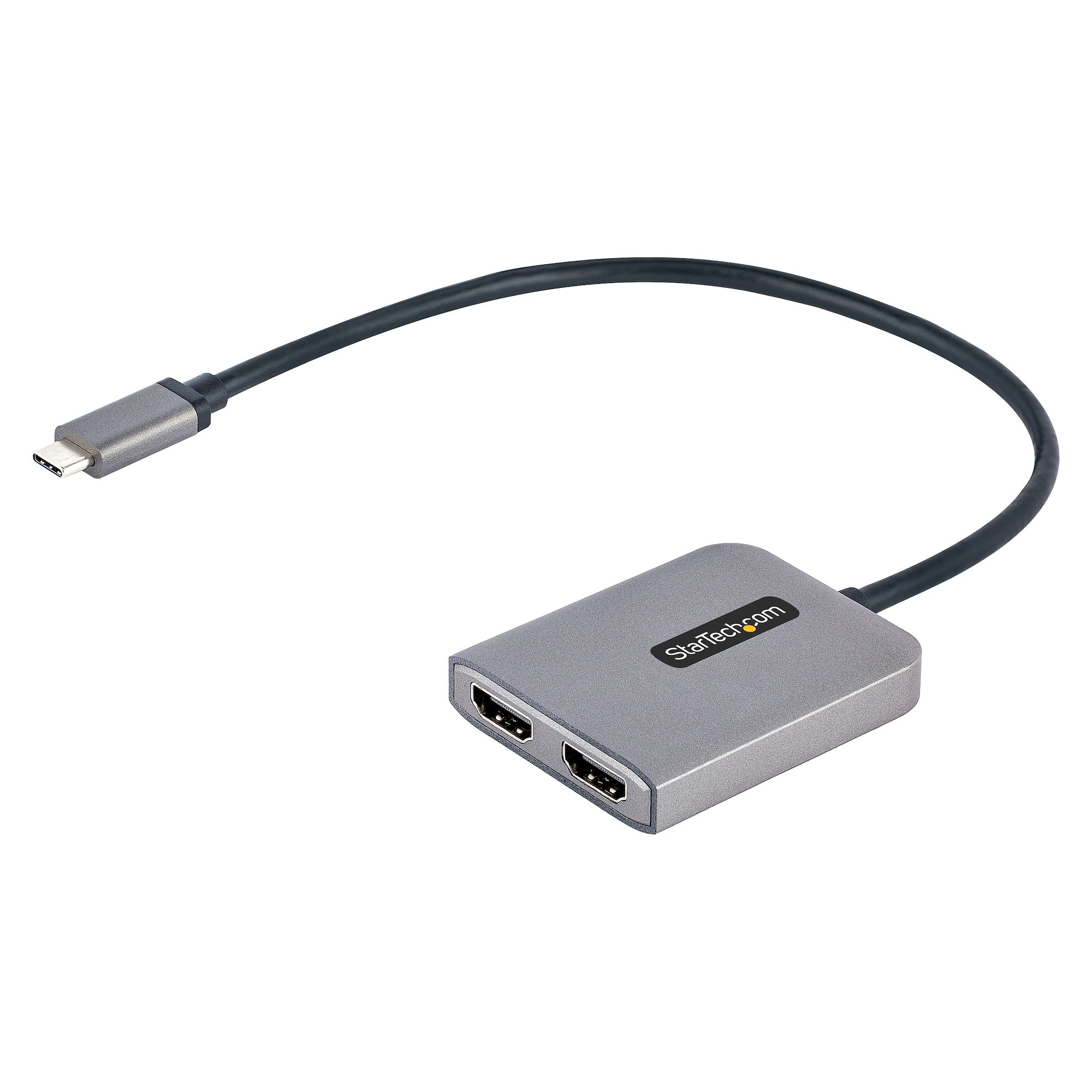

USB-C to Dual HDMI Adapter, USB Type-C Multi-Monitor MST Hub, Dual 4K
60Hz HDMI Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable
Model MST14CD122HDEAN 065030888288
36 specifications
- Weight55 g
- ColourBlack, Grey
- USB connector typeUSB Type-C
- Width105 mm
- Operating temperature (T-T)0 - 70 °C
- Compliance certificatesCE, RoHS
Overview
- Weight
- 55 g
- Colour
- Black, Grey
- USB connector type
- USB Type-C
- Width
- 105 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- MST14CD122HD
- Part number
- MST14CD122HD
- EAN / UPC
- 065030888288
- Also known as
- StarTech.com USB-C to Dual HDMI Adapter, USB Type-C Multi-Monitor MST Hub, Dual 4K 60Hz HDMI Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable
Specifications
36 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Number of displays supported | 2 |
| HDMI ports quantity | 2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 7.1 channels |
| Chipset | Synaptics VMM5200 |
| Data transfer rate (max) | 32.4 Gbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Housing material | Plastic |
| Integrated USB cable | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 x64, Windows 11, Windows 11 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 43 mm |
| Height | 14 mm |
| Weight | 55 g |
| USB cable length | 0.3 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 108.8 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 70 pc(s) |
| Master (outer) case width | 460 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case height | 440 mm |
| Harmonized System (HS) code | 84733020 |
