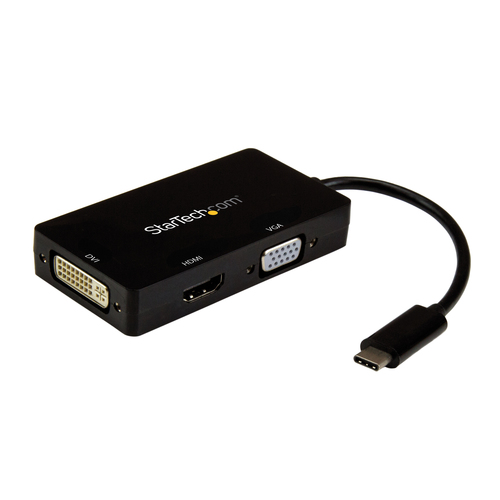

USB-C Multiport Video Adapter - 3-in-1 - 4K
30Hz - Black
Model CDPVGDVHDBPEAN 065030871129
39 specifications
- Weight51 g
- ColourBlack
- USB connector typeUSB Type-C
- Width45 mm
- Operating temperature (T-T)0 - 45 °C
- Compliance certificatesCE, RoHS
Overview
- Weight
- 51 g
- Colour
- Black
- USB connector type
- USB Type-C
- Width
- 45 mm
- Operating temperature (T-T)
- 0 - 45 °C
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- CDPVGDVHDBP
- Part number
- CDPVGDVHDBP
- EAN / UPC
- 065030871129
- Also known as
- StarTech.com USB-C Multiport Video Adapter - 3-in-1 - 4K 30Hz - Black
Specifications
39 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | Yes |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 3 |
| Maximum transfer distance | 15.2 m |
| VGA (D-Sub) output | Yes |
| DVI connector type | DVI-I |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Maximum resolution (DVI) | 1920 x 1200 pixels |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280, 3840 x 2160 |
| Audio output channels | 7.1 channels |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Integrated USB cable | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 45 mm |
| Depth | 85 mm |
| Height | 15 mm |
| Weight | 51 g |
| USB cable length | 0.15 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 10 - 85% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 122 mm |
| Package depth | 127 mm |
| Package height | 19 mm |
| Package weight | 55 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 150 pc(s) |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 337 mm |
| Master (outer) case height | 224 mm |
| Harmonized System (HS) code | 84733020 |
