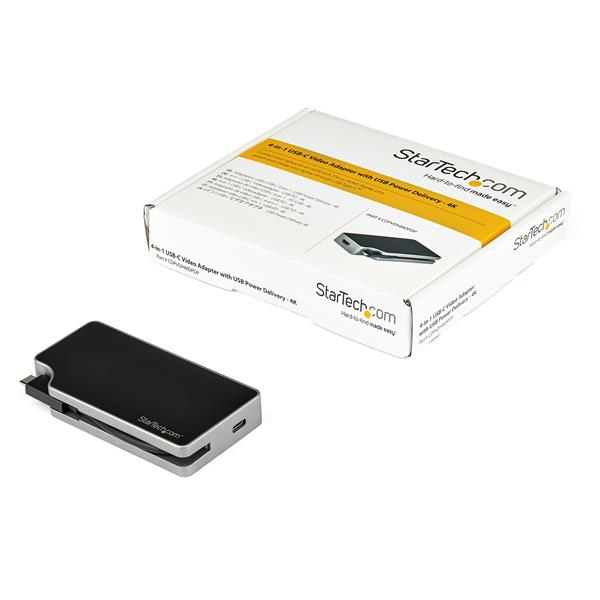

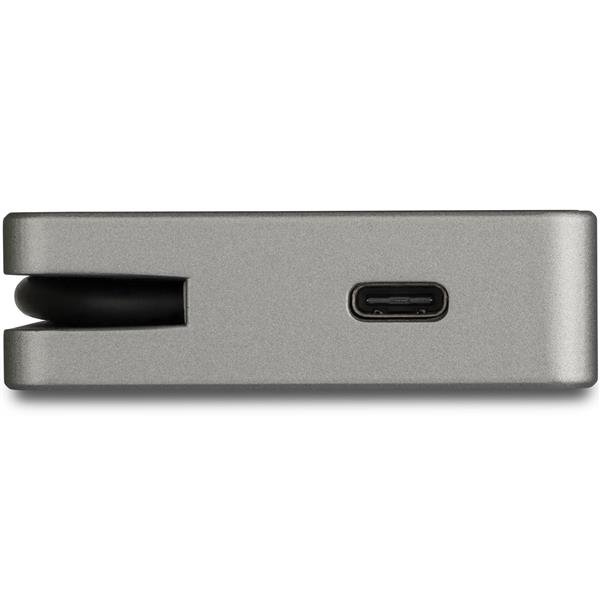

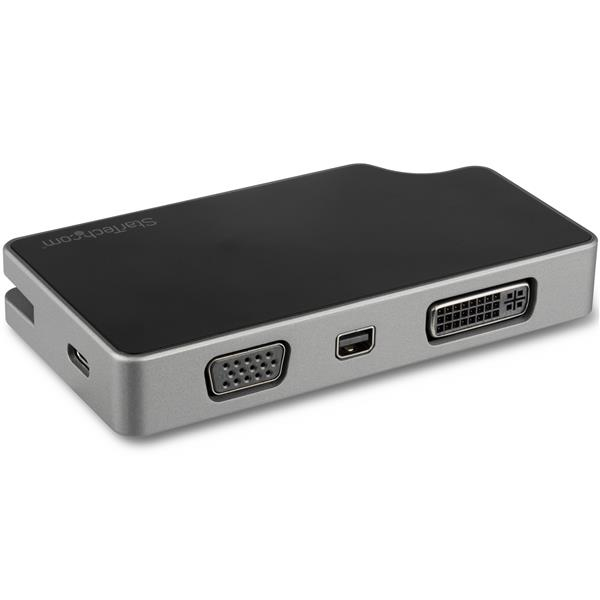

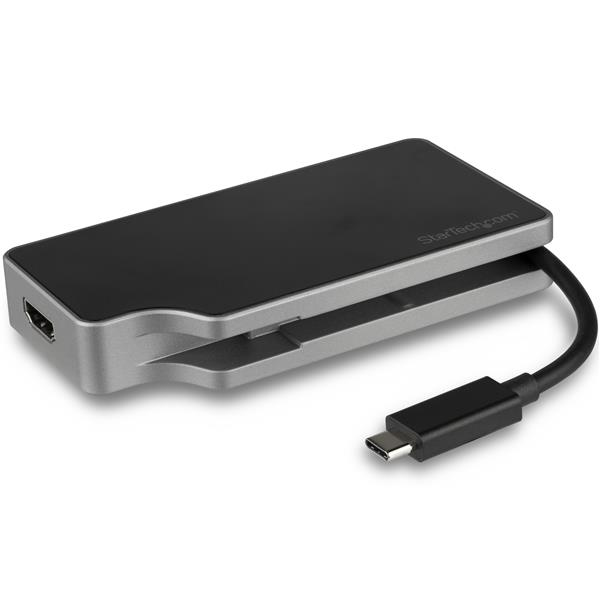

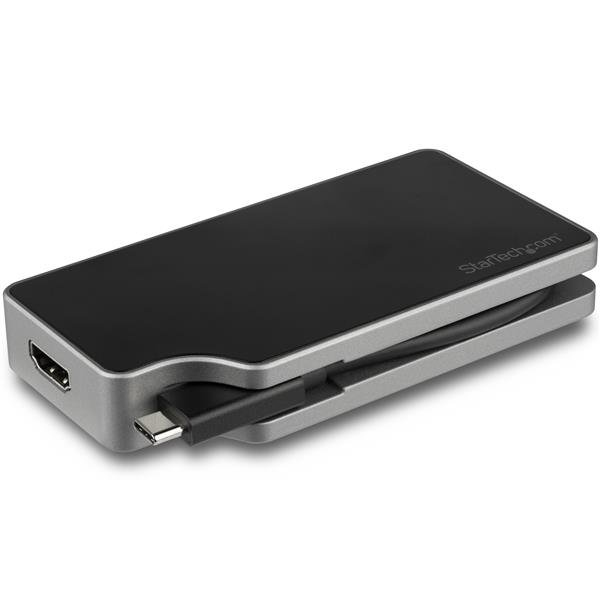

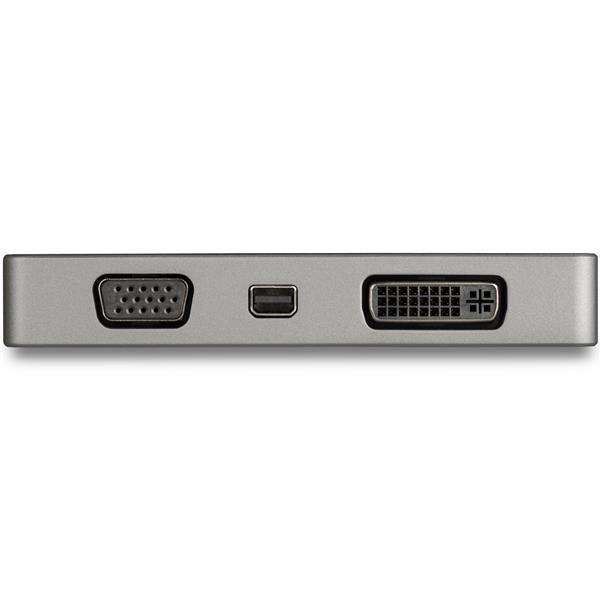

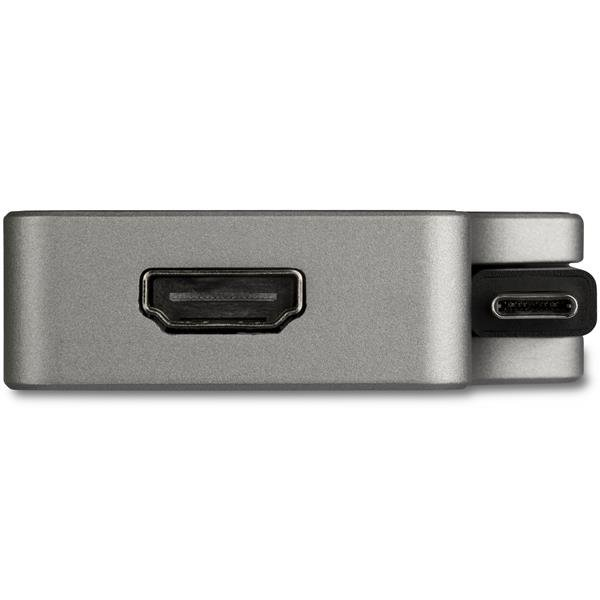

USB C Multiport Video Adapter - 4K
60Hz UHD Portable 5-in-1 USB Type C to HDMI 2.0, Mini DisplayPort, VGA or DVI (1080p) - 95W PD Passthrough - Cab
Model CDPVDHMDPDPEAN 065030878074
40 specifications
- Weight128 g
- ColourBlack, Grey
- USB connector typeUSB Type-C
- Power consumption (max)95 W
- Width57 mm
- Operating temperature (T-T)0 - 45 °C
Overview
- Weight
- 128 g
- Colour
- Black, Grey
- USB connector type
- USB Type-C
- Power consumption (max)
- 95 W
- Width
- 57 mm
- Operating temperature (T-T)
- 0 - 45 °C
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- CDPVDHMDPDP
- Part number
- CDPVDHMDPDP
- EAN / UPC
- 065030878074
- Also known as
- StarTech.com USB C Multiport Video Adapter - 4K 60Hz UHD Portable 5-in-1 USB Type C to HDMI 2.0, Mini DisplayPort, VGA or DVI (1080p) - 95W PD Passthrough - Cab
Specifications
40 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | Yes |
| HDMI output | Yes |
| DisplayPort output | No |
| Mini DisplayPorts quantity | 1 |
| Number of displays supported | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| VGA (D-Sub) output | Yes |
| DVI connector type | DVI-D |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution (DVI) | 1920 x 1200 pixels |
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| Audio output channels | 7.1 channels |
| Chipset | Parade - PS176, VIA/VLI - VL102, ITE -IT6516 |
| Certification | CE, FCC, REACH |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Integrated USB cable | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 95 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 57 mm |
| Depth | 109 mm |
| Height | 18 mm |
| Weight | 128 g |
| USB cable length | 0.101 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 142 mm |
| Package depth | 175 mm |
| Package height | 30 mm |
| Package weight | 200 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 220 mm |
| Harmonized System (HS) code | 84733020 |
