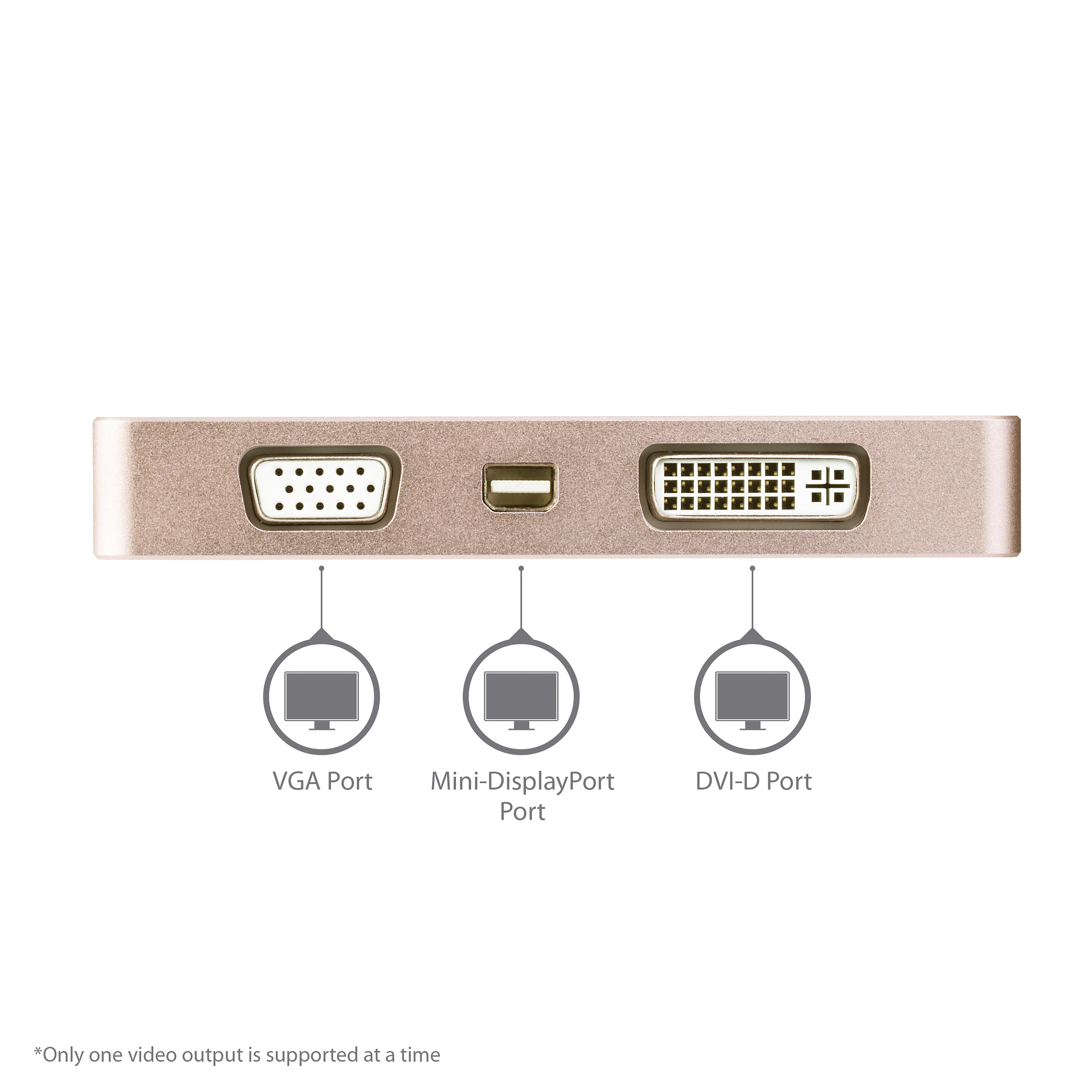

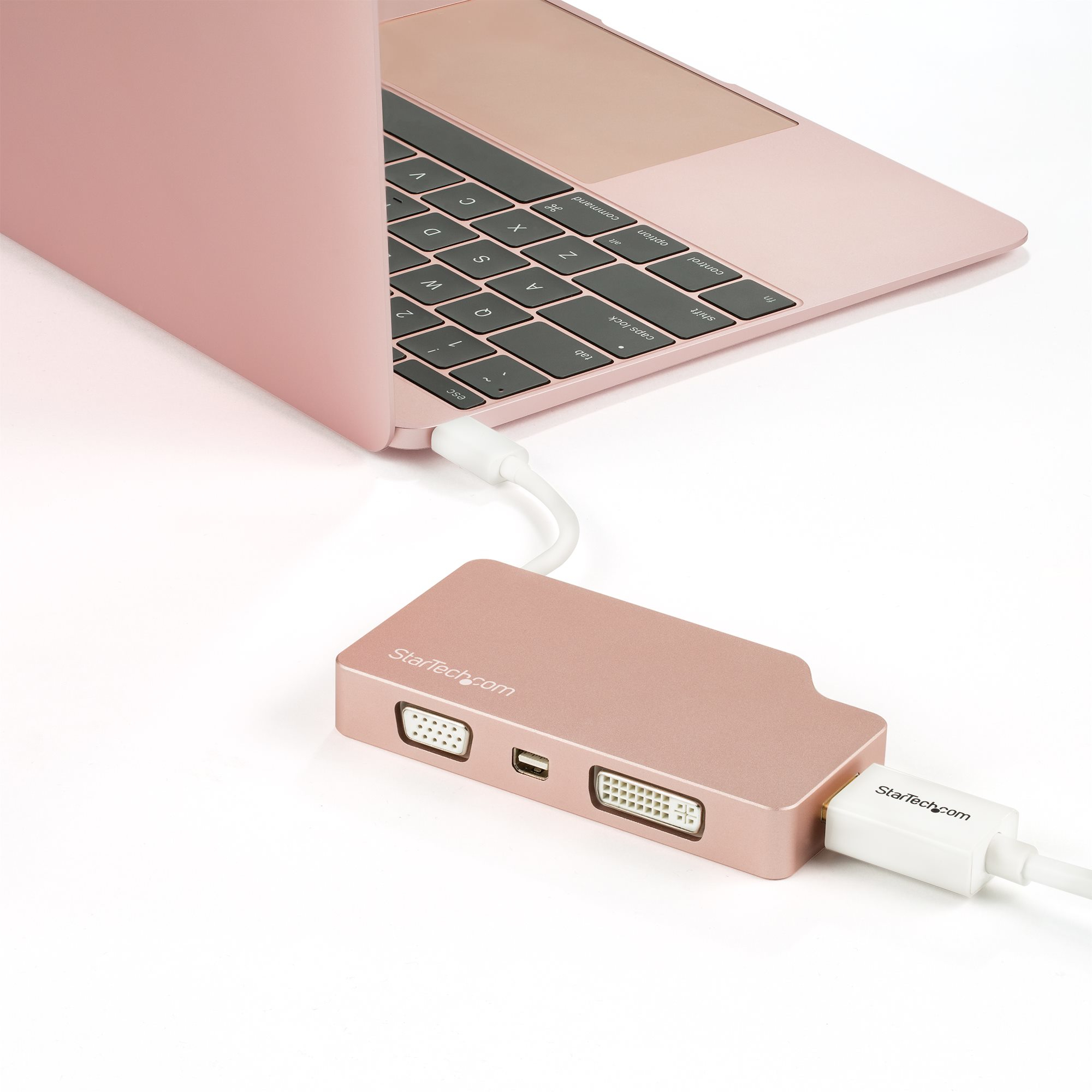

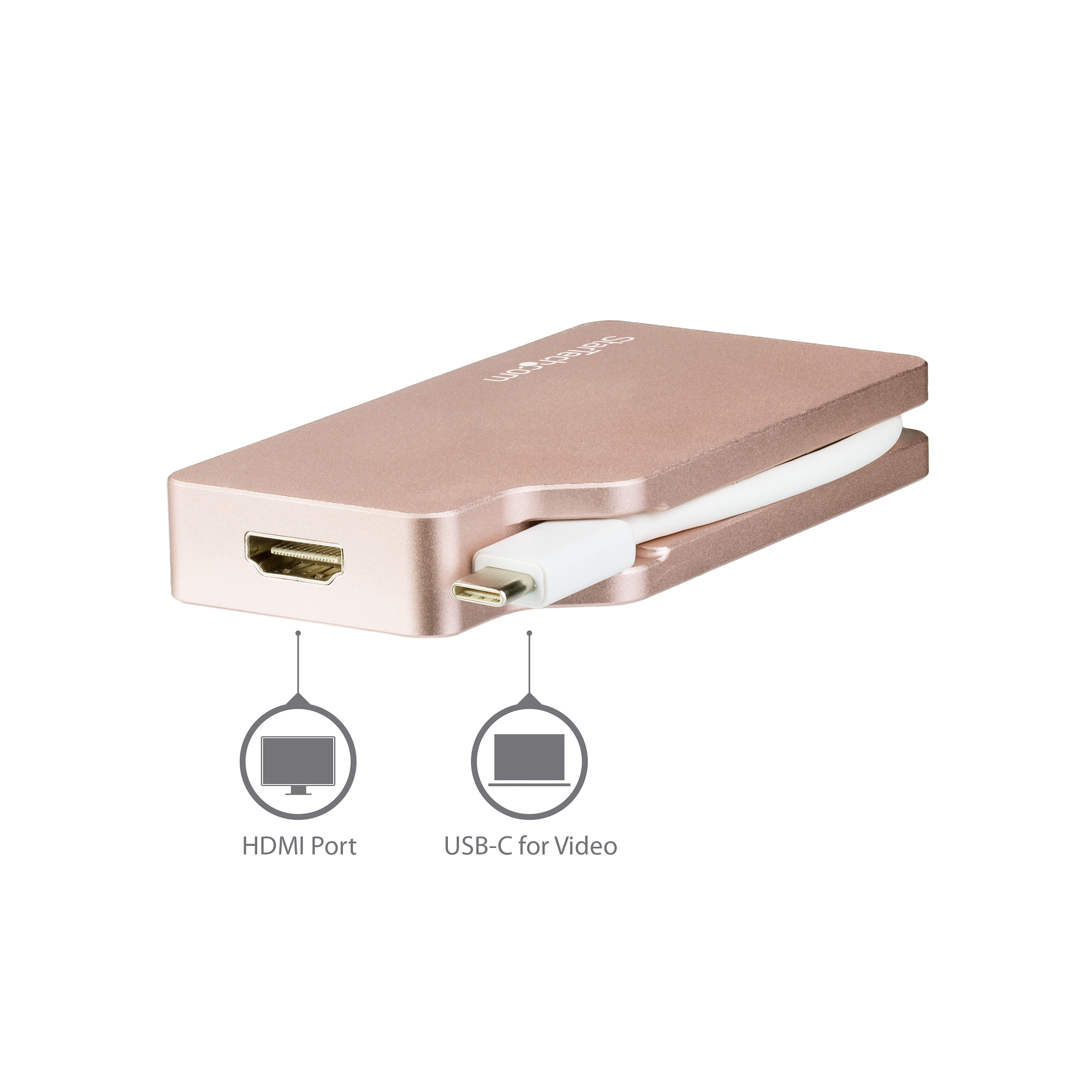

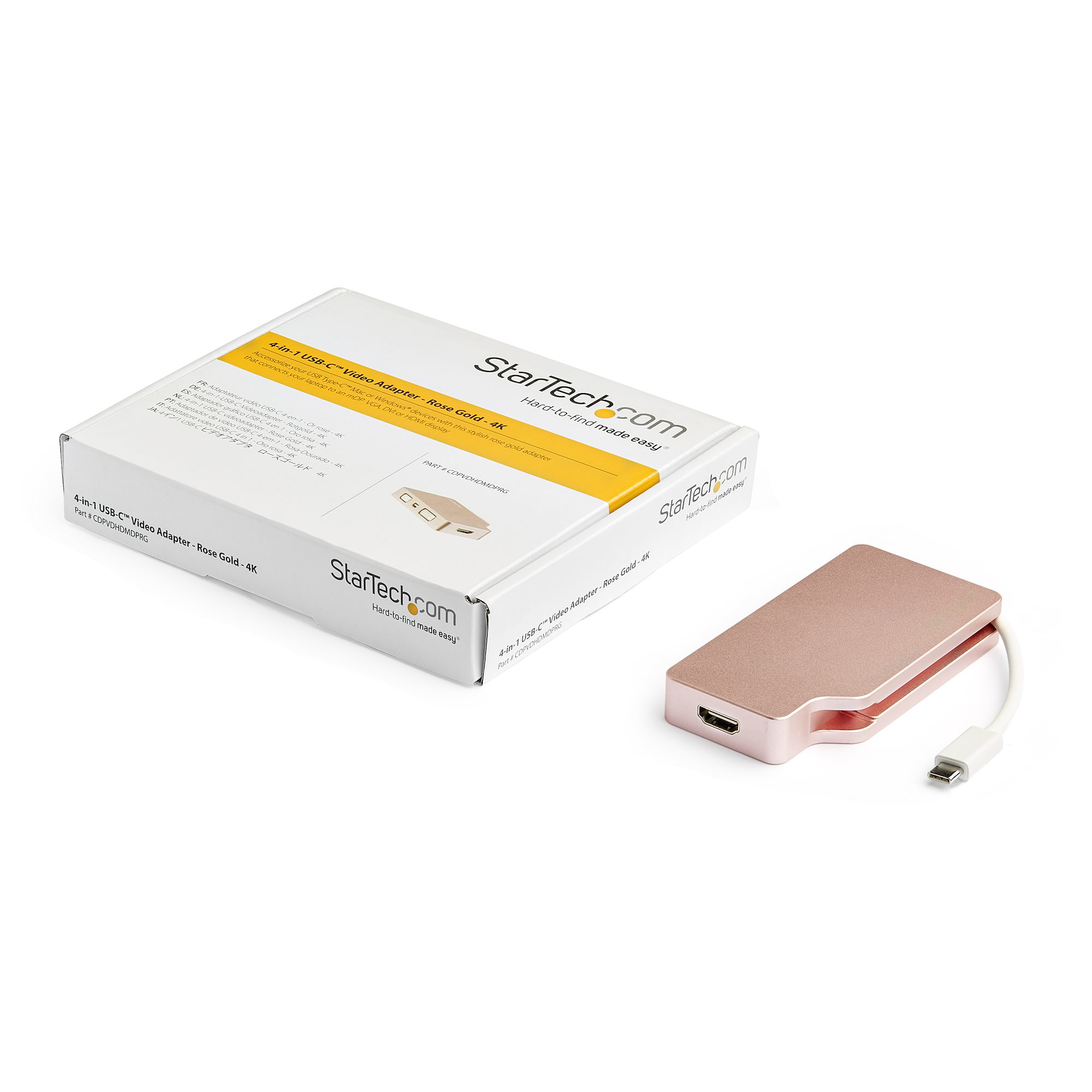

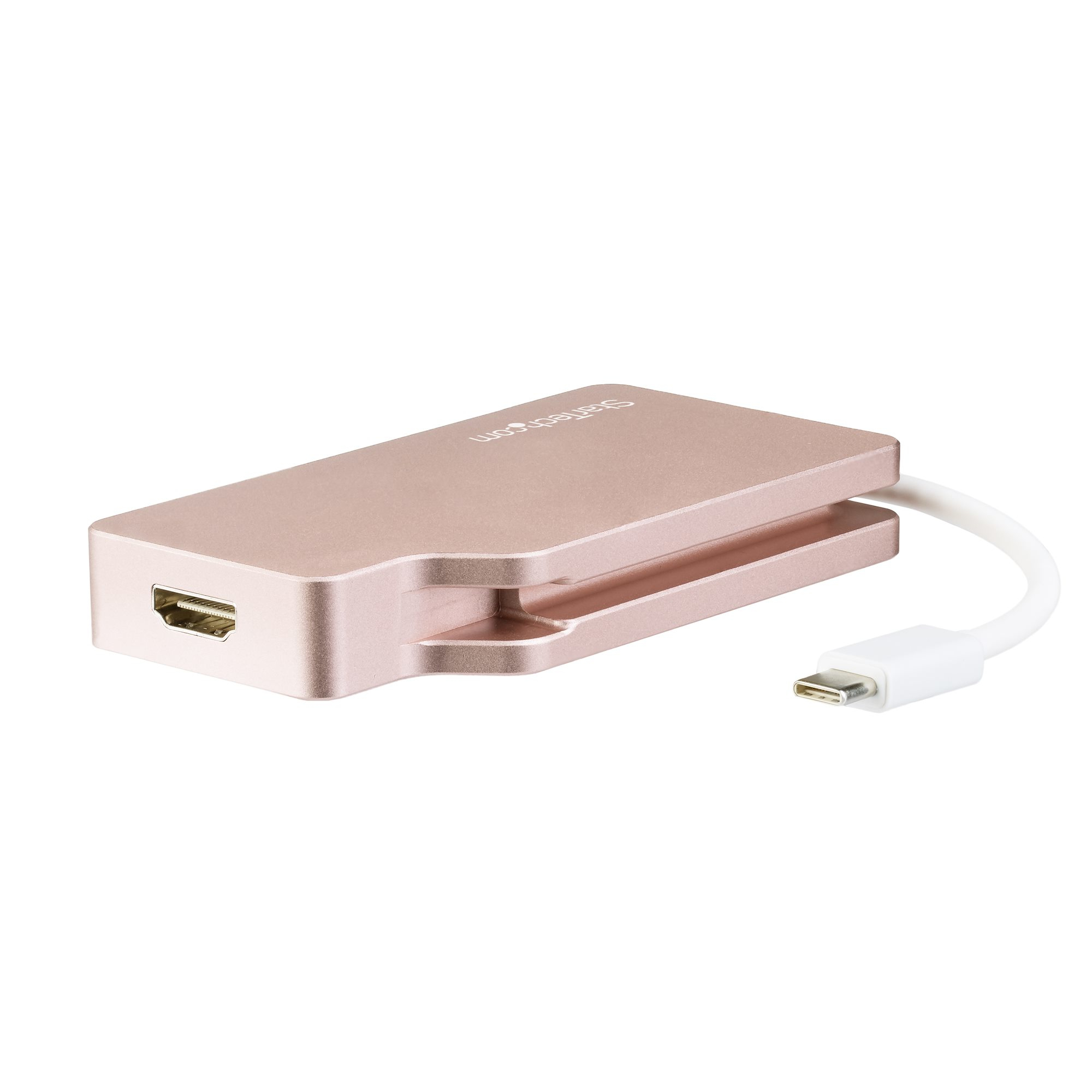

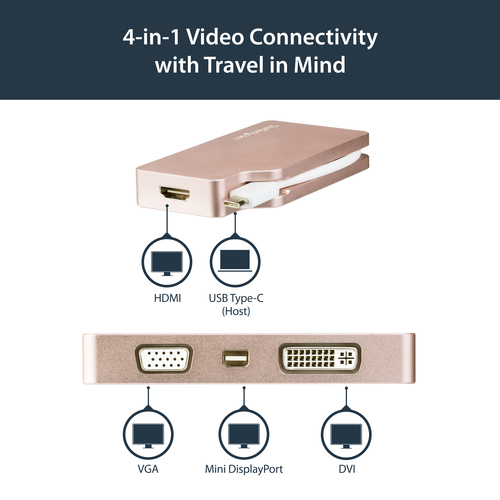

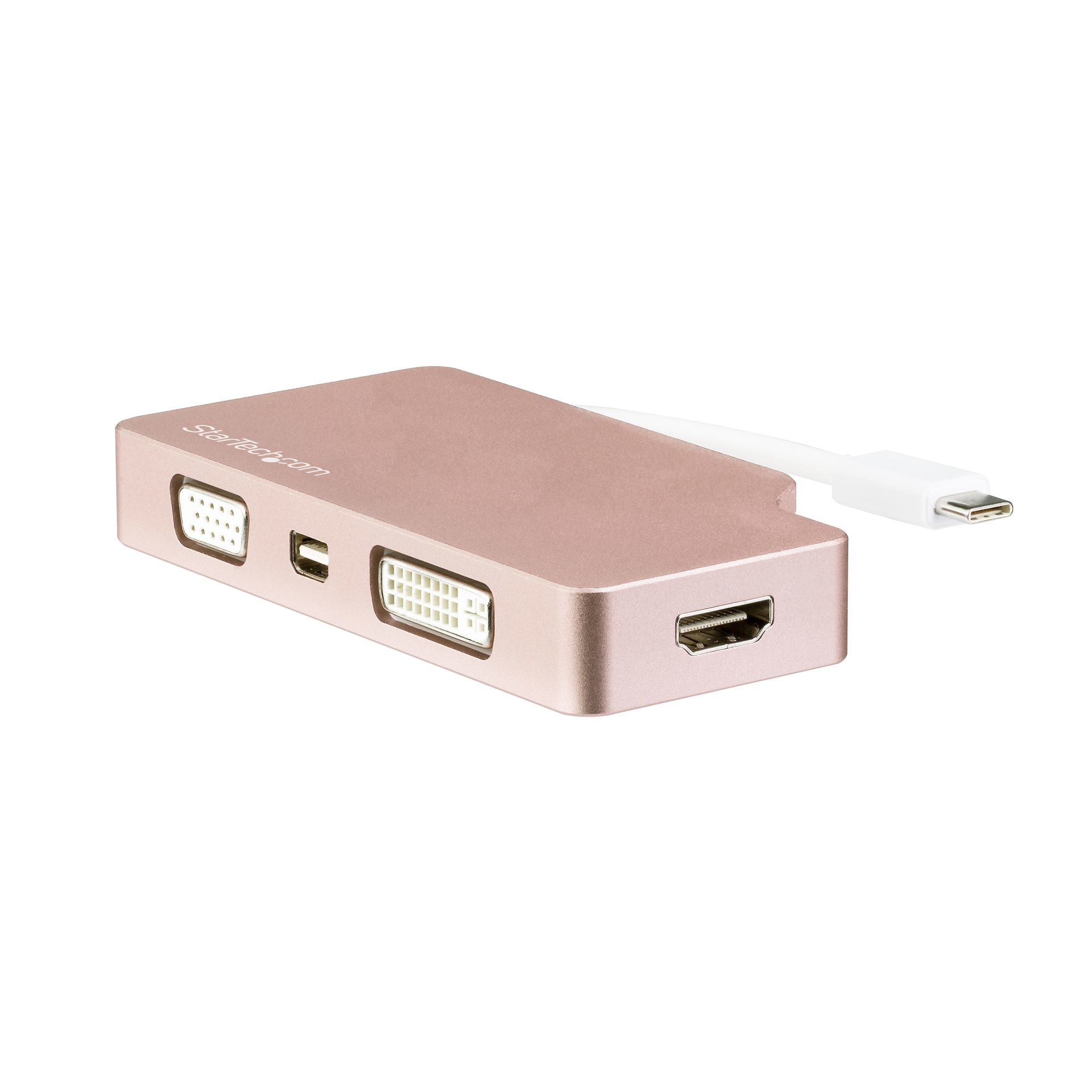

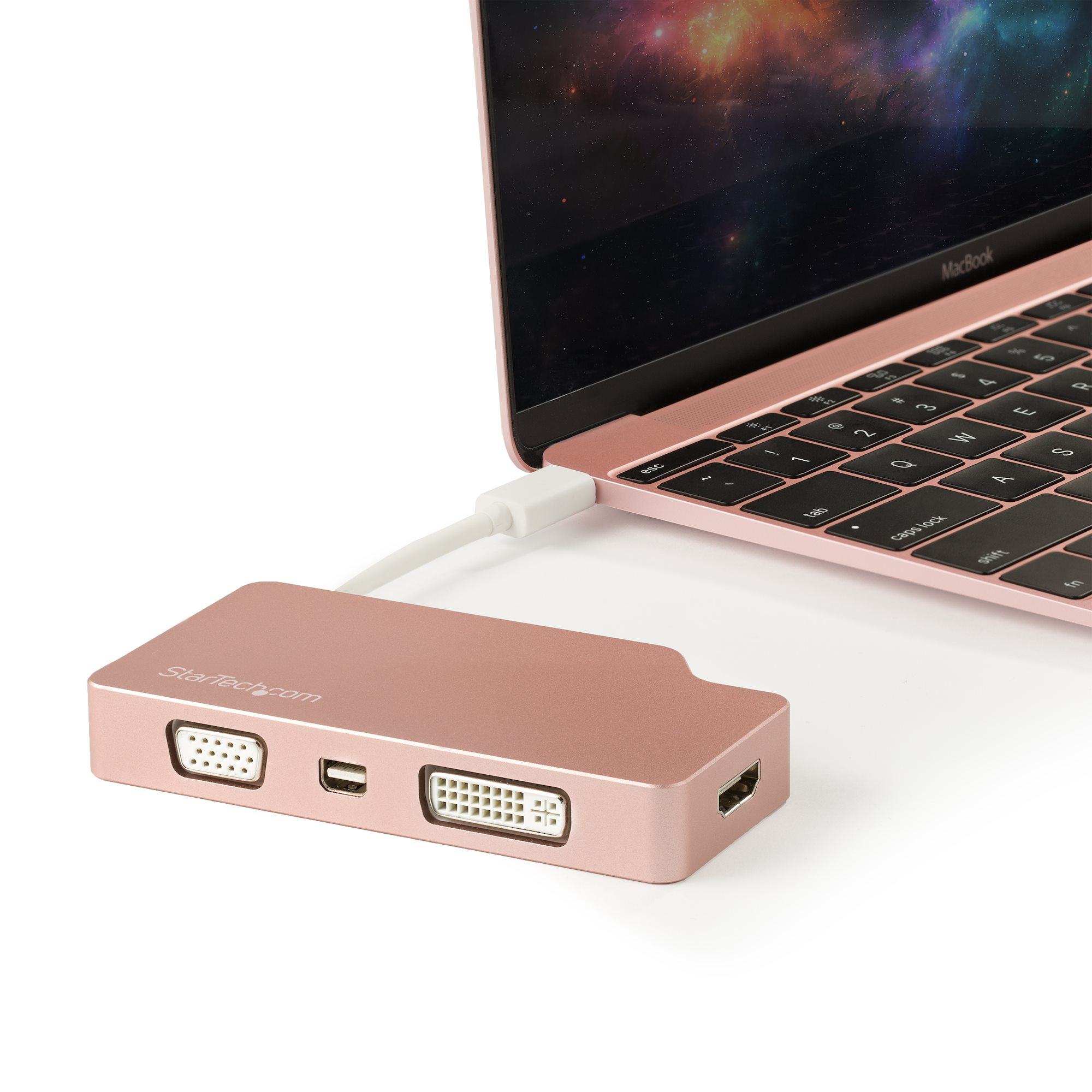

USB C Multiport Video Adapter with HDMI, VGA, Mini DisplayPort or DVI - USB Type C Monitor Adapter to HDMI 1.4 or mDP 1.2 (4K) - VGA or DVI (1080p)
Model CDPVDHDMDPRGEAN 065030878777
39 specifications
- Weight180 g
- ColourRose gold
- USB connector typeUSB Type-C
- Width142 mm
- Operating temperature (T-T)0 - 45 °C
- Compliance certificatesRoHS
Overview
- Weight
- 180 g
- Colour
- Rose gold
- USB connector type
- USB Type-C
- Width
- 142 mm
- Operating temperature (T-T)
- 0 - 45 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- CDPVDHDMDPRG
- Part number
- CDPVDHDMDPRG
- EAN / UPC
- 065030878777
- Also known as
- StarTech.com USB C Multiport Video Adapter with HDMI, VGA, Mini DisplayPort or DVI - USB Type C Monitor Adapter to HDMI 1.4 or mDP 1.2 (4K) - VGA or DVI (1080p)
Specifications
39 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | Yes |
| HDMI output | Yes |
| DisplayPort output | No |
| Mini DisplayPorts quantity | 1 |
| Number of displays supported | 4 |
| VGA (D-Sub) output | Yes |
| DVI connector type | DVI-D |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum analog resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Audio output channels | 7.1 channels |
| Chipset | Cypress - CYPD1120, Cypress - CY7C65210, Parade - PS8348B, Parade - PS171 |
| Certification | CE, FCC, DisplayLink, REACH |
Design
| Specification | Value |
|---|---|
| Product colour | Rose gold |
| Housing material | Aluminium |
| Integrated USB cable | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 142 mm |
| Depth | 169 mm |
| Height | 15 mm |
| Weight | 180 g |
| USB cable length | 0.115 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 105 mm |
| Package depth | 55 mm |
| Package height | 16 mm |
| Package weight | 100 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 70 pc(s) |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 473 mm |
| Master (outer) case height | 331 mm |
| Harmonized System (HS) code | 84733020 |
