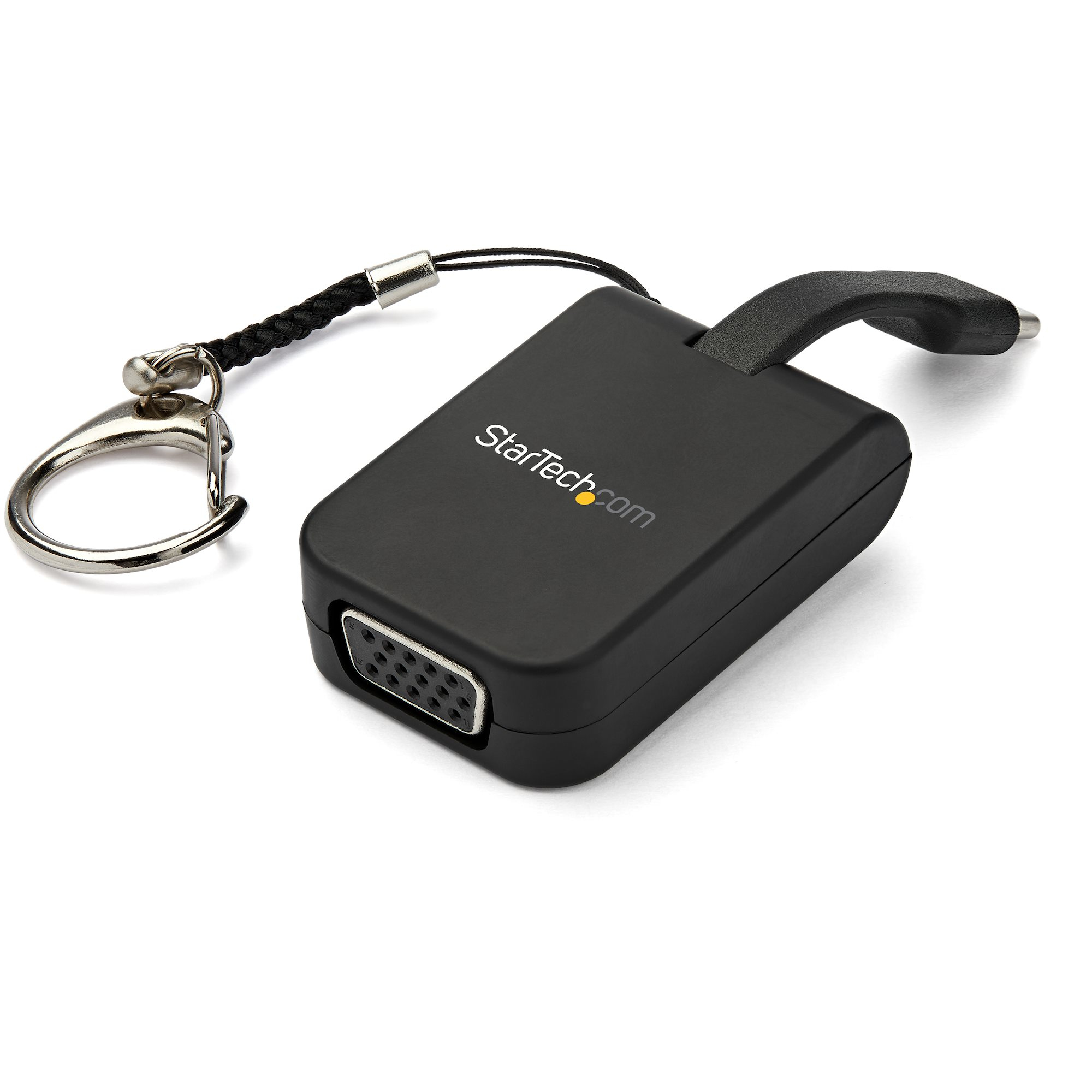

Compact USB C to VGA Adapter - 1080p USB Type-C to VGA Video Display Converter with Keychain Ring - Active USB-C DP Alt Mode to VGA Monitor Dongle
Model CDP2VGAFCEAN 065030884471
30 specifications
- Weight17 g
- ColourBlack
- USB connector typeUSB Type-C
- Width48 mm
- Operating temperature (T-T)0 - 70 °C
- Compliance certificatesRoHS
Overview
- Weight
- 17 g
- Colour
- Black
- USB connector type
- USB Type-C
- Width
- 48 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- CDP2VGAFC
- Part number
- CDP2VGAFC
- EAN / UPC
- 065030884471
- Also known as
- StarTech.com Compact USB C to VGA Adapter - 1080p USB Type-C to VGA Video Display Converter with Keychain Ring - Active USB-C DP Alt Mode to VGA Monitor Dongle
Specifications
30 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | No |
| Number of displays supported | 1 |
| VGA (D-Sub) output | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Chipset | Realtek RTD2169U-CG |
| Certification | REACH, CE, FCC |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 48 mm |
| Depth | 32 mm |
| Height | 14 mm |
| Weight | 17 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 90 mm |
| Package depth | 122 mm |
| Package height | 14 mm |
| Package weight | 21.5 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 400 pc(s) |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 455 mm |
| Master (outer) case height | 270 mm |
| Harmonized System (HS) code | 84733020 |
