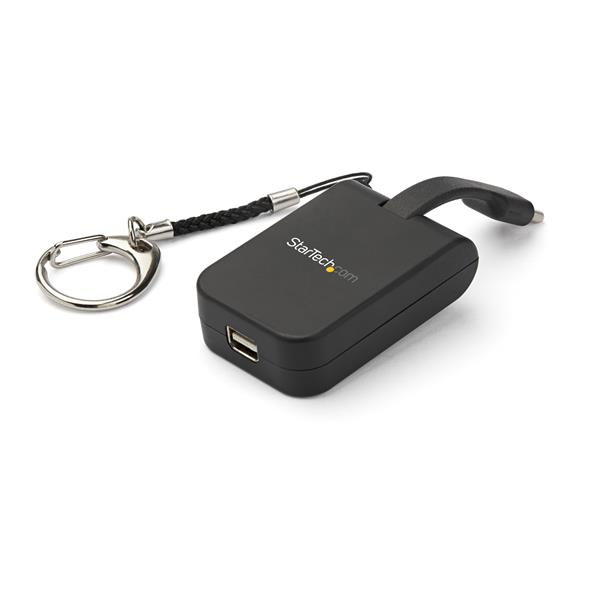

Compact USB C to Mini DisplayPort Adapter - 8K
60Hz/4K USB-C to mDP 1.4 Video Converter w/Keychain Ring - USB Type-C DP Alt Mode (HBR3 HDR DSC) to
Model CDP2MDPFCEAN 065030884495
35 specifications
- Weight18 g
- ColourBlack
- USB connector typeUSB Type-C
- Width31 mm
- Operating temperature (T-T)0 - 70 °C
- Compliance certificatesRoHS
Overview
- Weight
- 18 g
- Colour
- Black
- USB connector type
- USB Type-C
- Width
- 31 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- CDP2MDPFC
- Part number
- CDP2MDPFC
- EAN / UPC
- 065030884495
- Also known as
- StarTech.com Compact USB C to Mini DisplayPort Adapter - 8K 60Hz/4K USB-C to mDP 1.4 Video Converter w/Keychain Ring - USB Type-C DP Alt Mode (HBR3 HDR DSC) to
Specifications
35 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | No |
| High Dynamic Range (HDR) supported | Yes |
| Mini DisplayPorts quantity | 1 |
| Number of displays supported | 1 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 7.1 channels |
| Data transfer rate (max) | 32.4 Gbit/s |
| Certification | REACH, CE, FCC |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 31 mm |
| Depth | 47 mm |
| Height | 13 mm |
| Weight | 18 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 92 mm |
| Package depth | 130 mm |
| Package height | 20 mm |
| Package weight | 22 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 400 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 455 mm |
| Master (outer) case height | 270 mm |
| Harmonized System (HS) code | 84733020 |
