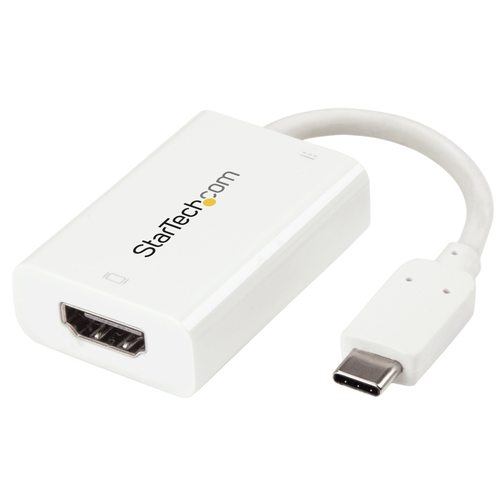

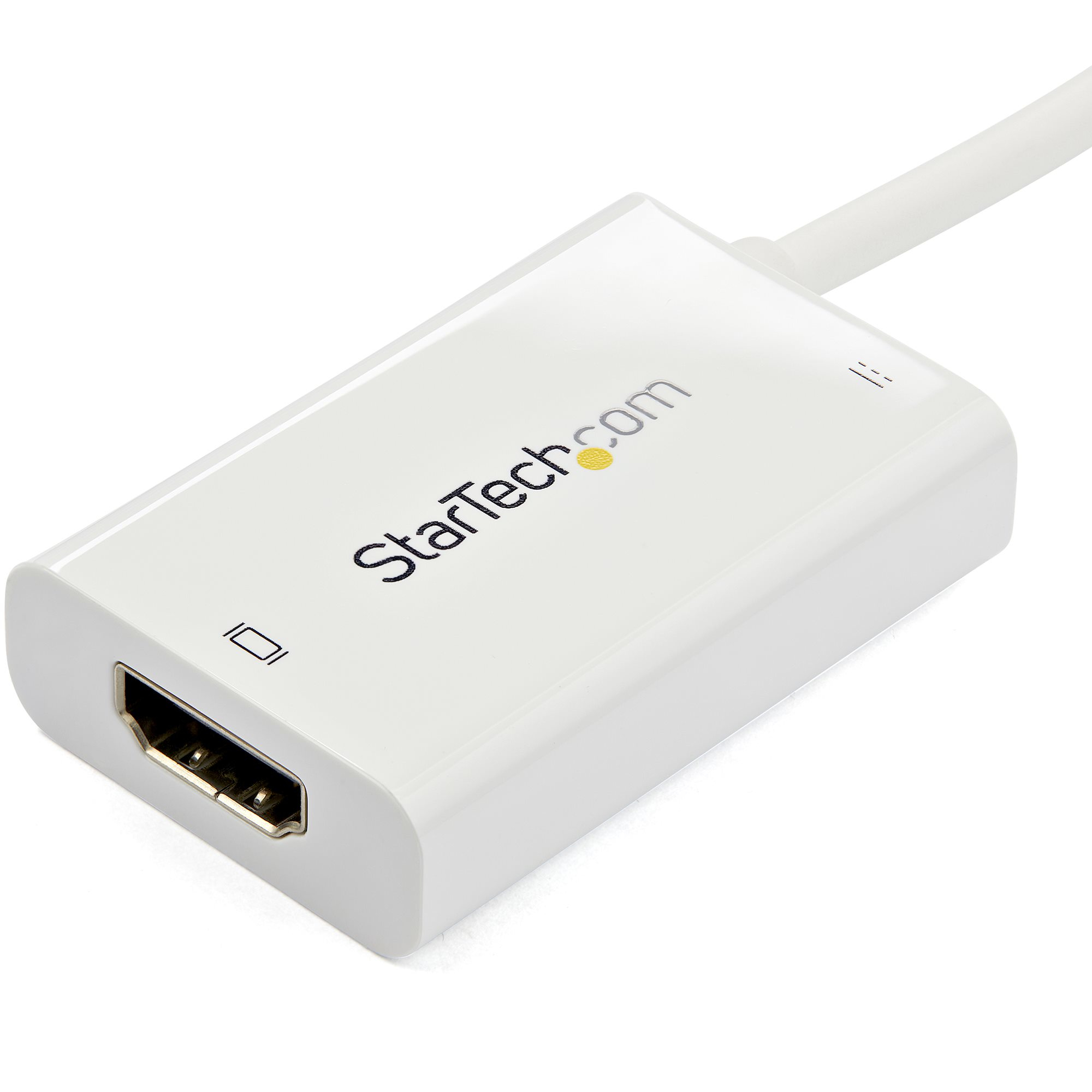

USB C to HDMI 2.0 Adapter with Power Delivery - 4K
60Hz USB Type-C to HDMI Display Video Converter - 60W PD Pass-Through Charging Port - Thunderbol
Model CDP2HDUCPWEAN 065030868938
36 specifications
- Weight22 g
- ColourWhite

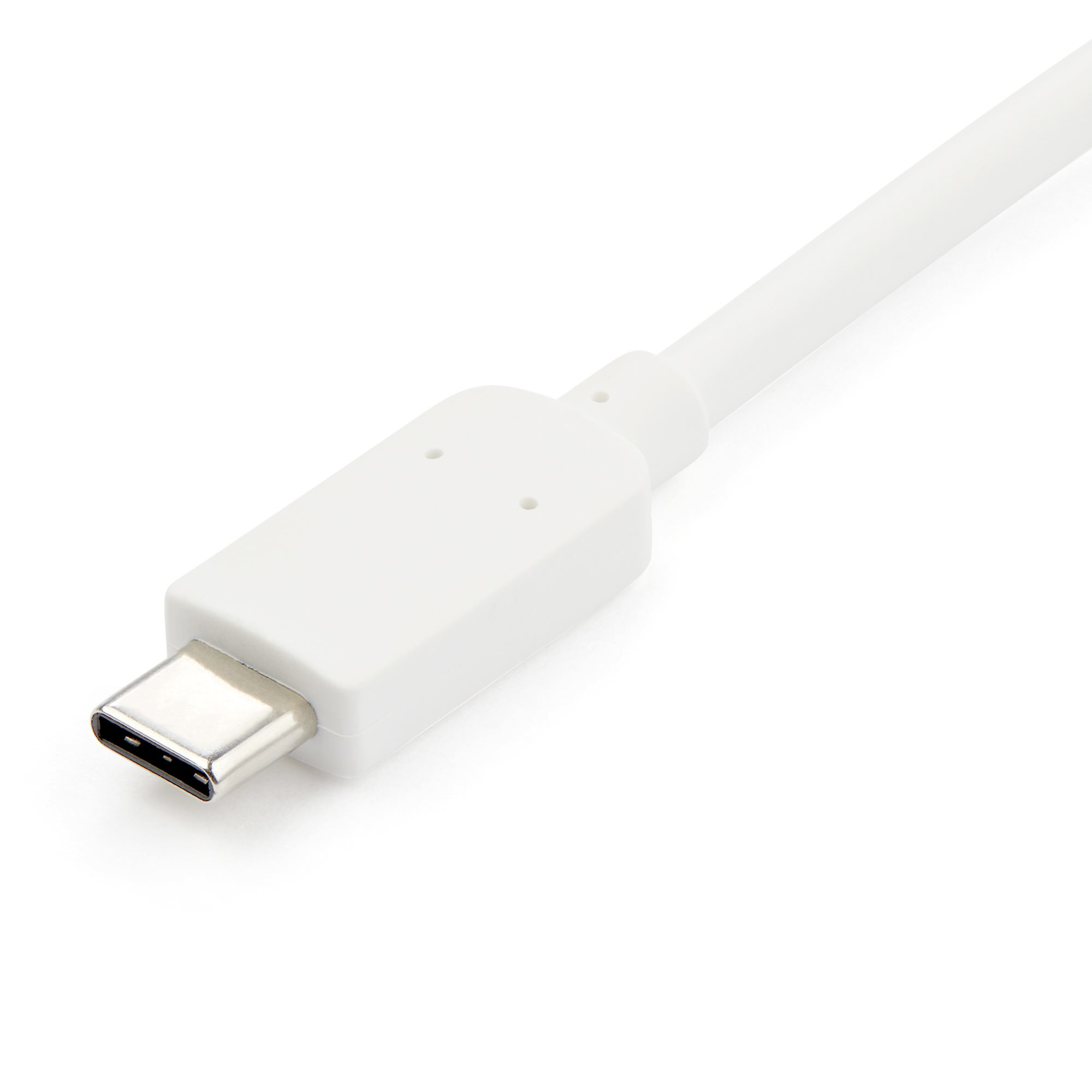

- USB connector typeUSB Type-C
- Width33 mm
- Operating temperature (T-T)0 - 40 °C
- Compliance certificatesCE, RoHS
Overview
- Weight
- 22 g
- Colour
- White
- USB connector type
- USB Type-C
- Width
- 33 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- CDP2HDUCPW
- Part number
- CDP2HDUCPW
- EAN / UPC
- 065030868938
- Also known as
- StarTech.com USB C to HDMI 2.0 Adapter with Power Delivery - 4K 60Hz USB Type-C to HDMI Display Video Converter - 60W PD Pass-Through Charging Port - Thunderbol
Specifications
36 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |

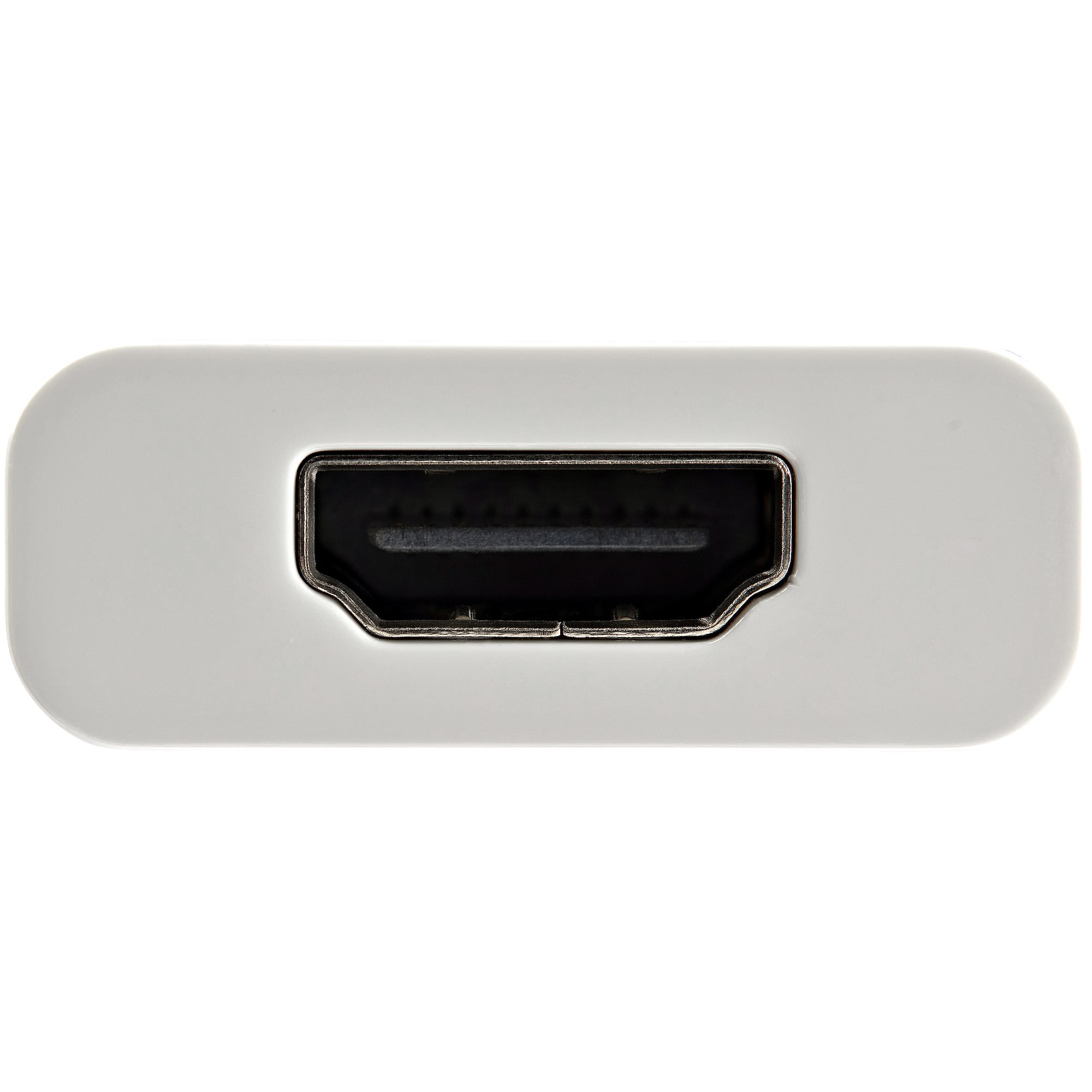

| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 1 |
| HDMI version | 2.0 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 768, 1280 x 800, 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Audio output channels | 7.1 channels |
| Chipset | Parade - PS176, VIA/VLI - VL100 |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Housing material | Plastic |
| Integrated USB cable | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 33 mm |
| Depth | 50 mm |
| Height | 13 mm |
| Weight | 22 g |
| USB cable length | 0.1 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 144 mm |
| Package depth | 175 mm |
| Package height | 31 mm |
| Package weight | 107 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 358 mm |
| Master (outer) case height | 310 mm |
| Harmonized System (HS) code | 84733020 |
