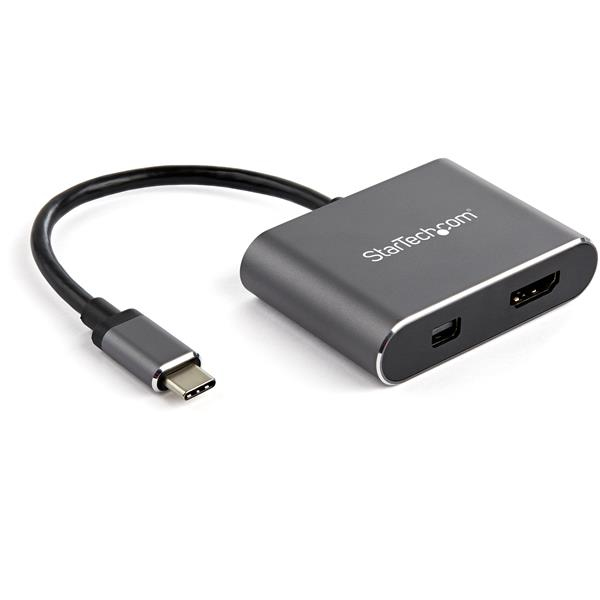

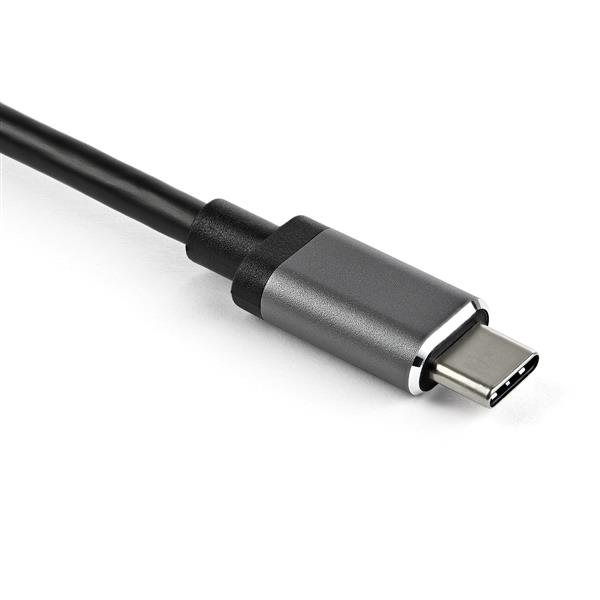

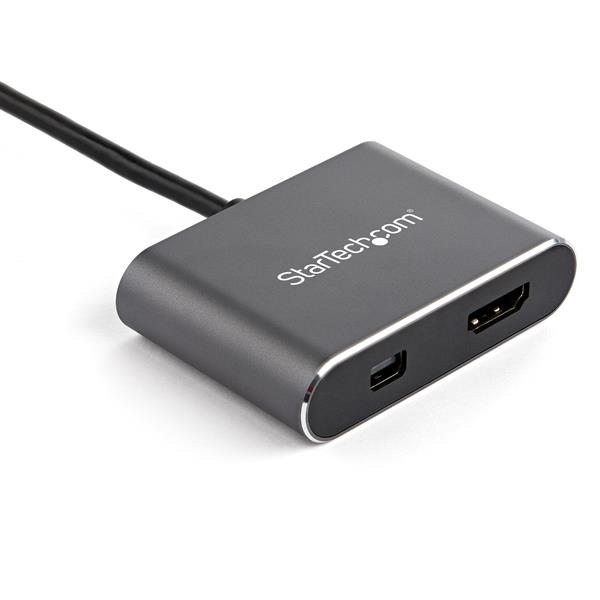

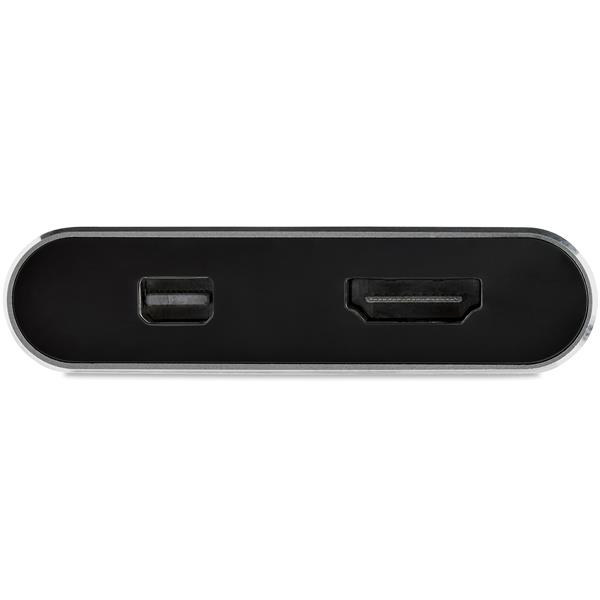

USB C Multiport Video Adapter - 4K
60Hz USB-C to HDMI 2.0 or Mini DisplayPort 1.2 Monitor Adapter - USB Type-C 2-in-1 Display Converter HDMI/MDP HB
Model CDP2HDMDPEAN 065030884365
35 specifications
- Weight48 g
- ColourBlack, Grey
- USB connector typeUSB Type-C
- Width62 mm
- Operating temperature (T-T)0 - 70 °C
- Compliance certificatesRoHS
Overview
- Weight
- 48 g
- Colour
- Black, Grey
- USB connector type
- USB Type-C
- Width
- 62 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- CDP2HDMDP
- Part number
- CDP2HDMDP
- EAN / UPC
- 065030884365
- Also known as
- StarTech.com USB C Multiport Video Adapter - 4K 60Hz USB-C to HDMI 2.0 or Mini DisplayPort 1.2 Monitor Adapter - USB Type-C 2-in-1 Display Converter HDMI/MDP HB
Specifications
35 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Mini DisplayPorts quantity | 1 |
| Number of displays supported | 2 |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 7.1 channels |
| Chipset | Realtek - RTD2142S-CG |
| Certification | CE, FCC, REACH |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Housing material | Aluminium |
| Integrated USB cable | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 62 mm |
| Depth | 205 mm |
| Height | 15 mm |
| Weight | 48 g |
| USB cable length | 0.152 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 70 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case width | 473 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case height | 440 mm |
| Harmonized System (HS) code | 84733020 |
