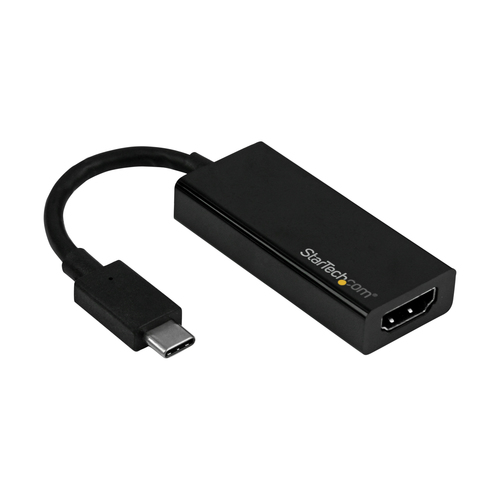

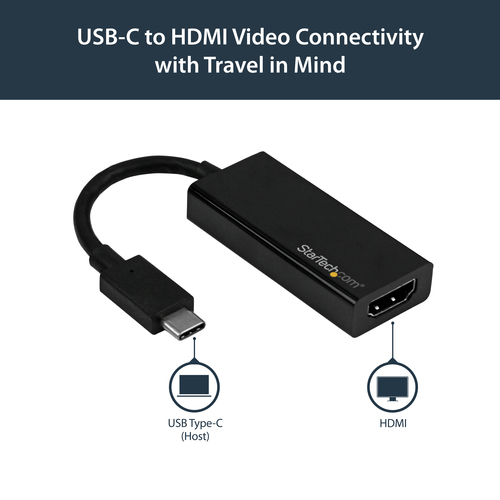

USB-C to HDMI Adapter - 4K
60Hz
Model CDP2HD4K60EAN 065030865135
36 specifications
- Weight23 g
- ColourBlack
- USB connector typeUSB Type-C
- Width25 mm
- Operating temperature (T-T)0 - 40 °C
- Compliance certificatesCE, RoHS
Overview
- Weight
- 23 g
- Colour
- Black
- USB connector type
- USB Type-C
- Width
- 25 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- CDP2HD4K60
- Part number
- CDP2HD4K60
- EAN / UPC
- 065030865135
- Also known as
- StarTech.com USB-C to HDMI Adapter - 4K 60Hz
Specifications
36 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | Yes |
| DisplayPort output | No |
| Number of displays supported | 1 |
| HDMI version | 2.0 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| Supported video modes | 720p, 1080p, 2160p |
| Audio output channels | 7.1 channels |
| Chipset | Parade - PS176, STMicroelectronics - STM32F072CBU6 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Integrated USB cable | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 25 mm |
| Depth | 150 mm |
| Height | 11 mm |
| Weight | 23 g |

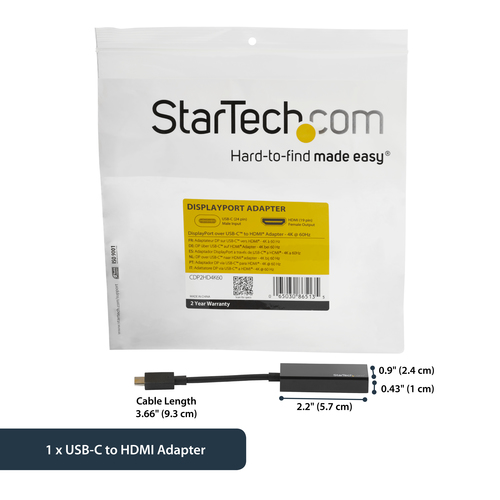

| USB cable length | 0.093 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 25 - 85% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 6 mm |
| Package weight | 32 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 120 pc(s) |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 230 mm |
| Harmonized System (HS) code | 84733020 |
