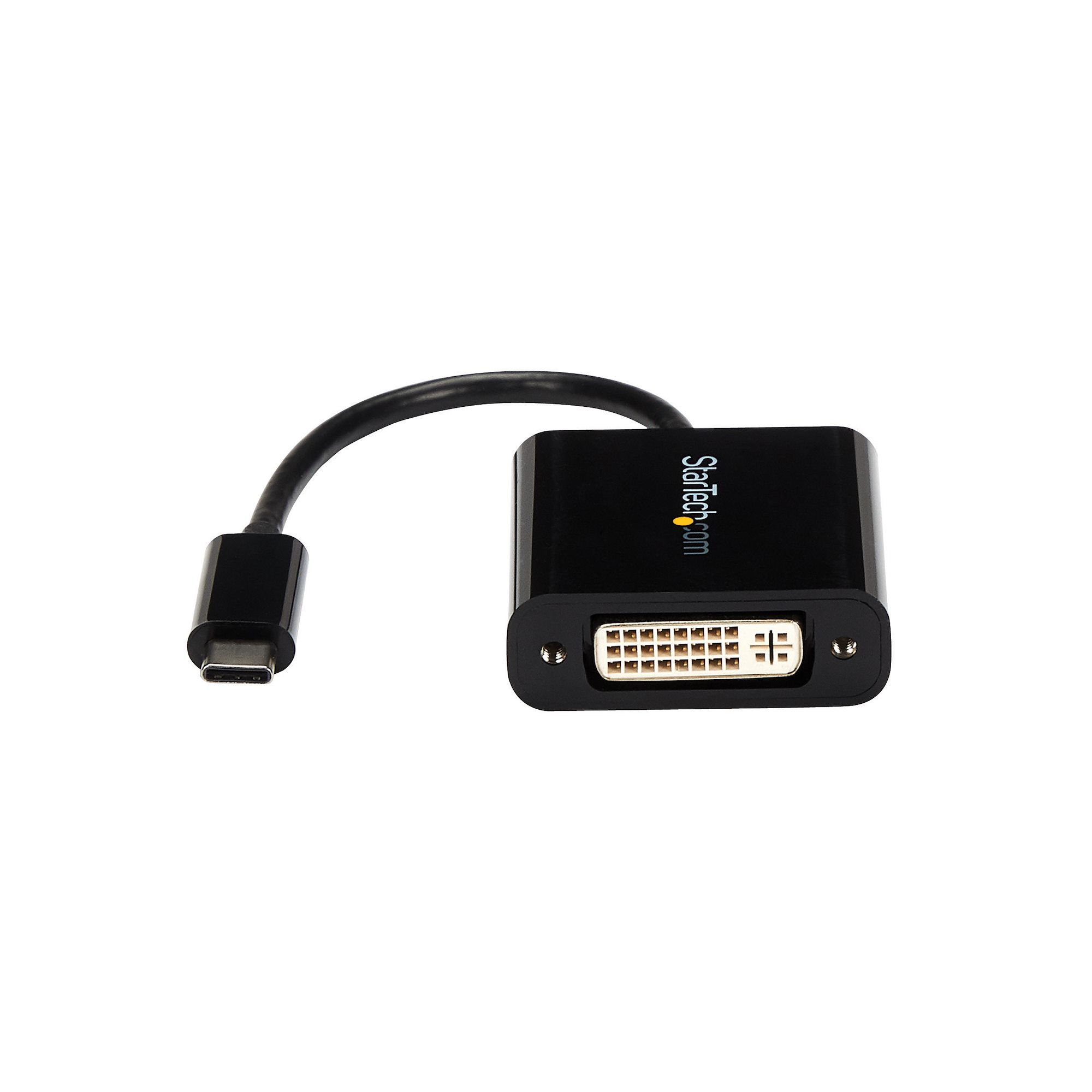

USB C to DVI Adapter - Black
1920x1200 - USB Type C Video Converter for Your DVI D Display/Monitor/Projector - Upgraded Version is CDP2DVIEC
Model CDP2DVIEAN 065030863322
34 specifications
- Weight29 g
- ColourBlack
- USB version3.2 Gen 2 (3.1 Gen 2)
- Width43 mm
- Operating temperature (T-T)0 - 70 °C
- Compliance certificatesRoHS
Overview
- Weight
- 29 g
- Colour
- Black
- USB version
- 3.2 Gen 2 (3.1 Gen 2)
- Width
- 43 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- CDP2DVI
- Part number
- CDP2DVI
- EAN / UPC
- 065030863322, 5706998899958
- Also known as
- StarTech.com USB C to DVI Adapter - Black - 1920x1200 - USB Type C Video Converter for Your DVI D Display/Monitor/Projector - Upgraded Version is CDP2DVIEC
Specifications
34 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | Yes |
| HDMI output | No |
| DisplayPort output | No |
| Number of displays supported | 1 |
| DVI connector type | DVI-I |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 720p, 1080p |
| Chipset | Parade - PS171, NXP - PTN5100 |
| Certification | CE, FCC, REACH |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Integrated USB cable | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 43 mm |
| Depth | 187 mm |
| Height | 15 mm |
| Weight | 29 g |
| USB cable length | 0.014 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 122 mm |
| Package depth | 103 mm |
| Package height | 24 mm |
| Package weight | 34 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case width | 326 mm |
| Master (outer) case length | 506 mm |
| Master (outer) case height | 210 mm |
| Harmonized System (HS) code | 84733020 |
