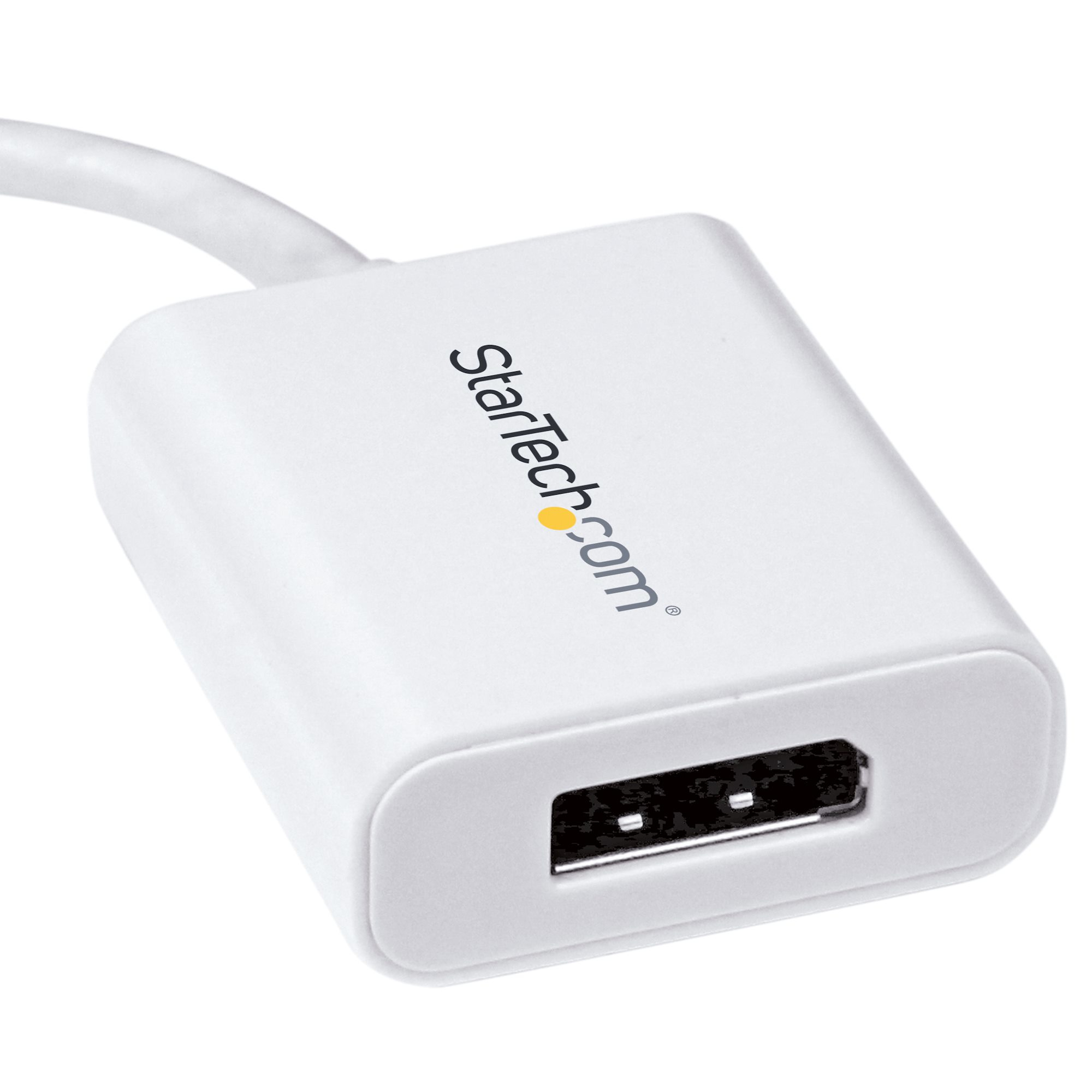

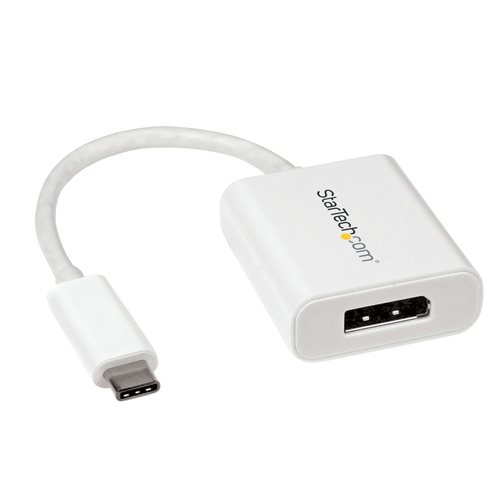

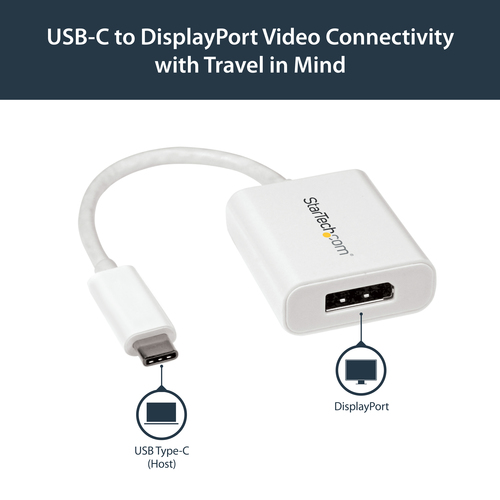

USB C to DisplayPort Adapter - 4K
60Hz/8K 30Hz - USB Type-C to DP 1.4 HBR2 Adapter Dongle - Compact USB-C (DP Alt Mode) Monitor Video Converter - T
Model CDP2DPWEAN 065030863063
29 specifications
- Weight26 g
- ColourWhite

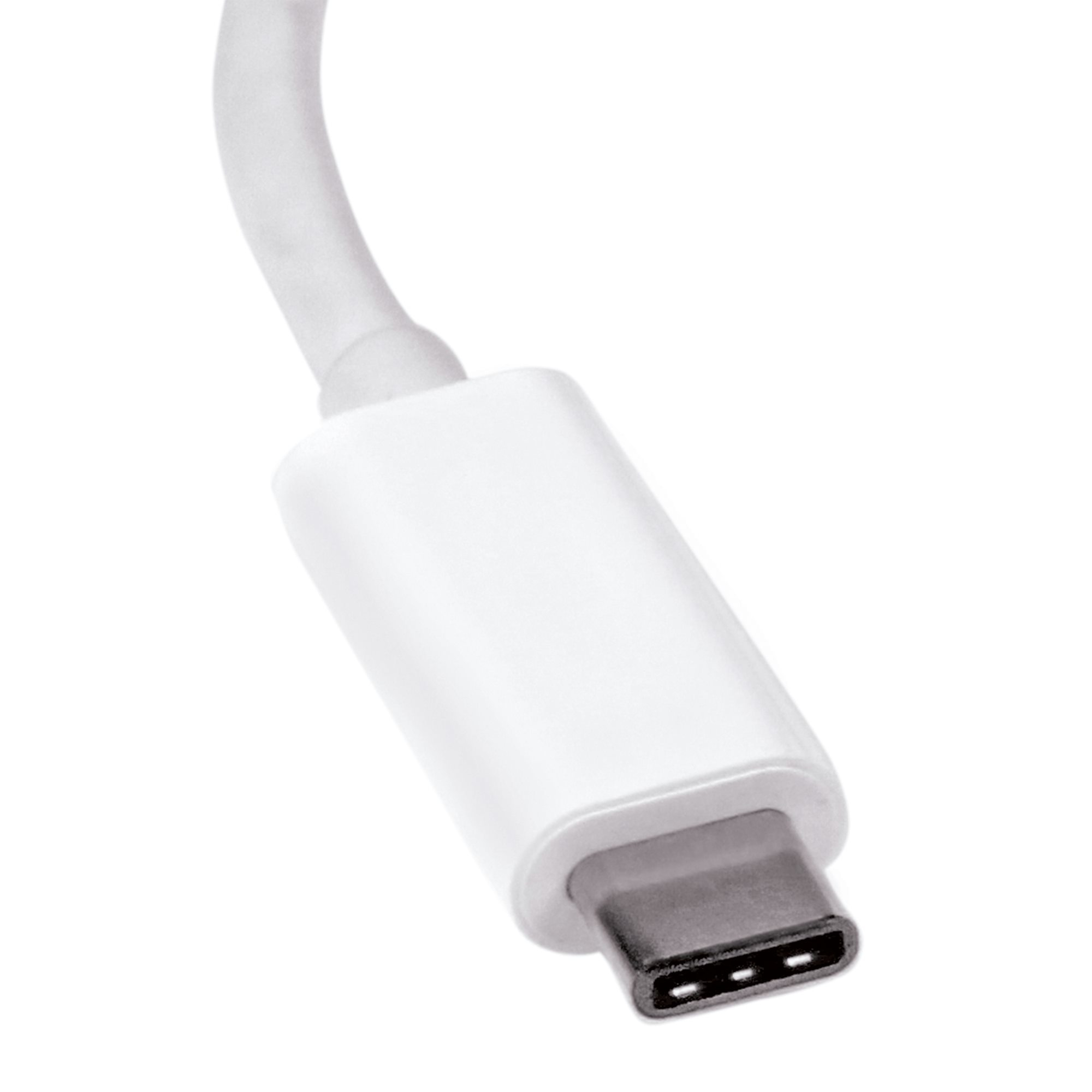

- USB connector typeUSB Type-C
- Width37 mm
- Compliance certificatesRoHS
Overview
- Weight
- 26 g
- Colour
- White
- USB connector type
- USB Type-C
- Width
- 37 mm
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- CDP2DPW
- Part number
- CDP2DPW
- EAN / UPC
- 065030863063
- Also known as
- StarTech.com USB C to DisplayPort Adapter - 4K 60Hz/8K 30Hz - USB Type-C to DP 1.4 HBR2 Adapter Dongle - Compact USB-C (DP Alt Mode) Monitor Video Converter - T
Specifications
29 specifications in 6 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| Maximum resolution | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| Supported video modes | 480p, 720p, 1080p |
| Audio output channels | 7.1 channels |
| Chipset | PERICOM - PI3DPX1203, NXP - PTN5100 |
| Certification | CE, FCC, REACH |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Integrated USB cable | Yes |
Weight & dimensions
| Specification | Value |
|---|---|

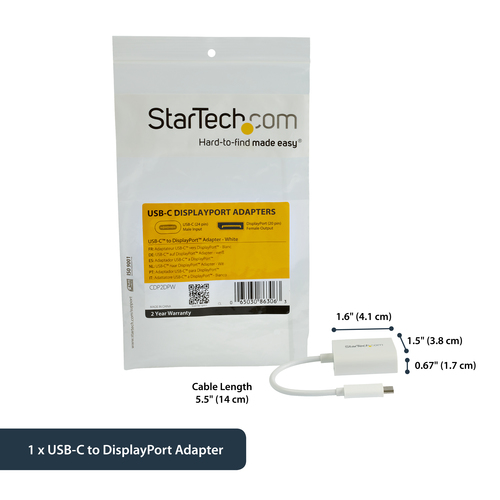

| Width | 37 mm |
| Depth | 180 mm |
| Height | 14 mm |
| Weight | 26 g |
| USB cable length | 0.14 m |
Packaging data
| Specification | Value |
|---|---|
| Package width | 125 mm |
| Package depth | 225 mm |
| Package weight | 28 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case width | 325 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 210 mm |
| Harmonized System (HS) code | 84733020 |
