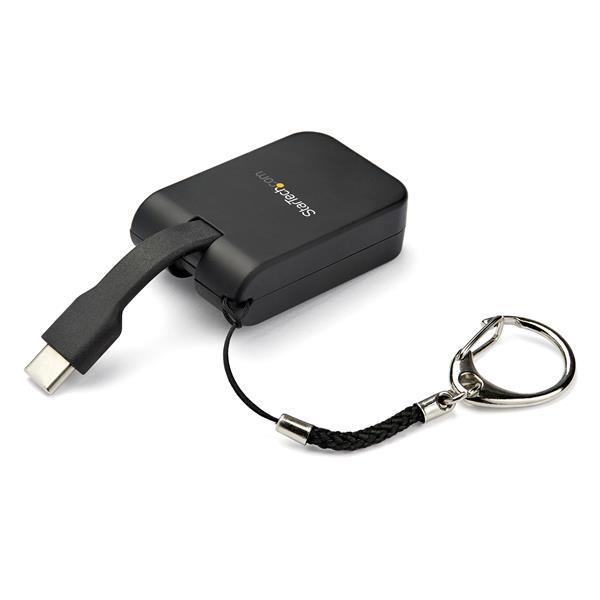

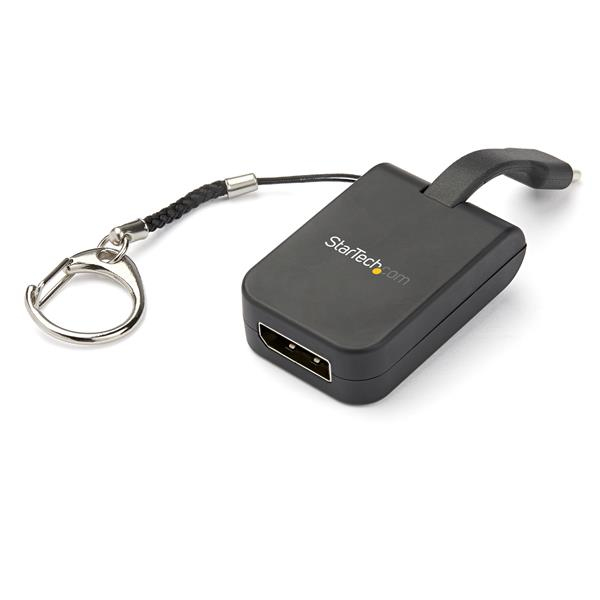

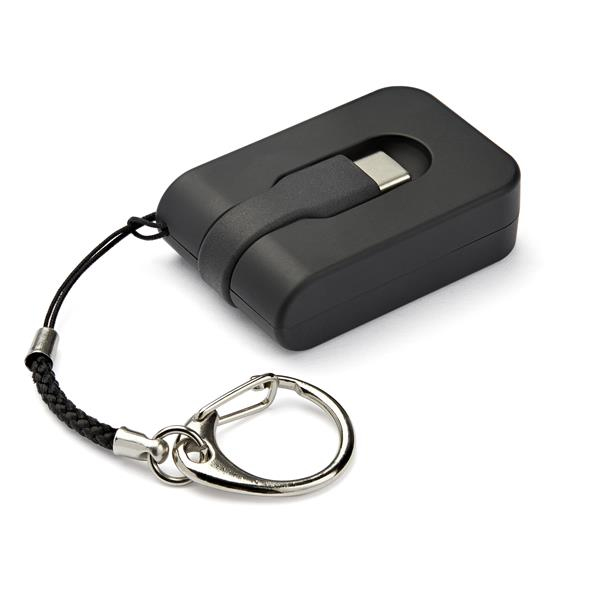

Compact USB C to DisplayPort 1.4 Adapter - 8K
60Hz/4K USB-C to DP Video Converter w/ Keychain Ring - USB Type-C DP Alt Mode (HBR3 HDR DSC) to DP Mo
Model CDP2DPFCEAN 065030884501
37 specifications
- Weight18 g
- ColourBlack
- USB connector typeUSB Type-C
- Mac compatibilityYes
- Width48 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 18 g
- Colour
- Black
- USB connector type
- USB Type-C
- Mac compatibility
- Yes
- Width
- 48 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- CDP2DPFC
- Part number
- CDP2DPFC
- EAN / UPC
- 065030884501
- Also known as
- StarTech.com Compact USB C to DisplayPort 1.4 Adapter - 8K 60Hz/4K USB-C to DP Video Converter w/ Keychain Ring - USB Type-C DP Alt Mode (HBR3 HDR DSC) to DP Mo
Specifications
37 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| HDCP | Yes |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 7.1 channels |
| Data transfer rate (max) | 32.4 Gbit/s |
| Certification | REACH, CE, FCC |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 48 mm |
| Depth | 32 mm |
| Height | 14 mm |
| Weight | 18 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 125 mm |
| Package depth | 90 mm |
| Package height | 20 mm |
| Package weight | 21.5 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 400 pc(s) |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 355 mm |
| Master (outer) case height | 270 mm |
| Harmonized System (HS) code | 84733020 |
