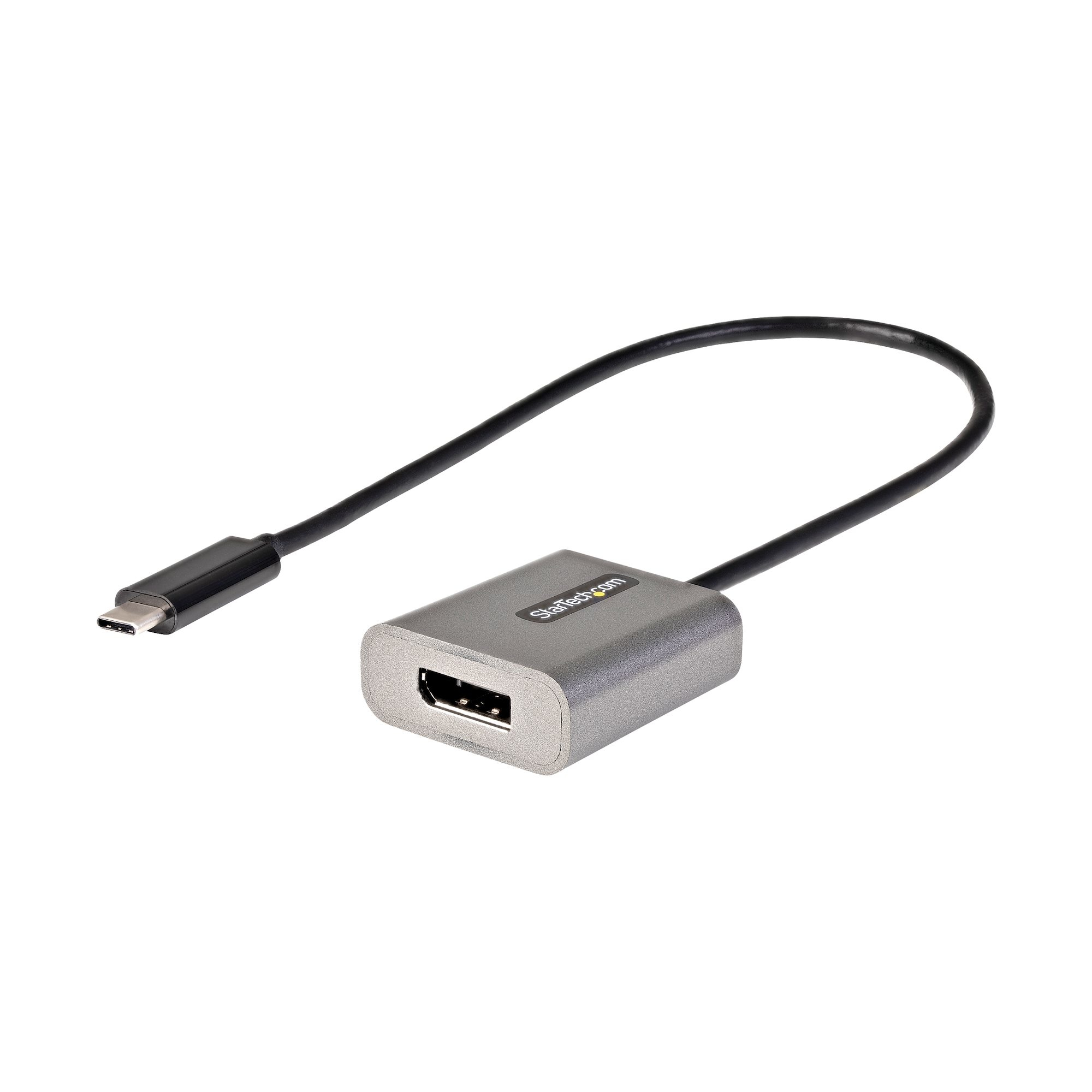

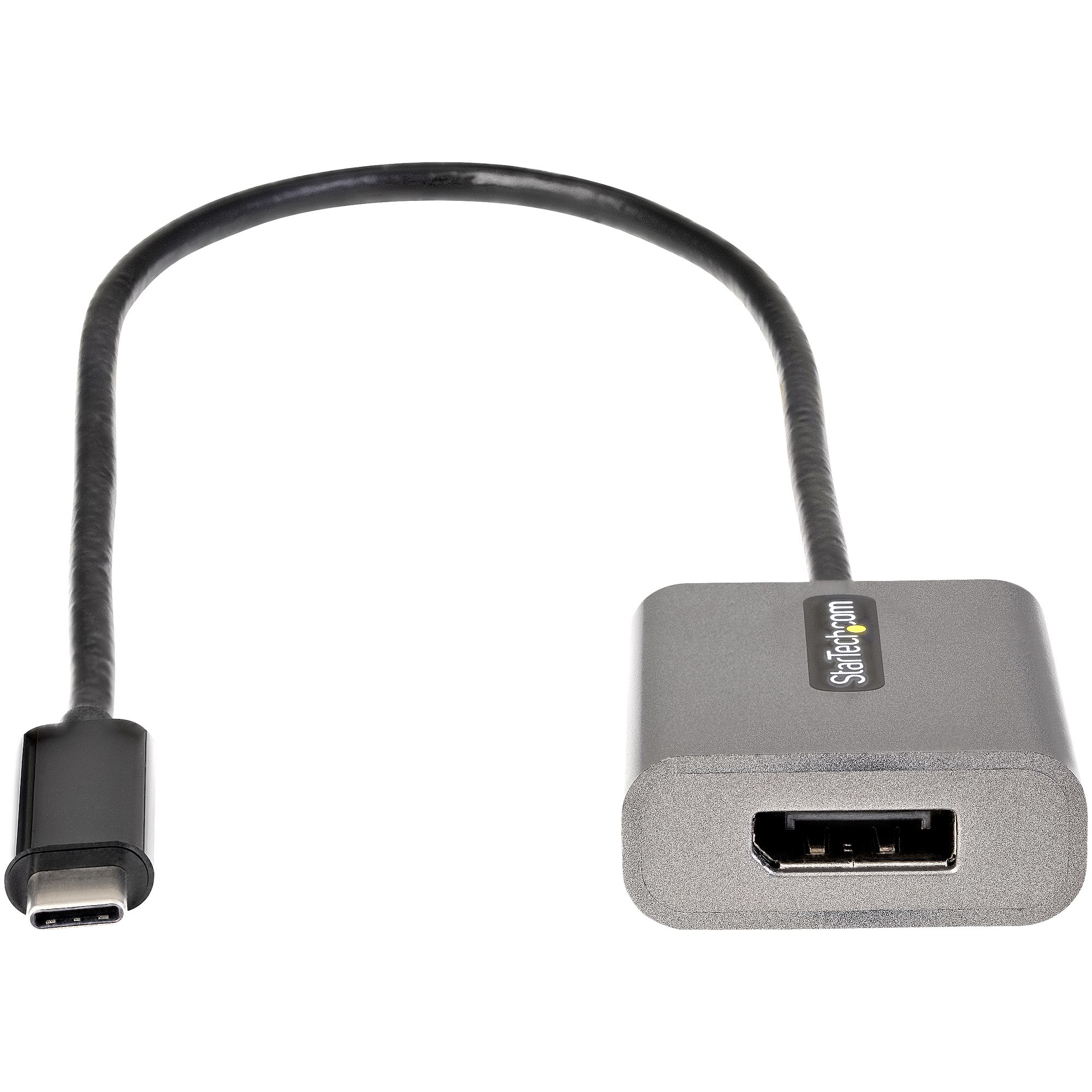

USB C to DisplayPort Adapter - 8K/4K
60Hz USB-C to DisplayPort 1.4 Adapter Dongle - USB Type-C to DP Monitor Video Converter - Works w/Thunderbolt
Model CDP2DPECEAN 065030888851
36 specifications
- Weight26 g
- ColourBlack, Grey
- USB connector typeUSB Type-C
- Width38 mm
- Operating temperature (T-T)0 - 45 °C
- Compliance certificatesCE, RoHS
Overview
- Weight
- 26 g
- Colour
- Black, Grey
- USB connector type
- USB Type-C
- Width
- 38 mm
- Operating temperature (T-T)
- 0 - 45 °C
- Compliance certificates
- CE, RoHS
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- CDP2DPEC
- Part number
- CDP2DPEC
- EAN / UPC
- 065030888851
- Also known as
- StarTech.com USB C to DisplayPort Adapter - 8K/4K 60Hz USB-C to DisplayPort 1.4 Adapter Dongle - USB Type-C to DP Monitor Video Converter - Works w/Thunderbolt
Specifications
36 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| DisplayPorts quantity | 1 |
| Number of displays supported | 1 |
| HDCP | Yes |
| DisplayPort version | 1.4 |

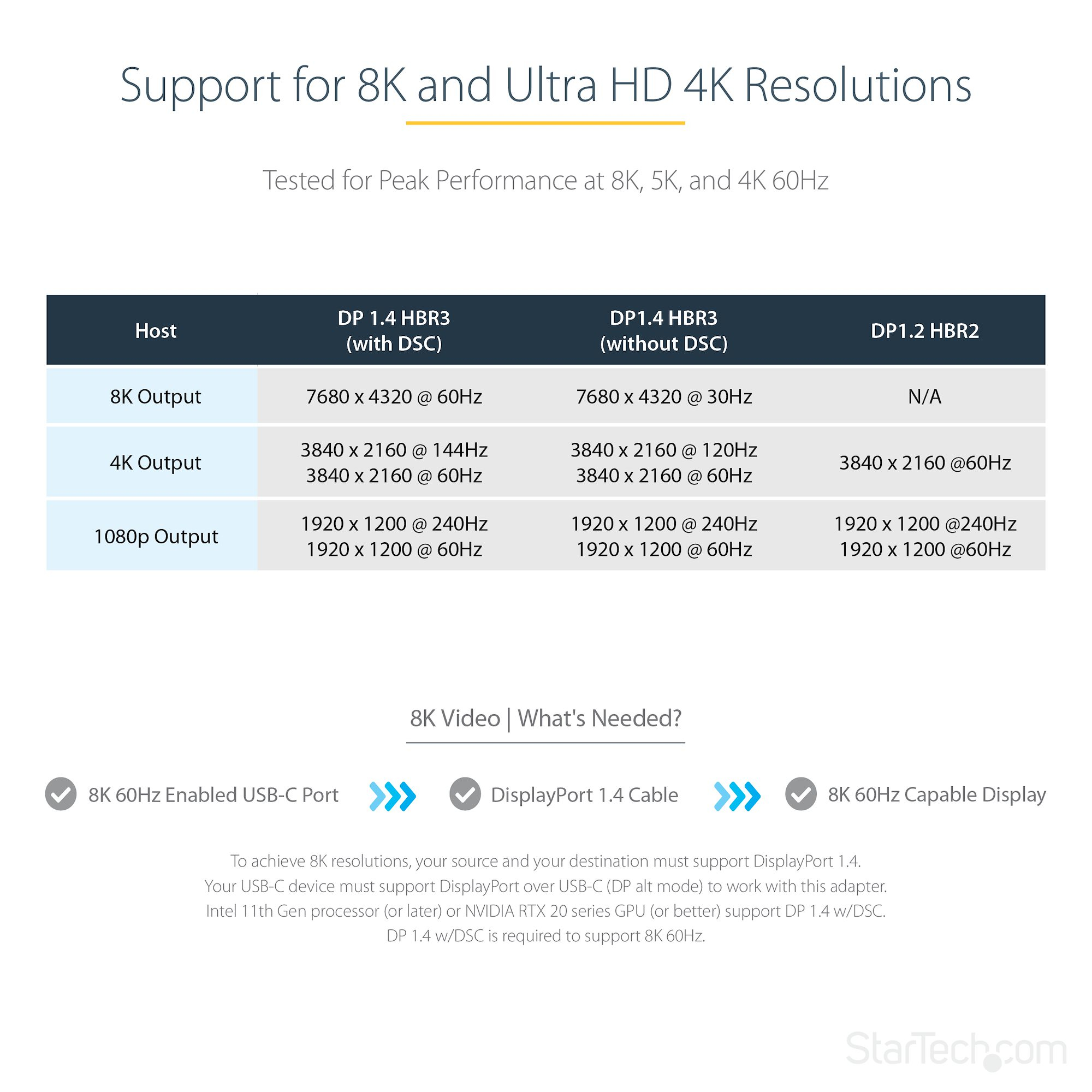

| Maximum resolution | 7680 x 4320 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 2.0 channels |
| Chipset | VL103 |
| Data transfer rate (max) | 32.4 Gbit/s |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Housing material | Plastic |
| Integrated USB cable | Yes |

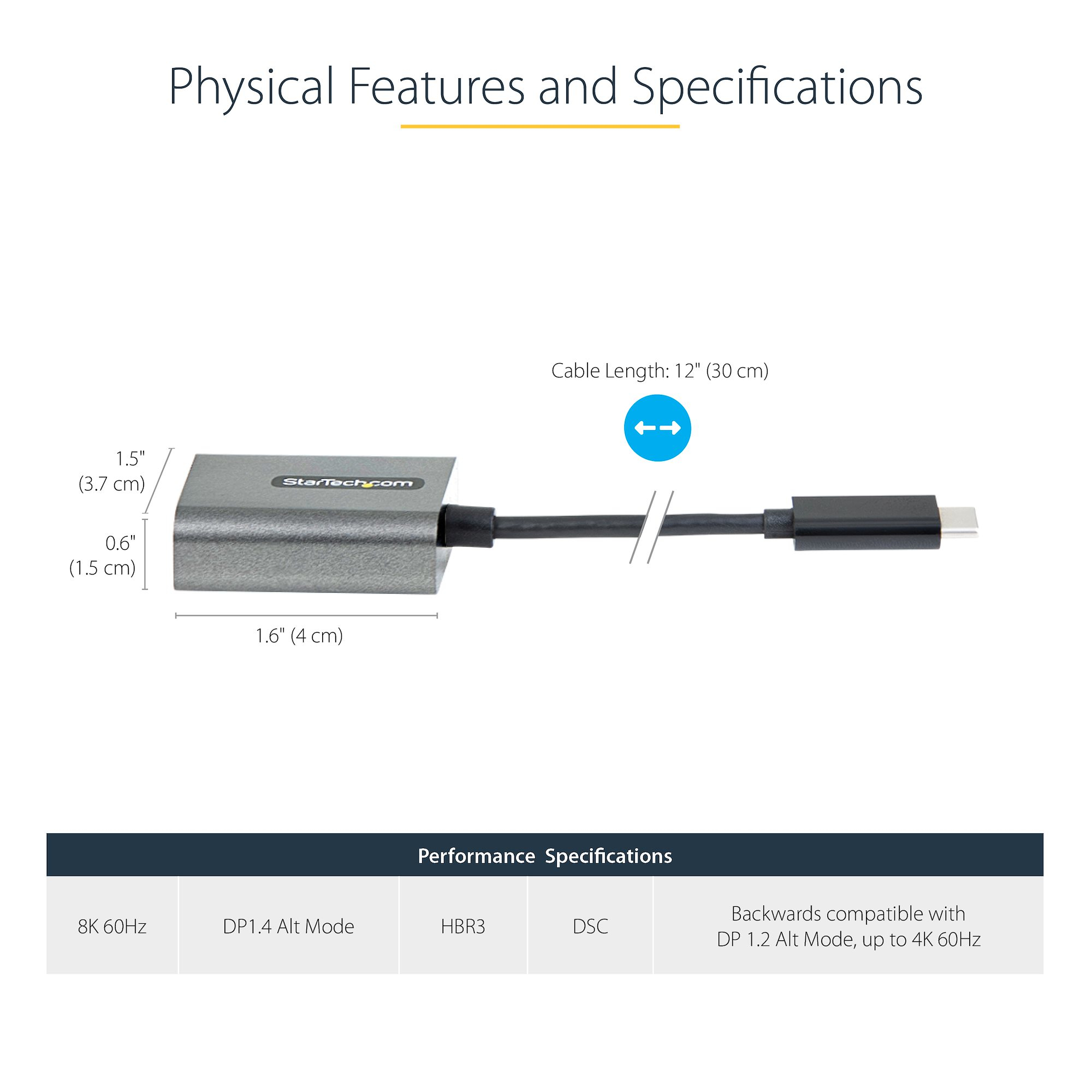

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 38 mm |
| Depth | 390 mm |
| Height | 15 mm |
| Weight | 26 g |
| USB cable length | 0.3 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 125 mm |
| Package depth | 173 mm |
| Package height | 24 mm |
| Package weight | 32 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 220 mm |
| Harmonized System (HS) code | 84733020 |
