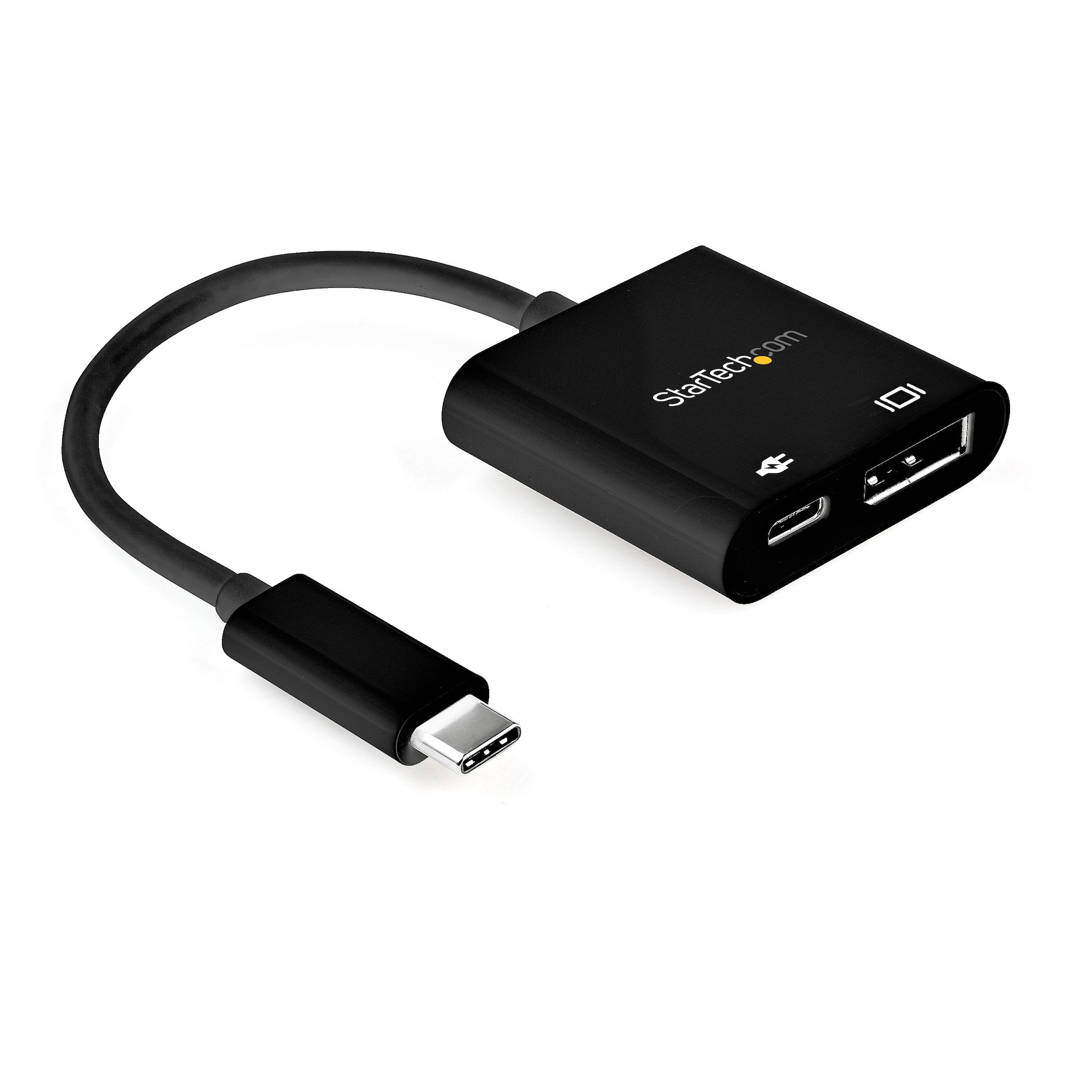

USB C to DisplayPort Adapter with Power Delivery - 8K
60Hz /4K 120Hz USB Type C to DP 1.4 Video Converter w/ 60W PD Pass-Through Charging - HBR3 -
Model CDP2DP14UCPBEAN 065030883641
39 specifications
- Weight22 g
- ColourBlack
- USB connector typeUSB Type-C
- Mac compatibilityYes
- Width40 mm
- Operating temperature (T-T)5 - 45 °C
Overview
- Weight
- 22 g
- Colour
- Black
- USB connector type
- USB Type-C
- Mac compatibility
- Yes
- Width
- 40 mm
- Operating temperature (T-T)
- 5 - 45 °C
- Brand
- StarTech.com
- Category
- USB Graphics Adapter
- Model
- CDP2DP14UCPB
- Part number
- CDP2DP14UCPB
- EAN / UPC
- 065030883641
- Also known as
- StarTech.com USB C to DisplayPort Adapter with Power Delivery - 8K 60Hz /4K 120Hz USB Type C to DP 1.4 Video Converter w/ 60W PD Pass-Through Charging - HBR3 -
Specifications
39 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| USB connector type | USB Type-C |
| USB connector gender | Male |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160, 7680 x 4320 |
| Audio output channels | 7.1 channels |
| Chipset | Parade PS8468, VIA VL102 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Integrated USB cable | Yes |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windo |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 40 mm |
| Depth | 43 mm |
| Height | 11.4 mm |
| Weight | 22 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 128 mm |
| Package depth | 220 mm |
| Package height | 15 mm |
| Package weight | 26 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 210 mm |
| Harmonized System (HS) code | 84733020 |
